168 Chapter 6

Replacement Procedure

Front Panel Removal

Tools required

• TORX screwdriver, T10, T15, and T20

• Flat edge screwdriver

Procedure

Refer to Figure 6-2 for this procedure.

Step 1. Remove the outer cover as described in “Outer Cover Removal” on page 167.

Step 2. Remove the top trim (item 1) using a flat edge driver.

Step 3. Remove the seven TORX T15 screws (item 2 ) fastening front panel.

Step 4. Release the cable (item 3) from the cable clamp (item 4).

Step 5. Release the two cable (item 6) from the cable clamp (item 5).

Step 6. Gradually push the front panel assembly towards the outside.

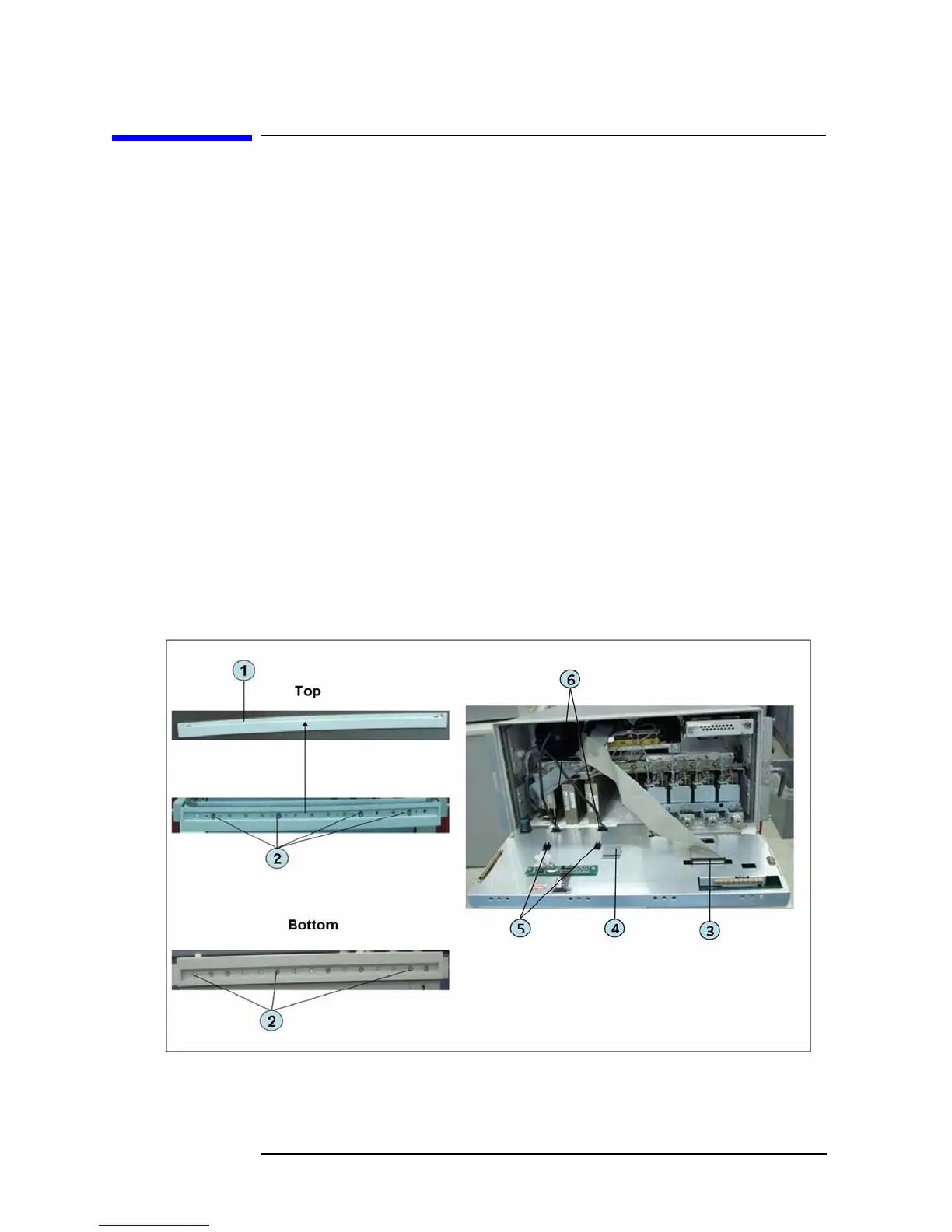

Figure 6-2 Front Panel Removal
