Agilent Technologies E5071C ENA - PCA DC Bias and Oven Assembly

Chapter 5 149
Replaceable Parts
Replaceable Parts List
5. Replaceable Parts
PCA DC Bias and Oven Assembly

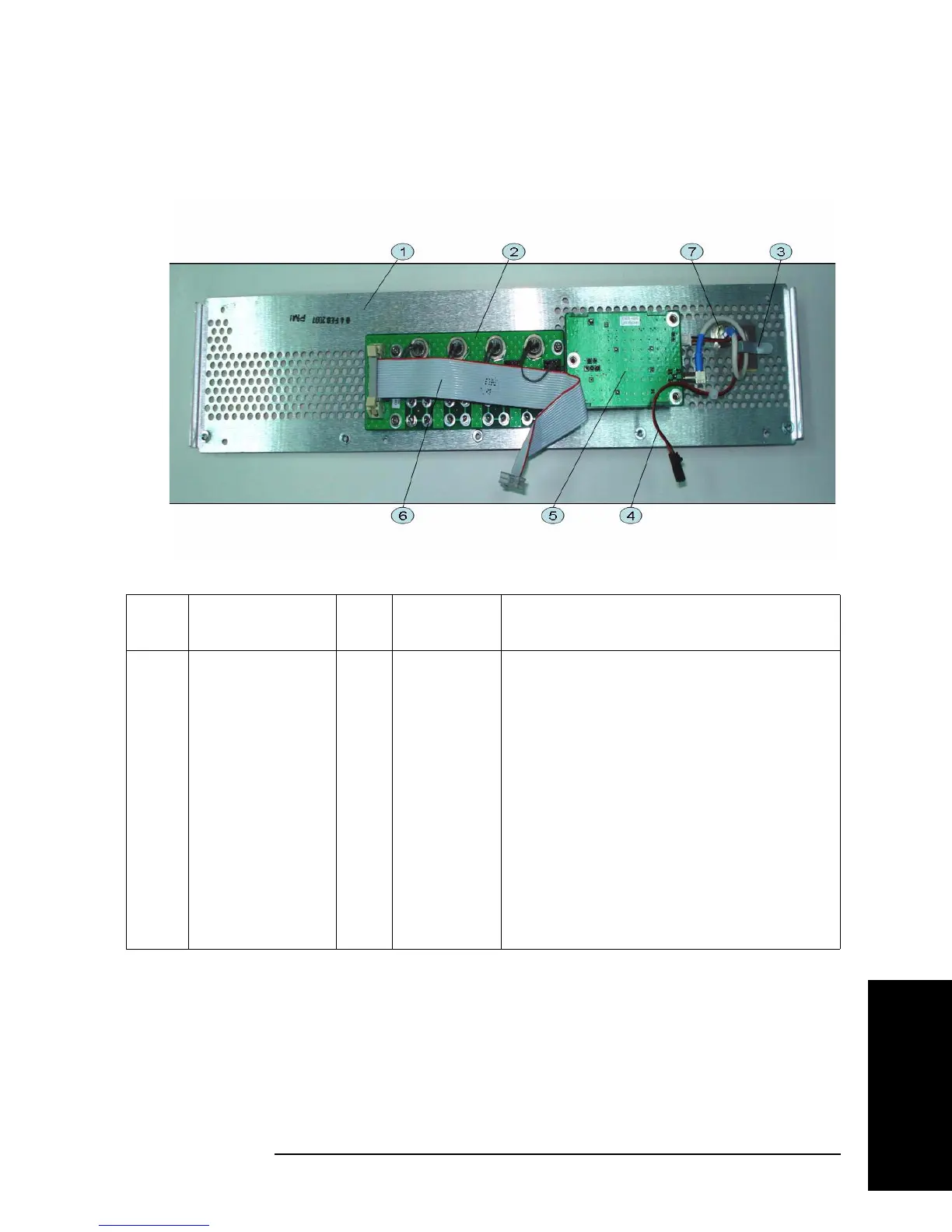

Figure 5-32 PCA DC Bias and Oven Assembly
Table 5-34 PCA DC Bias and Oven Assembly
Ref.
Desig.
Agilent Part
Number
Qty. Abbreviation Description
1 E5071-00200 1 PANEL REAR
2 E5070-66657 (A57) 1 DCB PCA DC BIAS 2-PORT (Opt.2x5)
E5070-66658 (A58) 1 PCA DC BIAS 4-PORT (Opt.4x5)
3 1400-1391 1 CLAMP CABLE (Opt.1E5)
4 E5071-61602 1 WIRE ASSY (Opt.1E5)
5 E5071-66605 (A5) 1 OCXO REFERENCE OVEN PCA (Opt.1E5)
6 E5070-61616 1 FLAT CBL ASSY
7 43521-61622 1 RF CABLE ASSY
8 1250-1859 1 ADAPTER COAXIAL RIGHT ANGLE BNC (m)
- BNC (m)
