Agilent Technologies E5071C ENA - Replacement Procedure

Chapter 6 225
Replacement Procedure
Fan Replacement
6. Replacement Procedure

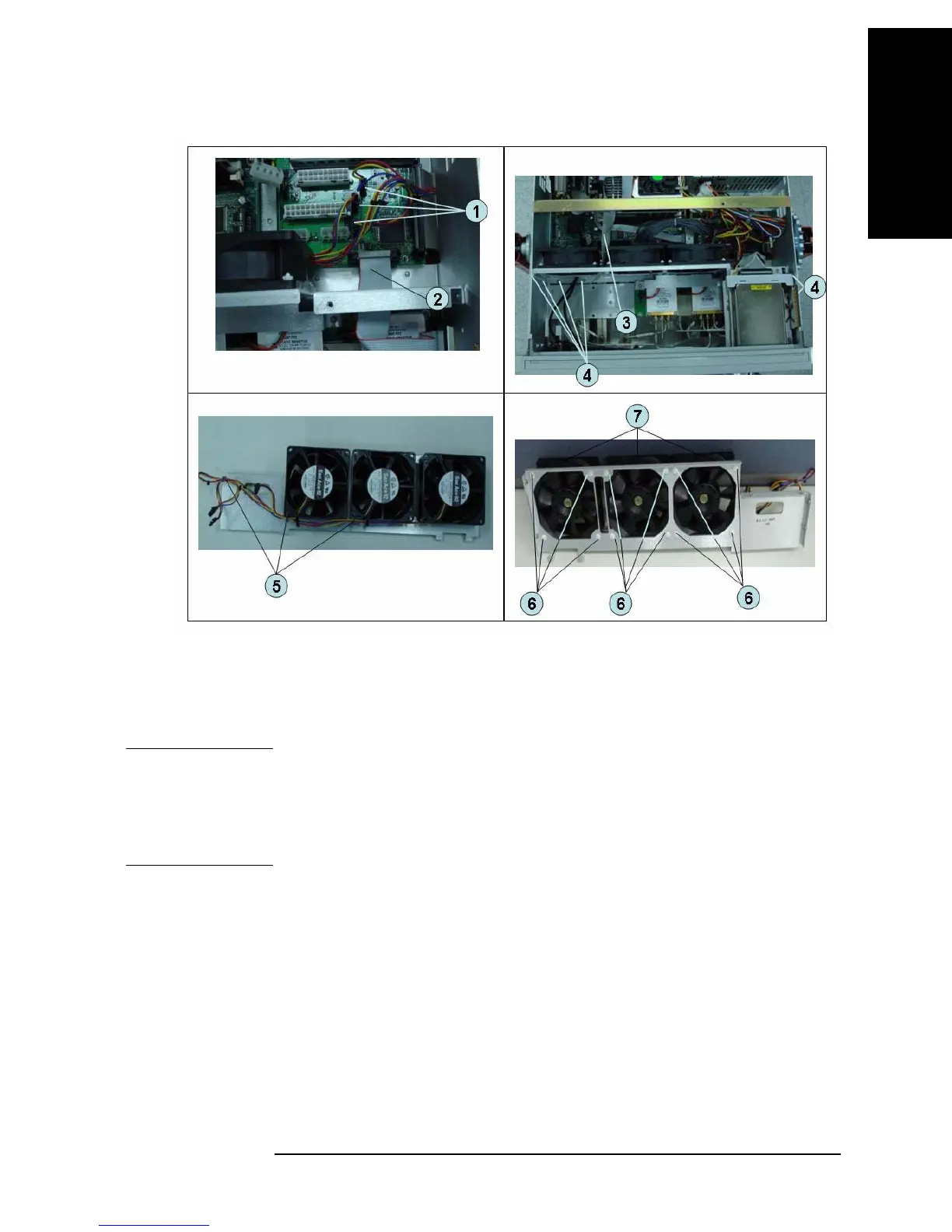

Figure 6-30 Fan Removal
Replacement Procedure
Step 1. Replace the fan by inverse procedure of removal.
NOTE Connecting the cables (item 1) as described below.
• Connect the short cable to “J5” connector.
• Connect the middle cable to “J6” connector.
• Connect the long cable to “J7” connector.
