154 Chapter 5

Replaceable Parts

Replaceable Parts List

LCD Assembly

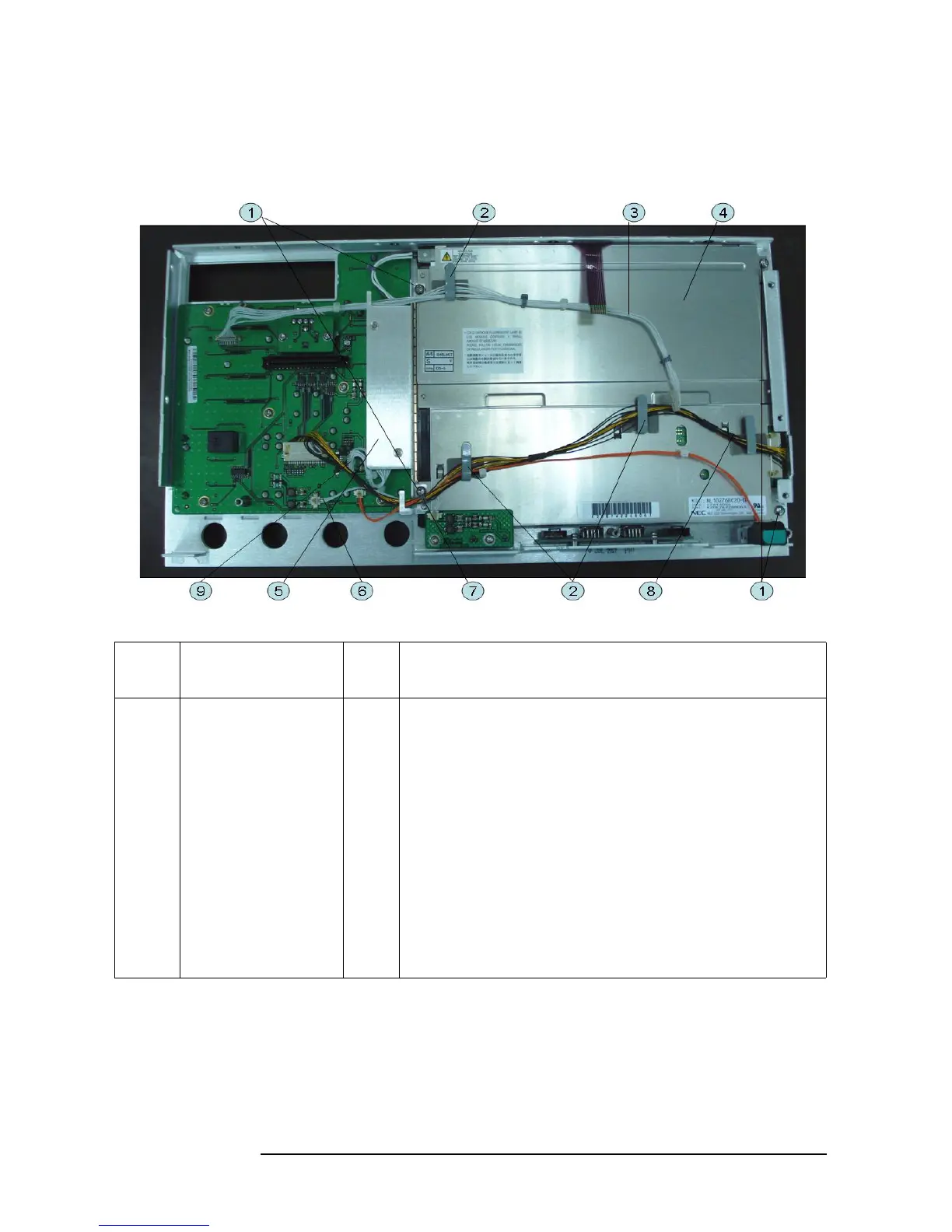

Figure 5-36 LCD Assembly

Table 5-38 LCD Assembly

Ref.

Desig.

Agilent Part Number Qty. Description

1 0515-1402 4 SCREW-MACH M3.5 x L8 PN T15

2 1400-1391 3 CLANP CABLE

3 E5070-61628 1 WIRE ASSY

4 E5070-60112 1 LCD-TPANEL ASSY

5 See Table 5-37 1 INVERTER ASSY

6 E5071-61611 1 WIRE ASSY

7 1400-0249 1 CABLE TIE

8 E5071-61616 1 FLAT CBL ASSY

9 E5071-61608 1 WIRE ASSY
