Replacement Procedure
Outer Cover Removal
6. Replacement Procedure
Outer Cover Removal
Tools Required
• TORX screwdriver, T10, T15, and T20
Procedure
Refer to Figure 6-1 for this procedure.
Step 1. Disconnect the power cable from the E5071C.
Step 2. Remove the four bottom feet (item 1).
Step 3. Remove the four TORX T10 screws (item 2) from the bottom.
Step 4. Remove the four TORX T20 screws (item 3) fastening the side strap handles.
Step 5. Remove the four TORX T15 screws (item 4) fastening the four rear foot
Step 6. Remove the five TORX T15 screws (item 5) fastening the cover.
Step 7. Slide up the outer cover and remove it carefully.

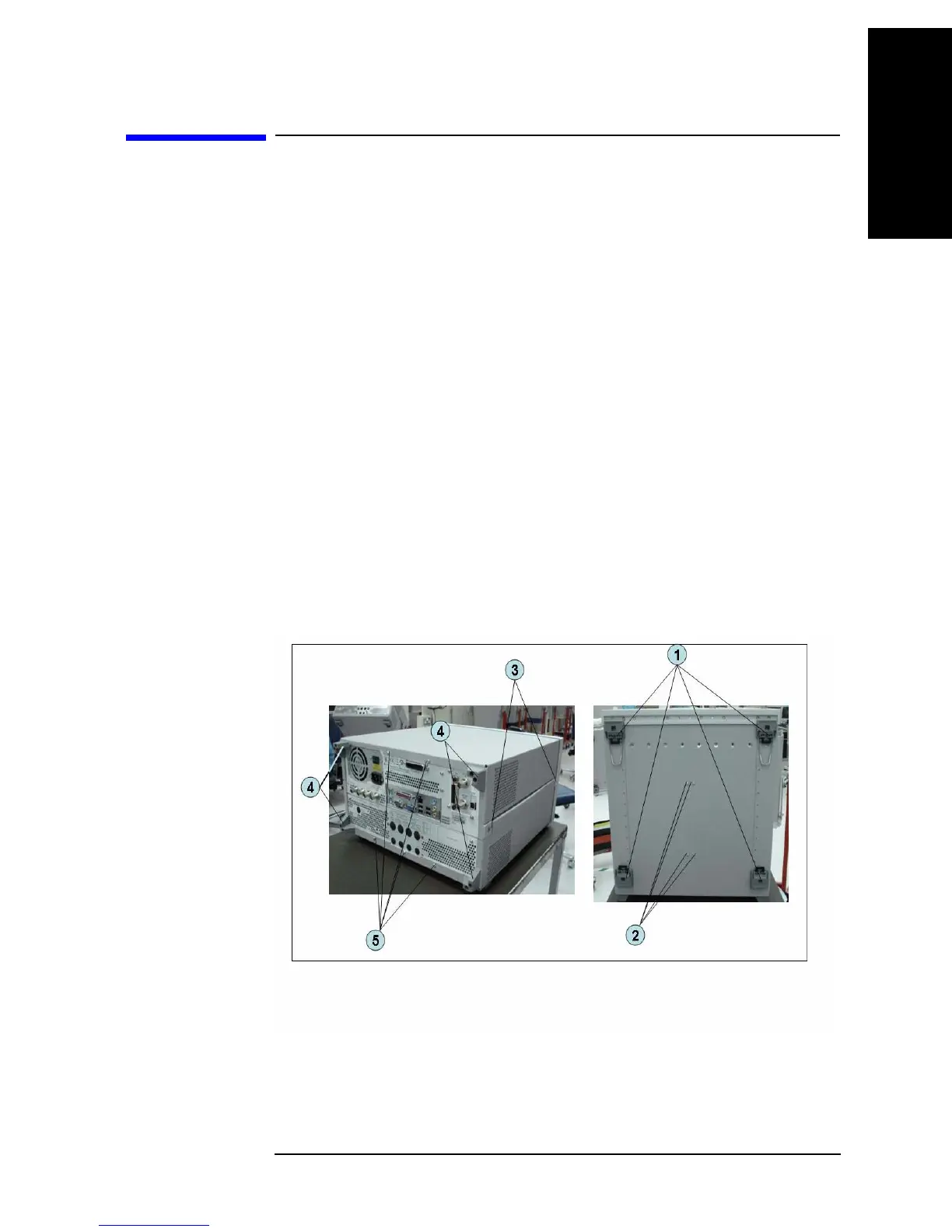

Figure 6-1 Outer Cover Removal
