Replacement Procedure
Removable Hard Disk Drive Replacement (Obsolete)

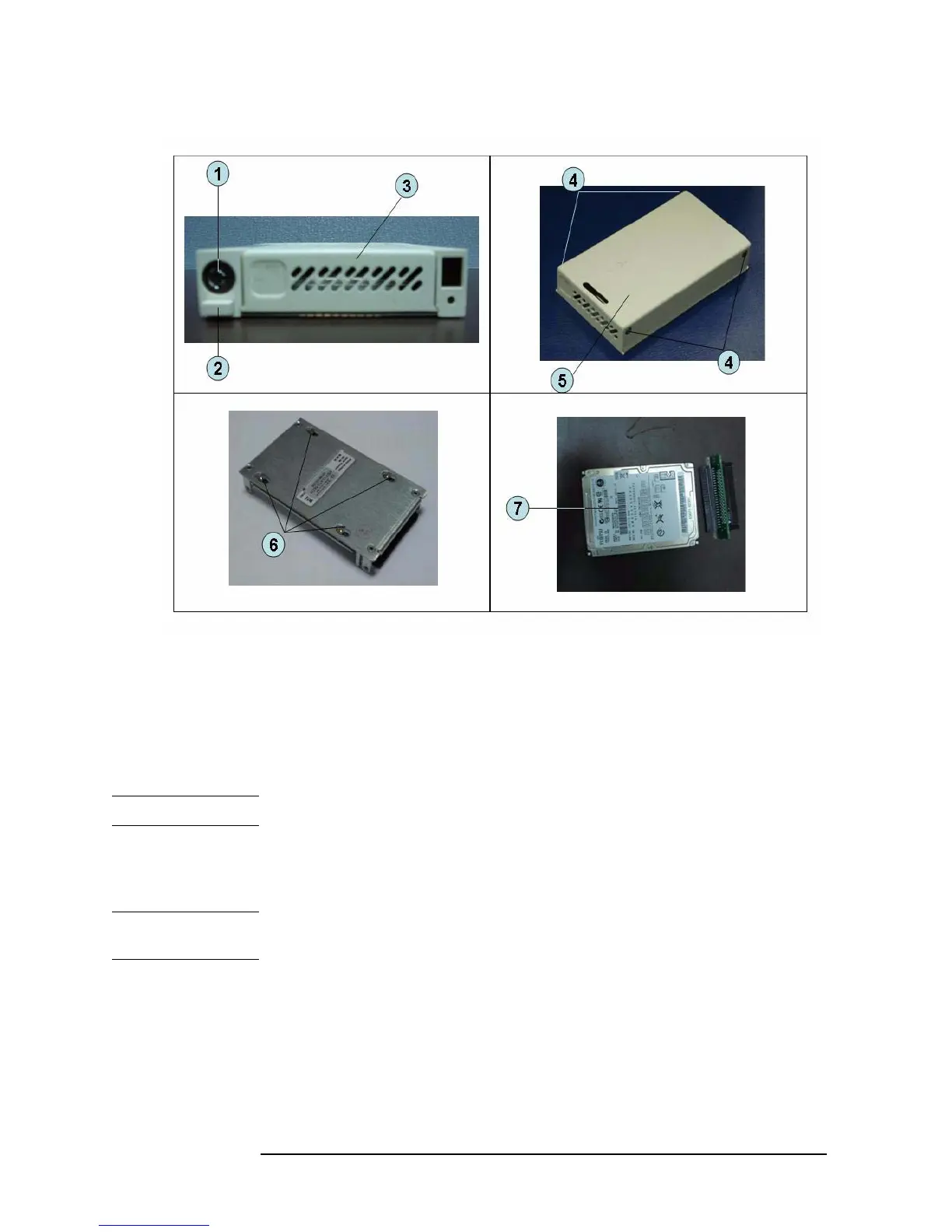

Figure 6-4 Removable Hard Disk Drive Removal (Obsolete)
Replacement Procedure
Step 1. Replace the removable hard disk drive by inverse procedure of removal.
NOTE Fasten the TORX T10 screws (item 6) using a torque screwdriver.
Step 2. Insert the hard disk into the slot.
Step 3. Turn the key to the left until it is locked, then remove the key.
NOTE The “U” is displayed at the 8 segment LED on next to the removal hard disk when E5071C
is turned on without key lock.
Step 4. Restore backup files onto the new removable hard disk drive as described in “Restore
Backup Files onto the New Hard Disk Drive” on page 173.
Step 5. Calibrate the touch screen as described in “Calibration of the Touch Screen” on page 173.
