Chapter 6 231
Replacement Procedure
Control Touch Panel Replacement
6. Replacement Procedure
Control Touch Panel Replacement
Tools Required
• TORX screwdriver, T10, T15, and T20
• Flat edge screwdriver
Removal Procedure
Refer to Figure 6-35 for this procedure.
Step 1. Remove the outer cover as described in “Outer Cover Removal” on page 167.
Step 2. Remove the front panel as described in “Front Panel Removal” on page 168.
Step 3. Disconnect the cables (item 1, 2) connected through the cover.
Step 4. Remove the two TORX T10 screws (item 3) fastening the control touch panel.

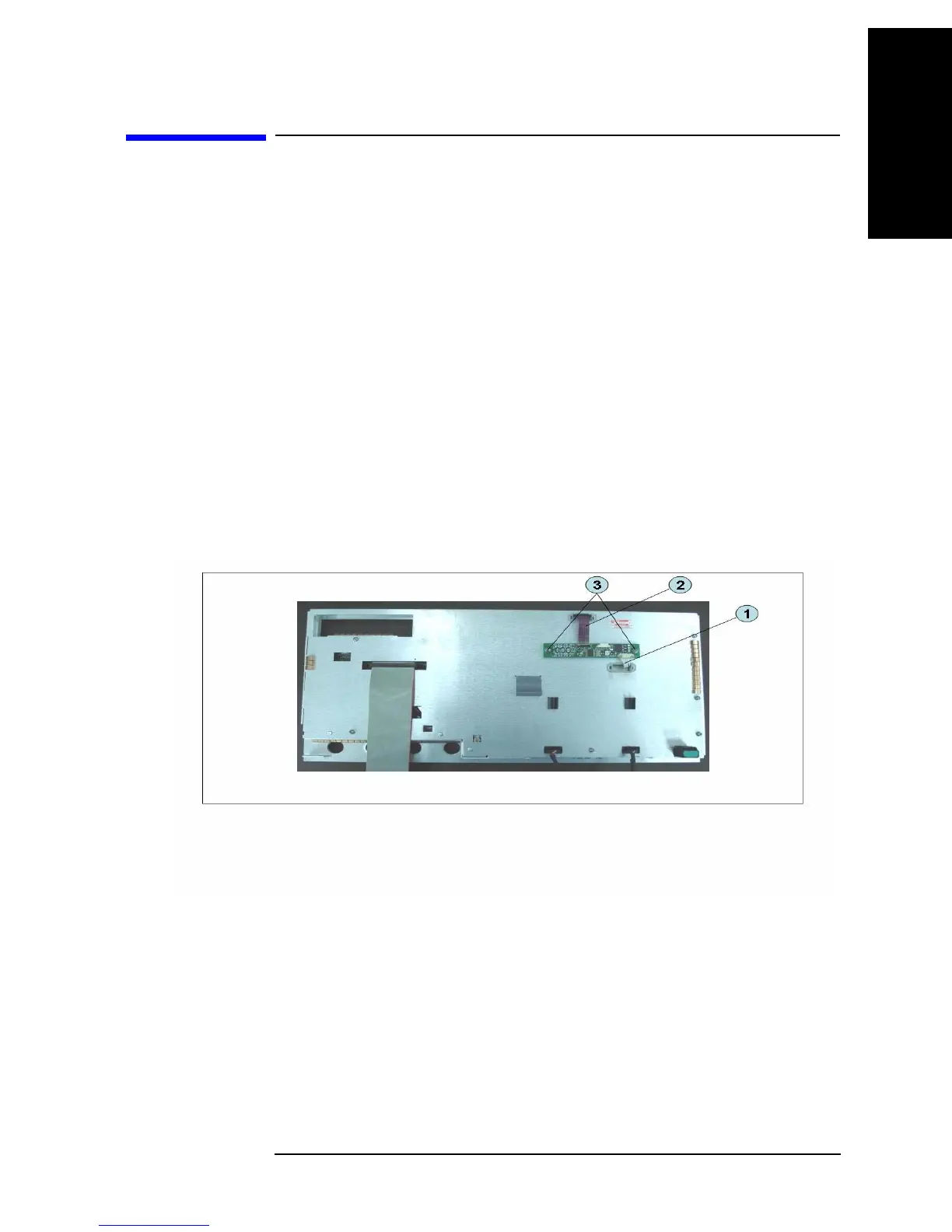

Figure 6-35 Control Touch Panel Replacement
Replacement Procedure
Step 1. Replace the control touch panel by inverse procedure of removal.
To Next Page
