144 Chapter 5

Replaceable Parts

Replaceable Parts List

Receiver Module (Over 8.5 GHz Options) Assembly

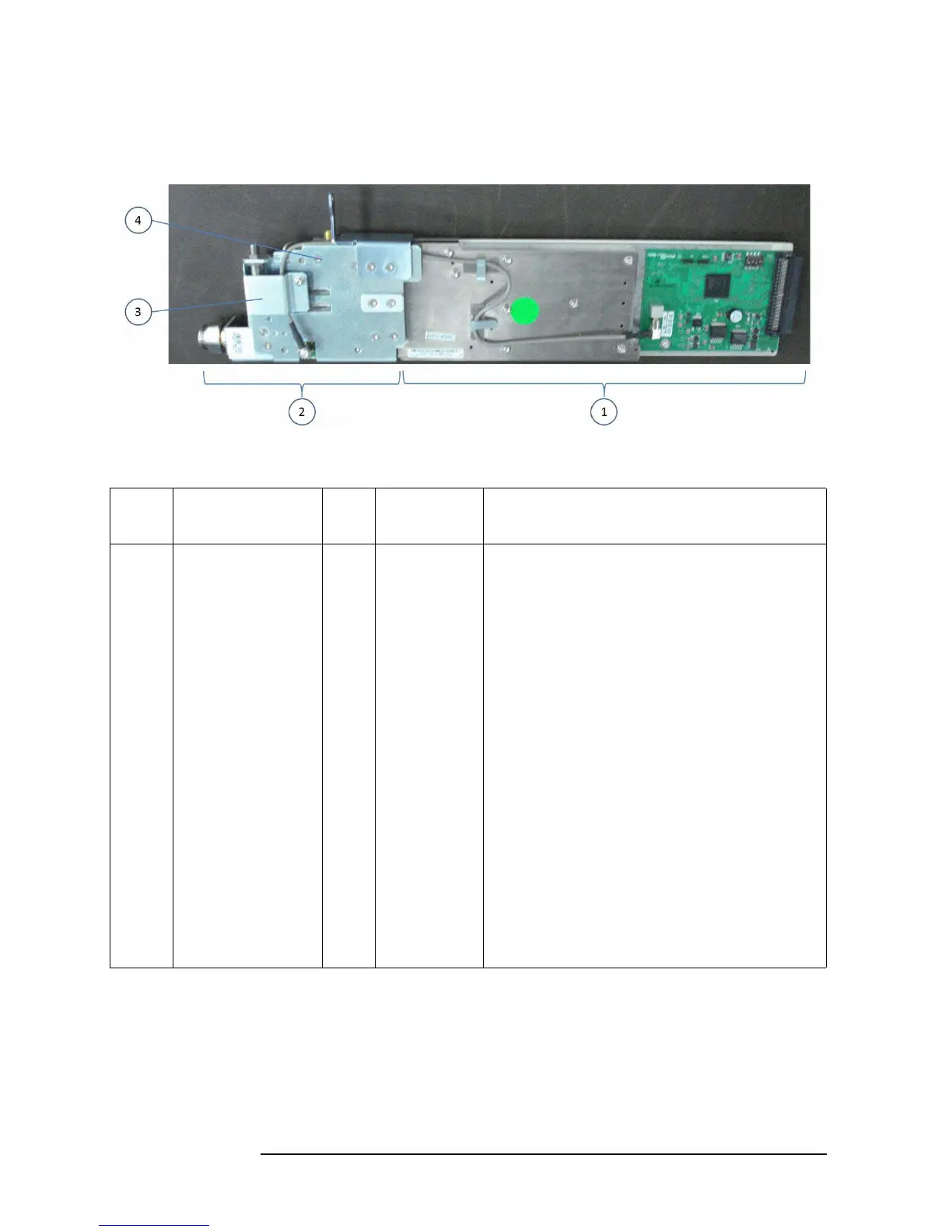

Figure 5-27 Receiver (Over 8.5 GHz Options) Assembly

Table 5-29 Receiver (Over 8.5 GHz Options) Assembly

Ref.

Desig.

Agilent Part

Number

Qty. Abbreviation Description

1 E5071-62097 (A7) 2 RCV TESTED RECEIVER BOARD (Opt. 2xx)

E5071-69097 2 TESTED RECEIVER BOARD (Opt. 2xx)

(Exchange)

E5071-62097 (A7) 4 TESTED RECEIVER BOARD (Opt. 4xx)

E5071-69097 4 TESTED RECEIVER BOARD (Opt. 4xx)

(Exchange)

2 E5071-62089 (A9) 2 FEM TESTED LEVEL POWER SPLITTER & BIAS

TEE MODULE (Opt. 2xx)

E5071-69089 2 TESTED LEVEL POWER SPLITTER & BIAS

TEE MODULE (Opt. 2xx) (Exchange)

E5071-62089 (A9) 4 TESTED LEVEL POWER SPLITTER & BIAS

TEE MODULE (Opt. 4xx)

E5071-69089 4 TESTED LEVEL POWER SPLITTER & BIAS

TEE MODULE (Opt. 4xx) (Exchange)

3 E5070-01294 BRACKET

4 E5070-01293 BRACKET MODULE
