Appendix B 261
System Recovery
System Recovery
B. System Recovery

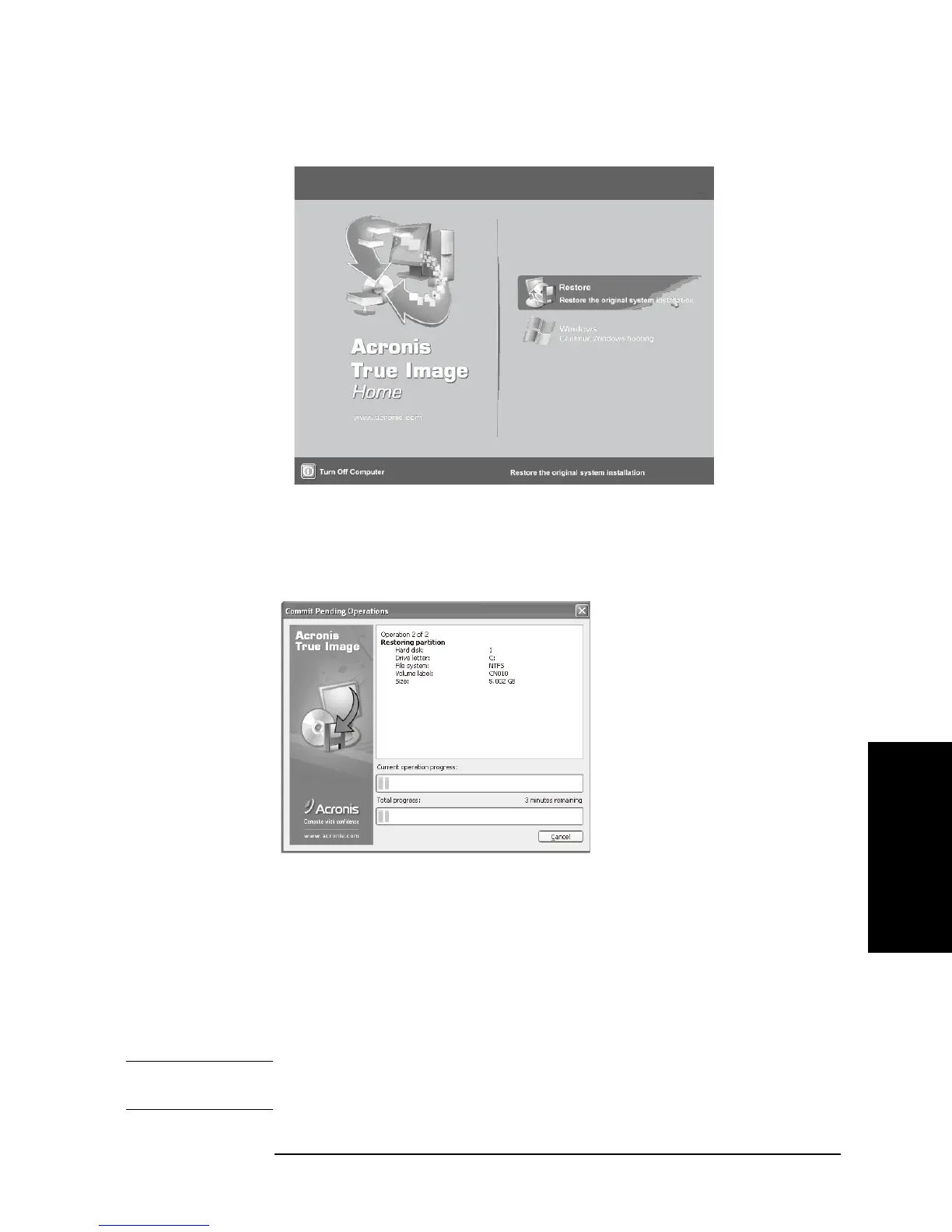

Figure 0-1 Activate Acronis Startup Recovery Manager
Step 7. A confirmation dialog box is displayed. Push the enter to select Yes to start the recovery of
the factory backup. The recovery takes a few minutes depending on the amount of data.
Figure 0-2 Recover Factory Backup
Step 8. When the recovery is finished, push the enter select OK. The E5071C restarts
automatically.
Step 9. After restart, the screen for initial registration appears. Execute initial registration. For
information on the execution procedure, refer to
“Initial Registration Procedure (HDD
Revision: CN924 or below)” on page 283.
Step 10. Execute the calibration of the touch screen. For information on the execution procedure,
refer to
“Calibration of the Touch Screen” on page 285.
CAUTION Never turn off the power during the system recovery because doing so may cause
serious damage to the E5071C.
