40 N9310A User’s Guide
3Using Functions
Generating a Modulated Signal
The signal generator allows you to generate the following
modulated signals: AM, FM, FM, Pulse Modulation. An
optional I/Q modulator is also available when you installed
Option 001 on the signal generator.
Preparing the Modulation Format
You can turn on the modulation format prior to or after set-
ting the other modulation parameters. Perform the following
steps to turn the modulation format on and output a modu-
lated signal:
1 Access the submenu a modulation format. For example, AM.
This submenu shows a set of softkeys associated with the
format’s name. For example, AM Depth, AM Source.
2 Press the hardkey until is displayed. And press
key to enable the RF output.
More intuitive examples on generating a modulated signal
come in the following pages.
Mod
On/Off
RF
On/Off

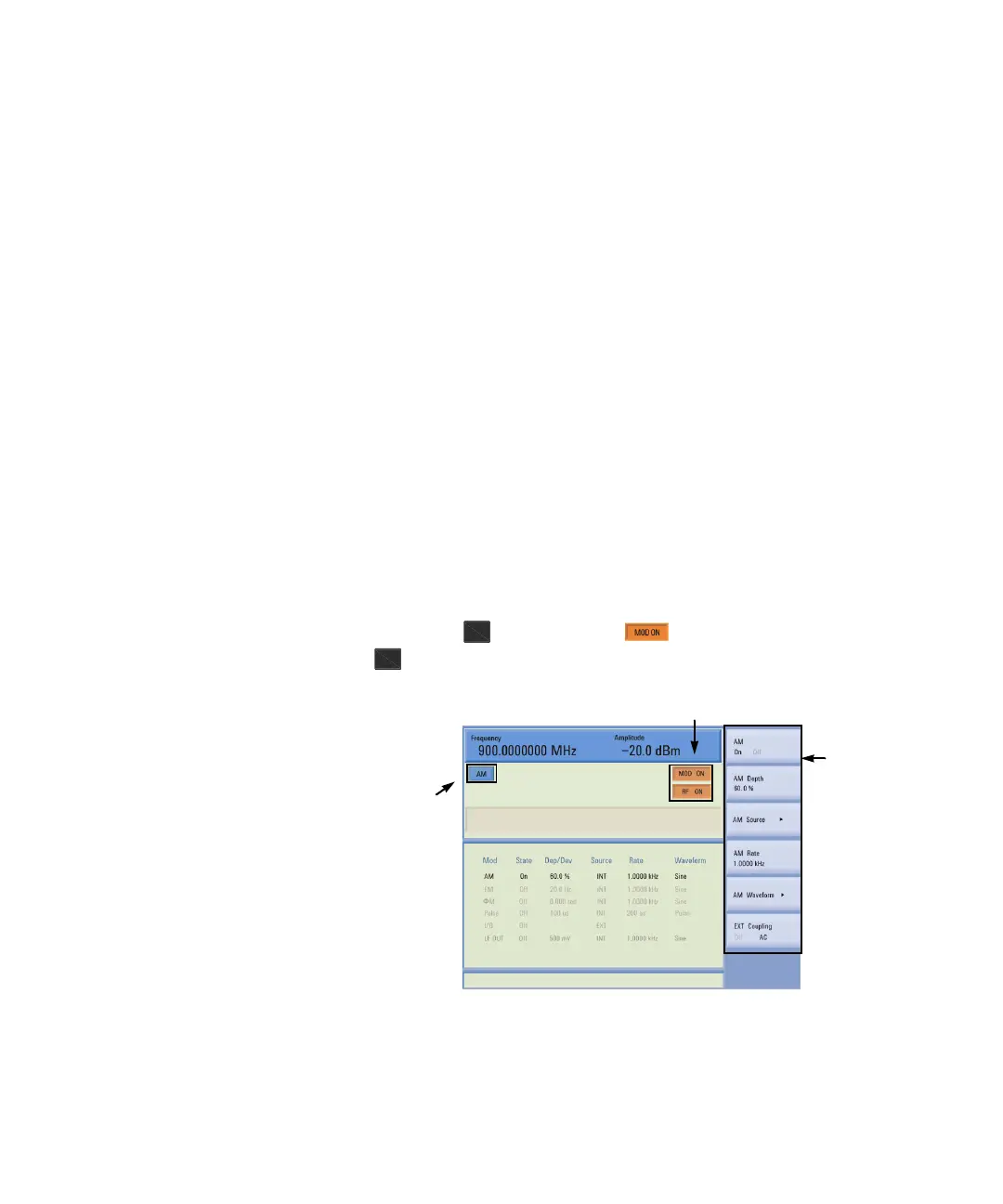

AM processed and
output enabled
AM
enabled
AM
submenu
To Next Page
