Chapter 11 Add Distributed I/O Modules to the Project

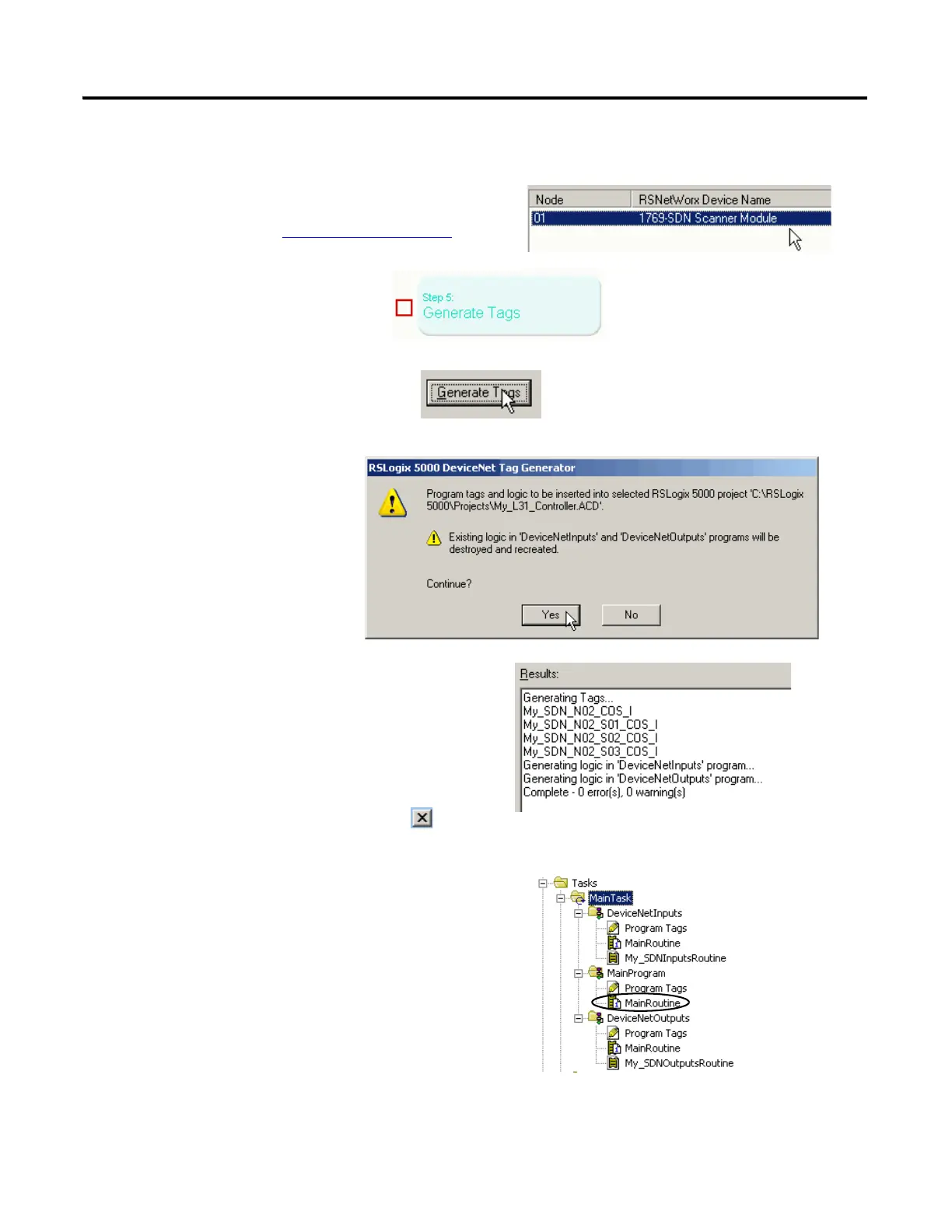

8. Select the node of the 1769-SDN scanner
as recorded on the Network Worksheet
.
9. Click Generate Tags.
10. Click Generate Tags.
11. Click Yes.
When tag generation is
complete, the text log displays.
12. Close the DeviceNet Tag Generator.
Note that new programs and tags
have been added to the controller
organizer. These tasks were created by the
Tag Generator.
13. In the controller organizer, select
MainProgram > MainRoutine.
