Allen-Bradley CompactLogix Series User Manual

Publication IASIMP-QS001C-EN-P - October 2009 131
Add Distributed I/O Modules to the Project Chapter 11

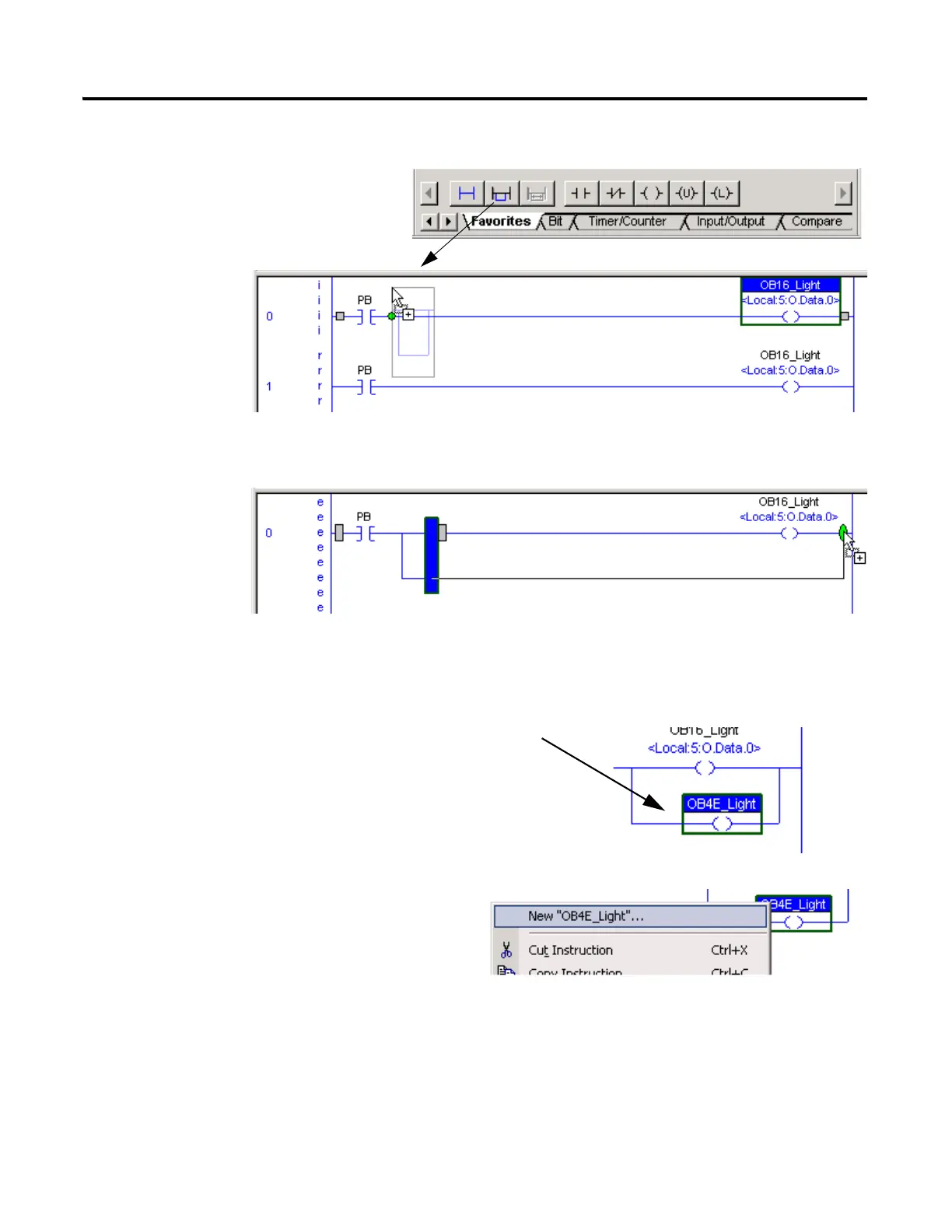

14. Drag and drop a Branch
instruction into the first rung.
15. Expand tthe Branch to the right side of the xxxx_Light.
16. Drag and drop another Output Energize element onto
the Branch and name it xxxx_Light (where xxxx is
the suffix of the catalog number of the digital 1734
POINT output module).
17. Right-click the Light and select New
‘xxxx_Light’.

Allen-Bradley CompactLogix Series Specifications

General

Communication Ports	EtherNet/IP
Programming Software	Studio 5000 Logix Designer
Power Supply	24V DC
Series	CompactLogix
Programming Languages	Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Mounting	DIN rail
Processor Type	Various (depends on model)
