70 Rockwell Automation Publication 20B-IN026C-EN-P - October 2015
Chapter 3 Inverter Assembly Component Replacement Procedures

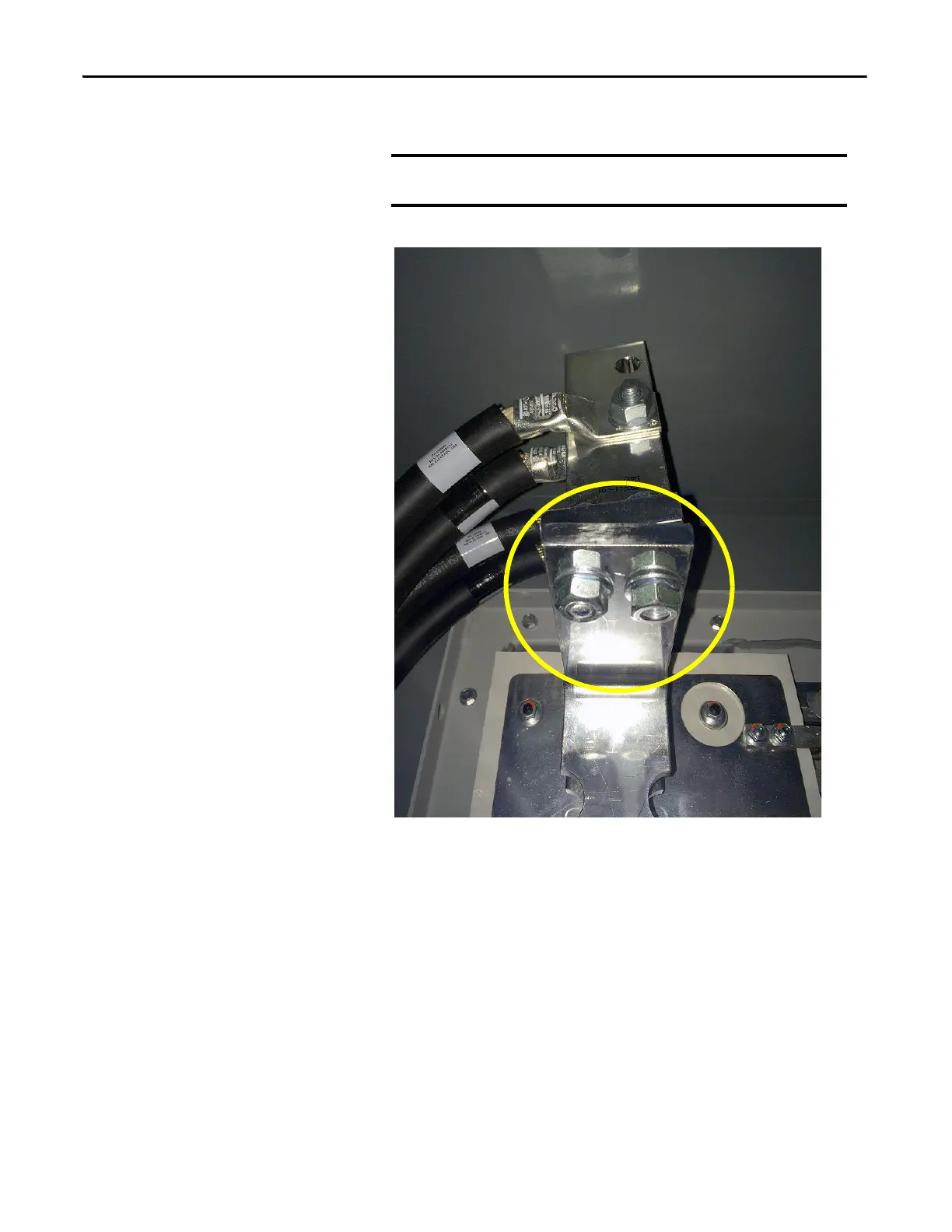

8. Remove the bolts between the right-angled bus bar and the large bus bar.
IMPORTANT
Do not remove the bolts that attach the cables to the right-angled
bus bar.
