Publication 1752-UM001A-EN-P - October 2006
106 Download and Verify

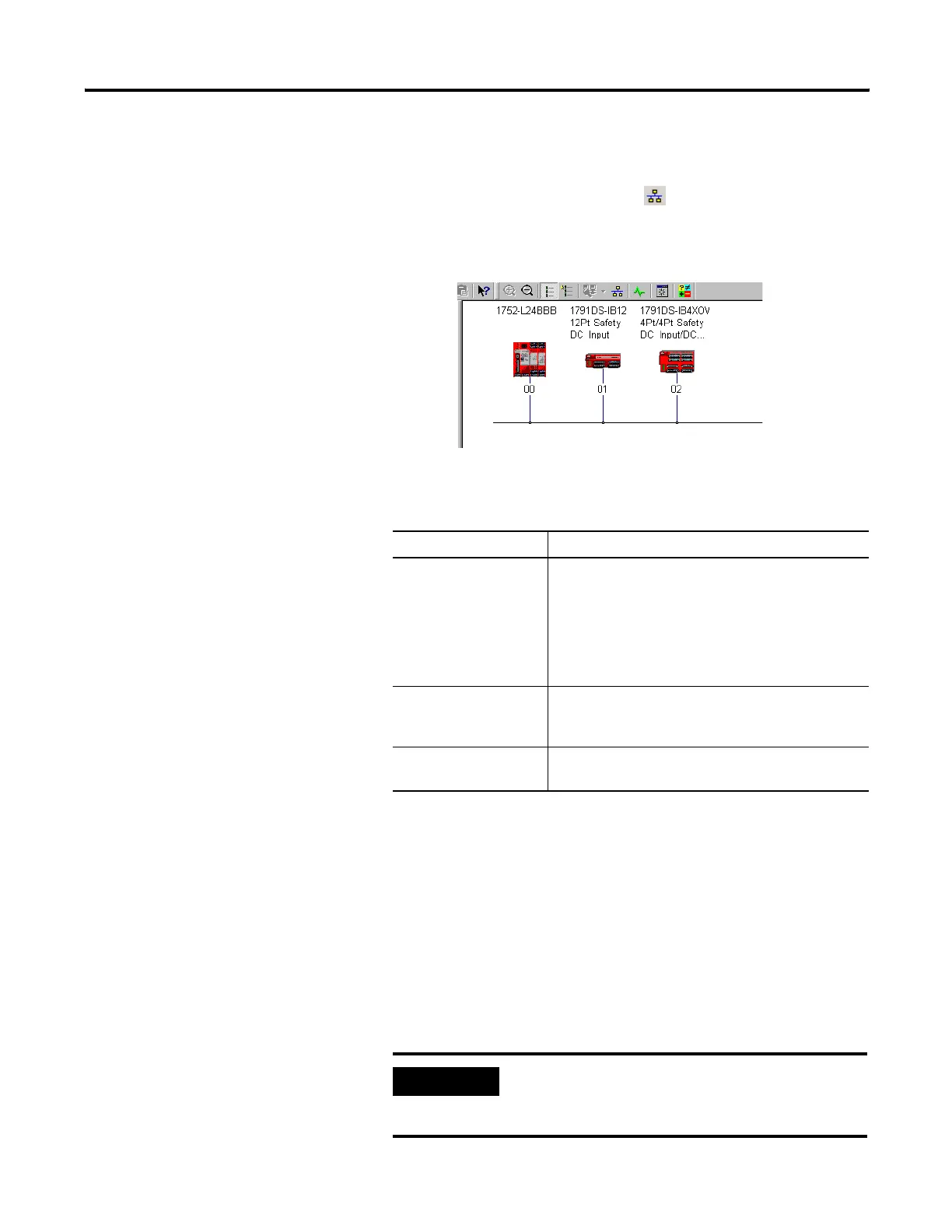

Follow these steps to download the DeviceNet network configuration.
1. Go online by clicking the online icon.
2. Browse to the DeviceNet network and click OK at the prompt.
During each browse operation, RSNetWorx for DeviceNet
software reads the following attributes of each device.
3. Download your configuration to the network by right-clicking
the device and choosing Download to Device.
4. Confirm your intent to download by clicking Yes.
If a device is password-protected, RSNetWorx for DeviceNet
software prompts you to type the password for each protected
device.
If a device is safety-locked, you must first unlock the device and
then download.
Safety Attribute Description
Safety Network Number
(SNN) and Node Address
Combination
The node address and SNN stored in the RSNetWorx
for DeviceNet configuration file must match the node
address and SNN of the online device. If the SNNs do
not match, the device enters the SNN error state.
See page 47 for information on resolving an SNN
mismatch error.
Configuration Signature RSNetWorx for DeviceNet software compares the
configuration signature in its configuration file with
the configuration signature in the online device.
Safety-Lock If the device is safety-locked, its configuration cannot
be modified without first unlocking the device.
IMPORTANT
If you safety-unlock a device, you must run the Safety
Device Verification Wizard to re-verify and safety-lock the
device before operating the device in your safety system.
