Fault Present Bit
You can enable the Fault Present diagnostic-status bit in some
function blocks by selecting the checkbox located on the In/Out
Setting tab of the Function Block Properties dialog. If the Use Fault
Present checkbox is checked, an additional Fault Present output is
displayed on the function block.
Optional Output Point Selections
You can enable optional outputs, including the Fault Present bit for
some functions blocks, by checking the appropriate checkboxes on
the Out point tab of the Function Block Properties dialog. When the
optional outputs are checked, they are displayed on the function
block.

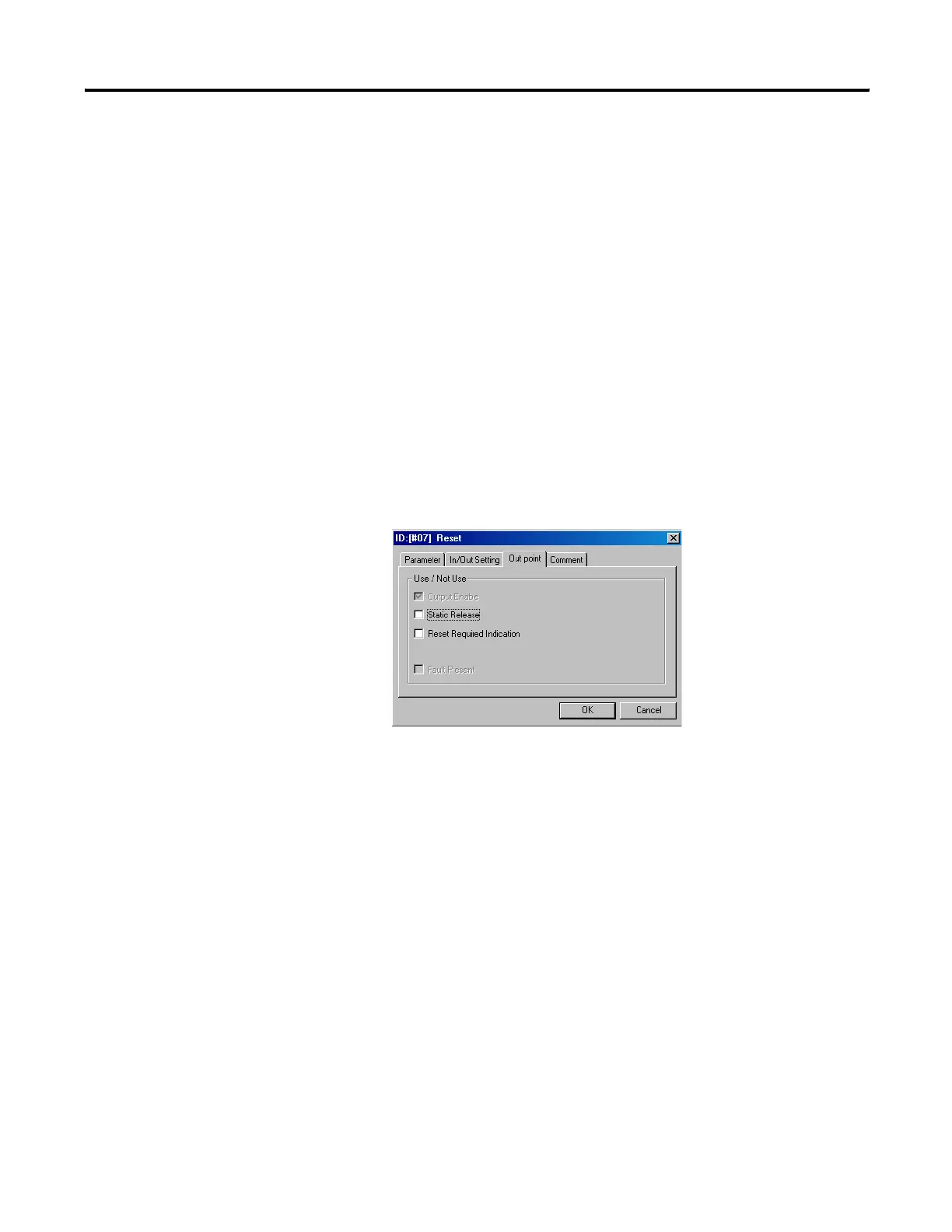

Out point Tab
Comments
Choose the Comments tab to type a name for the function block or
I/O signals. The names of I/O signals are not displayed in the
workspace, but the name of the function block is displayed under the
function block in the workspace. All names typed in this dialog are
printed when the application program is printed.
