Publication 1752-UM001A-EN-P - October 2006

Monitor Status and Handle Faults 119

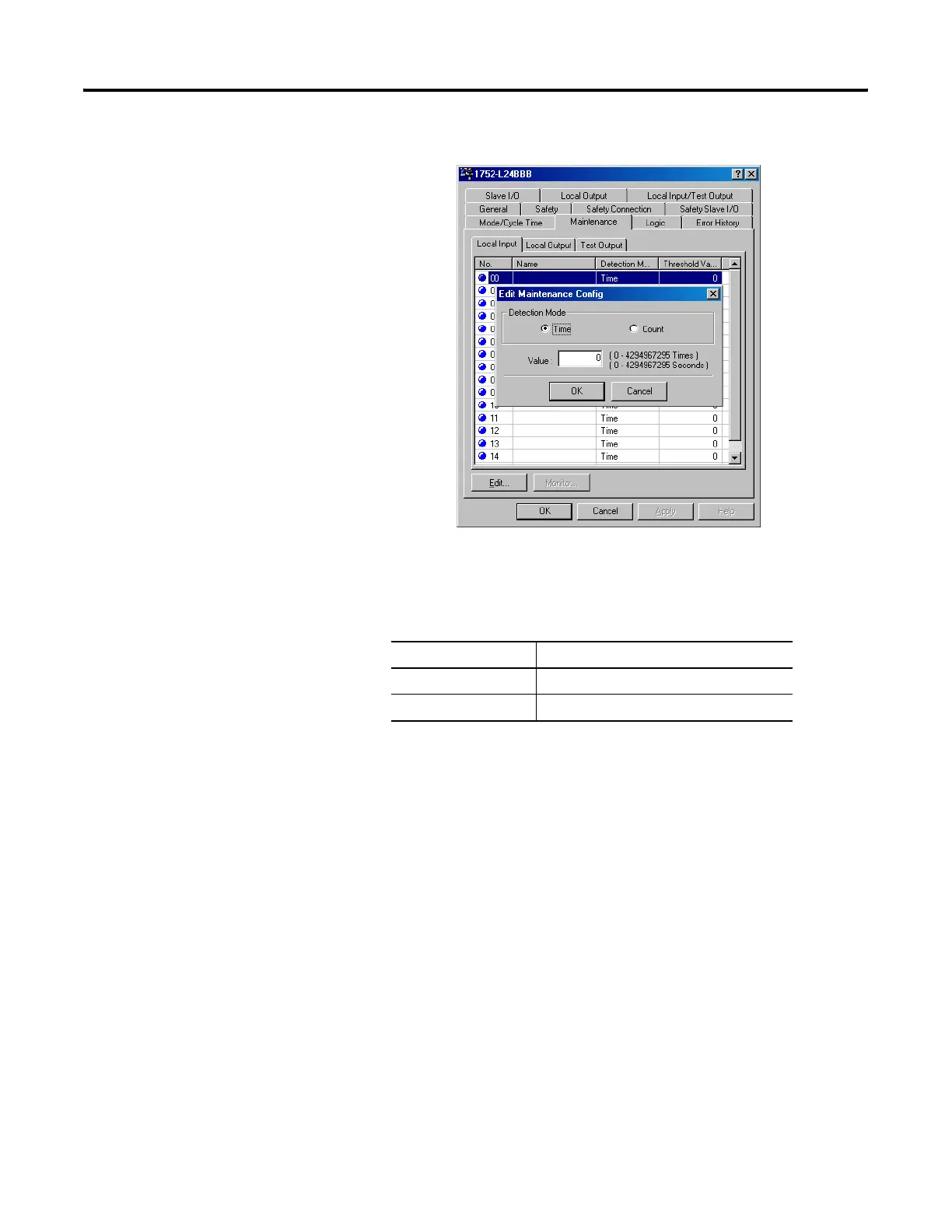

4. Select the desired terminal and click Edit.

5. On the Edit Maintenance Config dialog choose the Detection

mode, either Count or Time.

6. Type an alarm threshold value for the specified Detection mode.

7. Click OK.

8. Click OK.

When you are online with the controller, you can monitor the

configured terminals by clicking Monitor on the Maintenance tab.

Clear the Maintenance Values

Follow these steps to clear the count or on-time accumulated values

while online with the controller.

1. On the Maintenance tab, click Monitor.

Detection Mode Valid Range for Values

Time 0…4,294,967,295 seconds

Count 0…4,294,967,295 times
