108 Download and Verify
Determine if Devices Can
Be Verified
When the Safety Device Verification Wizard browses the network, it
checks the safety status of the devices on the network to determine if
the devices can be verified.

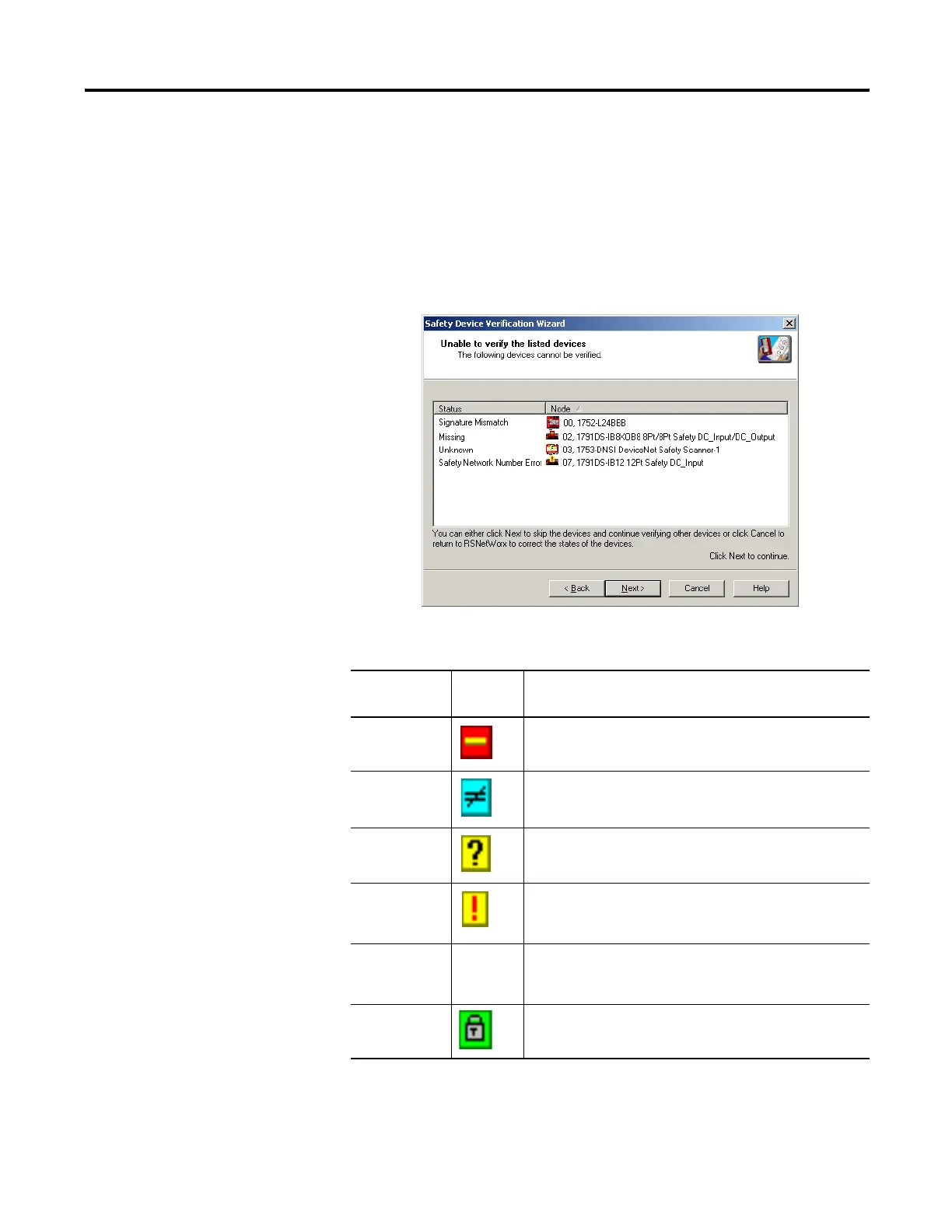

If any devices are in a state that prevents the wizard from continuing
the verification process, the Unable to verify the listed devices dialog
appears listing those devices and their current status, including a
device icon overlaid with a status icon.
To return to RSNetWorx for DeviceNet software so that you can
correct the status of the indicated devices, close the Safety Device
Verification Wizard by clicking Cancel.
Status
Icon
Overlay
Description
Missing The device is part of the network configuration, but was not
found during the browse operation.
Mismatch The device identity in the network configuration does not
match the identity of the online device.
Unknown The device is in the configuration, but has not been
detected on the network yet.
Safety Network
Number Error
The safety network number (SNN) in the device is either
invalid or does not match the SNN for the device in the
RSNetWorx for DeviceNet configuration file.
Signature
Mismatch
None The configuration signature in the device does not match
the configuration signature in the RSNetWorx for
DeviceNet configuration file.
Safety Locked The device is already locked.
