Publication 1752-UM001A-EN-P - October 2006

150 Logic Functions Command Reference

Exclusive OR Truth Table

In the truth table, 0 is off and 1 is on.

Exclusive NOR Instruction

The output is an exclusive NOR of the input conditions.

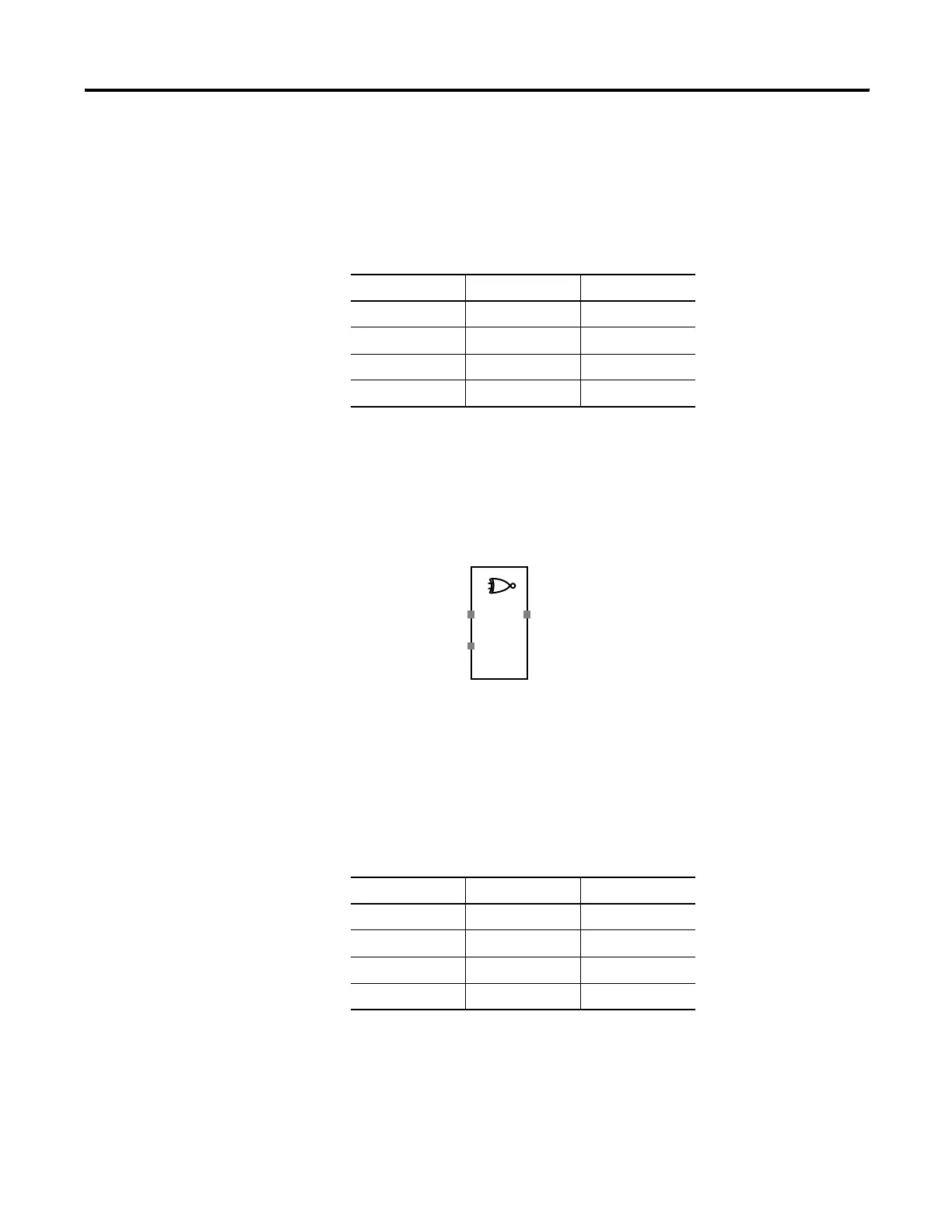

Exclusive NOR Instruction Diagram

Exclusive NOR Instruction Truth Tables

In the truth table, 0 is off and 1 is on.

Truth Table for Exclusive OR Evaluation

Input 1 Input 2 Output 1

0 0 0

0 1 1

1 0 1

1 1 0

Truth Table for Exclusive NOR Evaluation

Input 1 Input 2 Output 1

0 0 1

0 1 0

1 0 0

1 1 1

Output 1Input 1

Input 2
