Allen-Bradley SmartGuard 600 - Light Curtain Application Example

To Next Page

To Previous Page

Publication 1752-UM001A-EN-P - October 2006

Application and Configuration Examples 227

Light Curtain Application

This example shows a dual channel safety light curtain with manual

reset and dual channel emergency stop switch with manual reset.

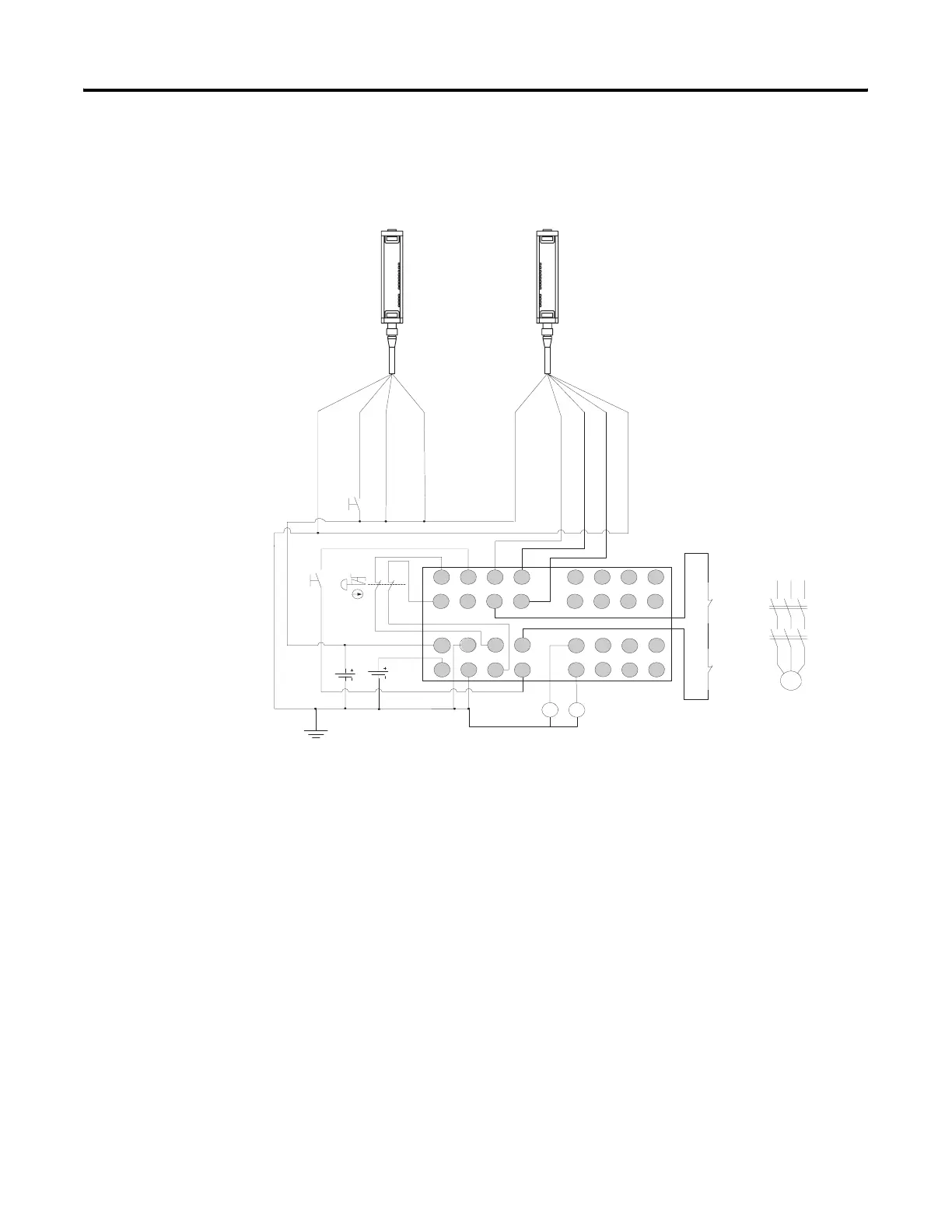

Wiring Diagram

G1 T0

V2 G2

O3 O5

O2 O4 O6

KM1

KM2

KM1-NC

KM2-NC

KM1 KM2

Connect a 24V dc power supply to terminals V0 and G0, the power supply terminals for internal circuits.

E1 and E2: 24V dc Power Supplies

S1: Reset Switch

S2: Reset Switch

S3: Emergency Stop Pushbutton

KM1 and KM2: Contactors

Aux Output (White)

Safety Output 1 (Gray)

Safety Output 2 (Pink)

0V (Blue)

+24V (Brown)

Reset Input (Yellow)

Test Input (Black)

0V (Blue)

440 L

Receiver

440 L

Transmitter
