Publication 1752-UM001A-EN-P - October 2006

86 Create Your Application Program

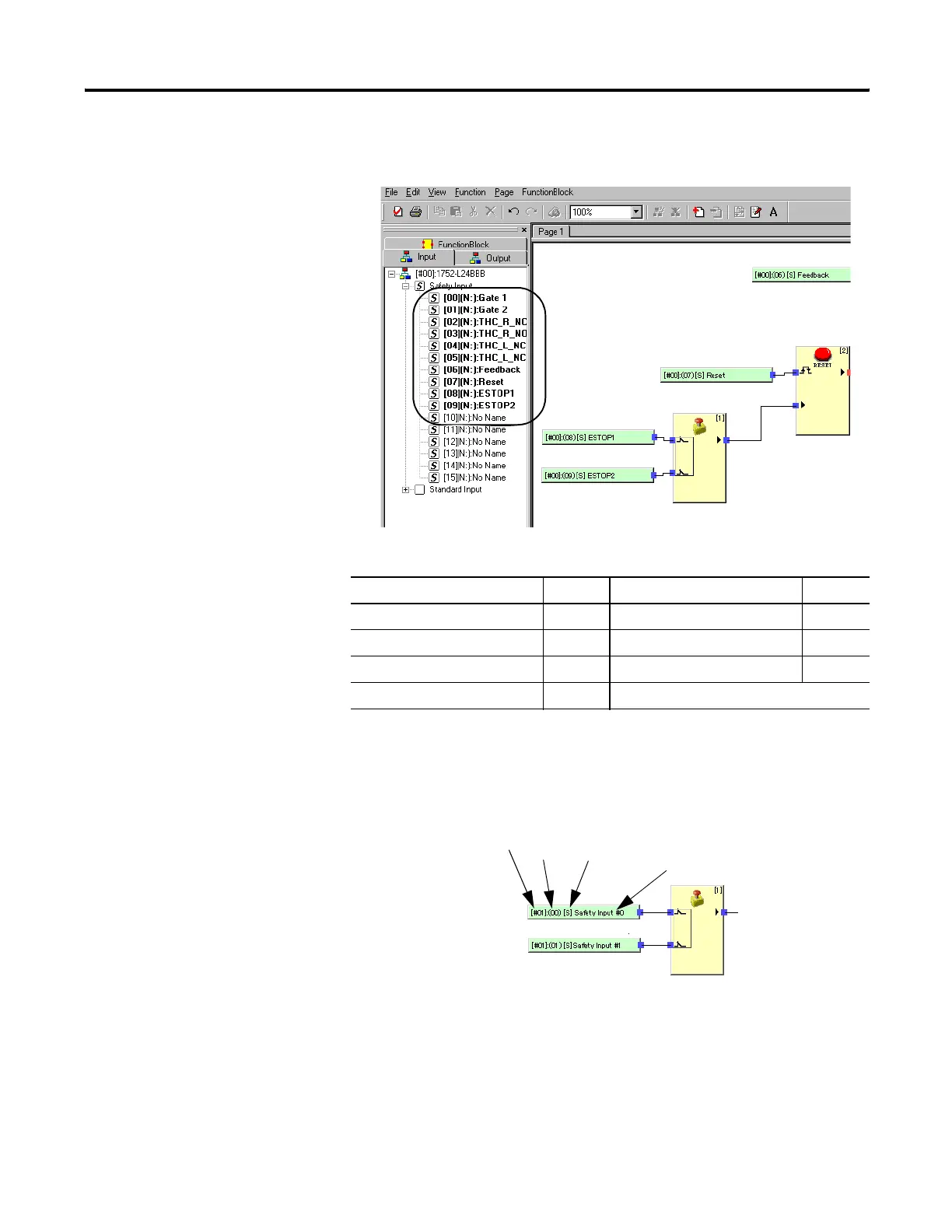

In the object list, I/O tags are displayed with symbols to indicate how

they are configured.

When used in the workspace, input tags include the node address, bit

address, attribute (S for safety, none for standard), and registered I/O

comment.

Input Tags

Input Tag Symbols

Input Mode Symbol Channel Mode Symbol

Not Used N Single None

Test Pulse From Test Out P Dual Channel Equivalent e

Used As Safety Input S Dual Channel Complementary c

Used As Standard Input ST —

Node Address

Bit

Address

Registered I/O Comment

Attribute

S for Safety I/O
