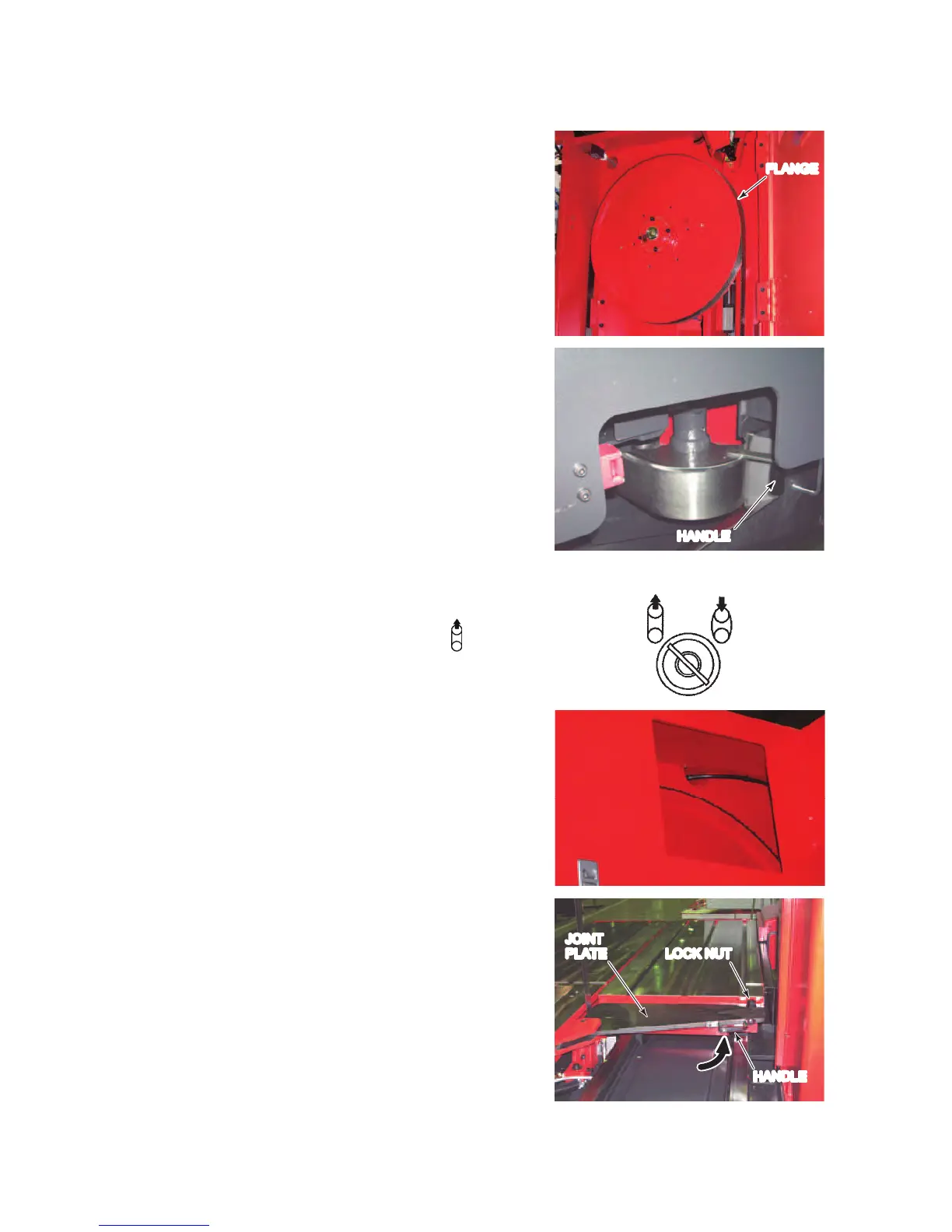

Check that the saw
blade does not ride on
the flanges of the
drive and driven
wheels.
FLANGE
16 Push the handle of
the wire brush to
return the wire brush
to the original
position.
17 Close the drive wheel
cover.
HANDLE
18 Close the driven wheel cover.
19 Turn the BLADE
TENSION keyswitch
to the “
” position
to raise the driven
wheel and tension the
saw blade.
Check through the
window on the driven
wheel cover that the
saw blade does not
come off.
20 Return the joint plate
to the original
position, and tighten
the lock nut.
JOINT
PLATE LOCK NUT
HANDLE
