Appendix
A.1 Connector Wiring
The following sections document the connector pin outs and pin
definitions.
A.1.1 Serial (RS-232) Connector
The RS-232 connector is a 9-pin D-sub female connector to connect
standard DTE 9-pin D-sub male connector using a standard straight (not
NULL) cable.
Table A-1 Serial (RS-232) Pin Definitions
Pin Mnemonic Function
1N/C
2 TXD Transmit Data
3 RXD Receive Data
4N/C
5 GND Signal Ground
6N/C
7 CTS Clear to Send
8 RTS Request to Send
9N/C

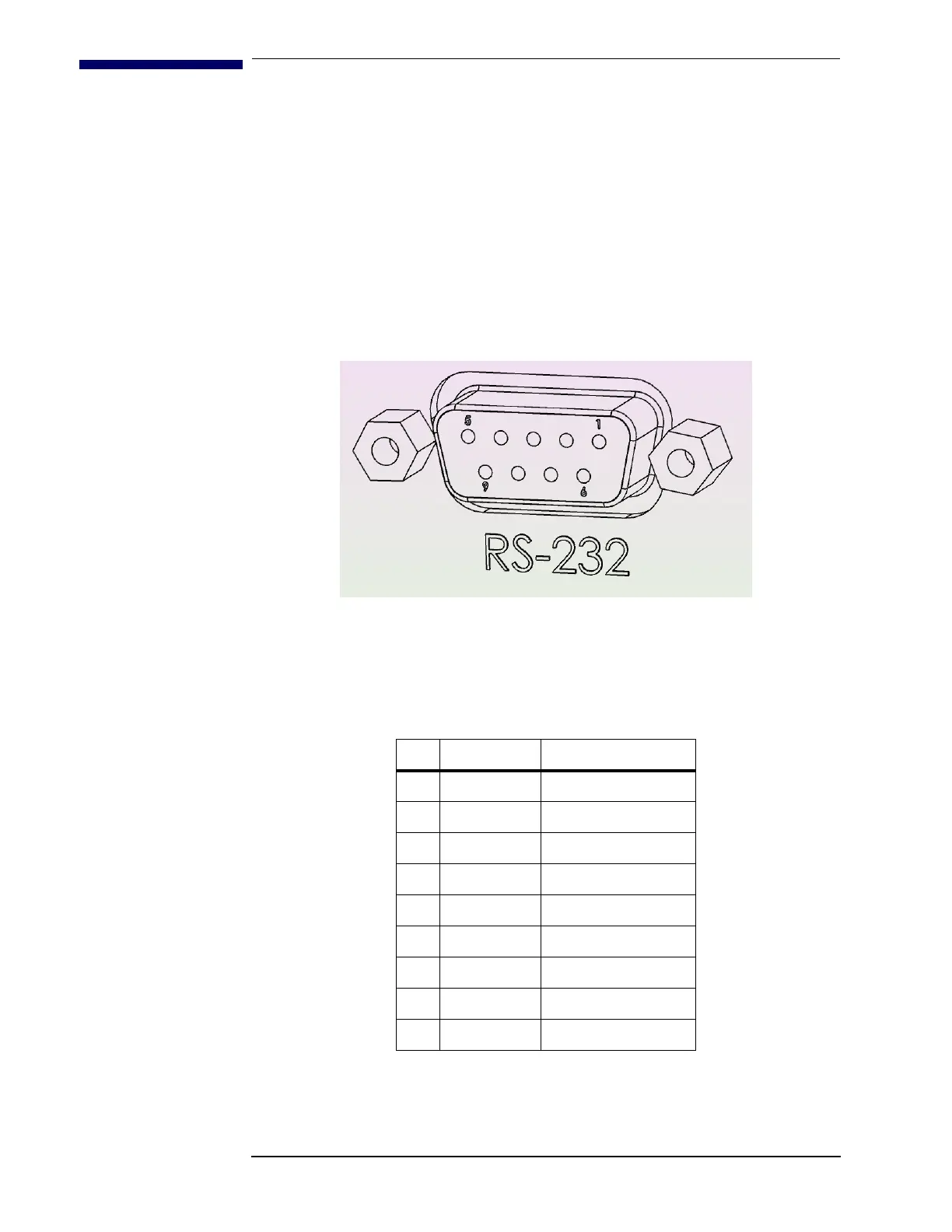

Figure A-1 Serial (RS-232) Pin Out
