AMI 1700 - Aux I;O Connector

Rev. 2 85
Appendix
Aux I/O Connector Pin Outs
A.1.3 Aux I/O Connector
Table A-3 Aux I/O Pin Definitions
Pin Function Polarity
1
4-20 mA Current Loop
+
2-
3
0-10 VDC Output
+
4-
5
Relay № 2 Dry Contact
N/A
6
7
Relay № 1 Dry Contact
8
9
External Reset

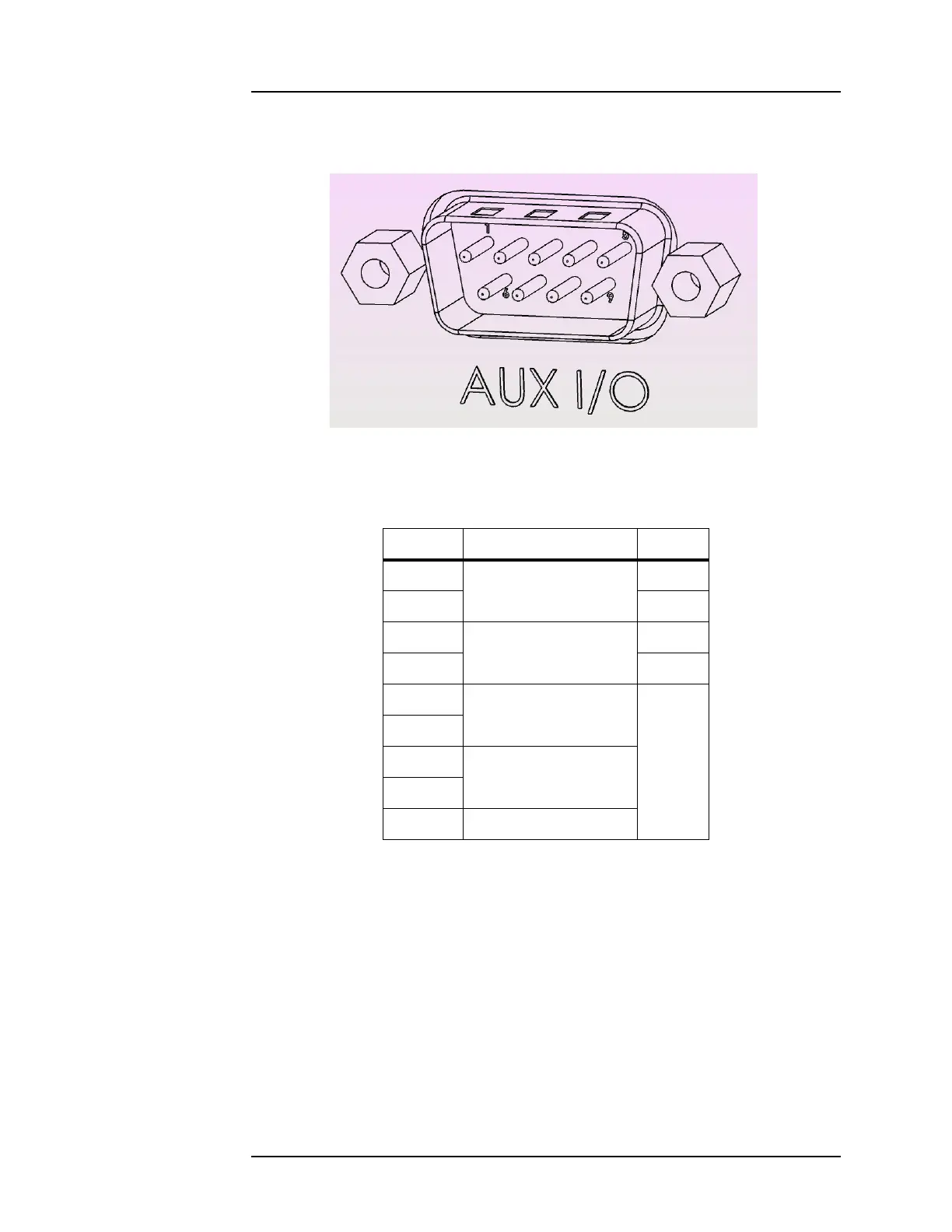

Figure A-3 Aux I/O Connector
