AMI 1700 - Model 1700 Panel Layouts; Front Panel Layout; Rear Panel Layout and Description

6 Rev. 2
Introduction
Model 1700 Front Panel
1.2 Model 1700 Front Panel Layout
1.3 Model 1700 Rear Panel Layout

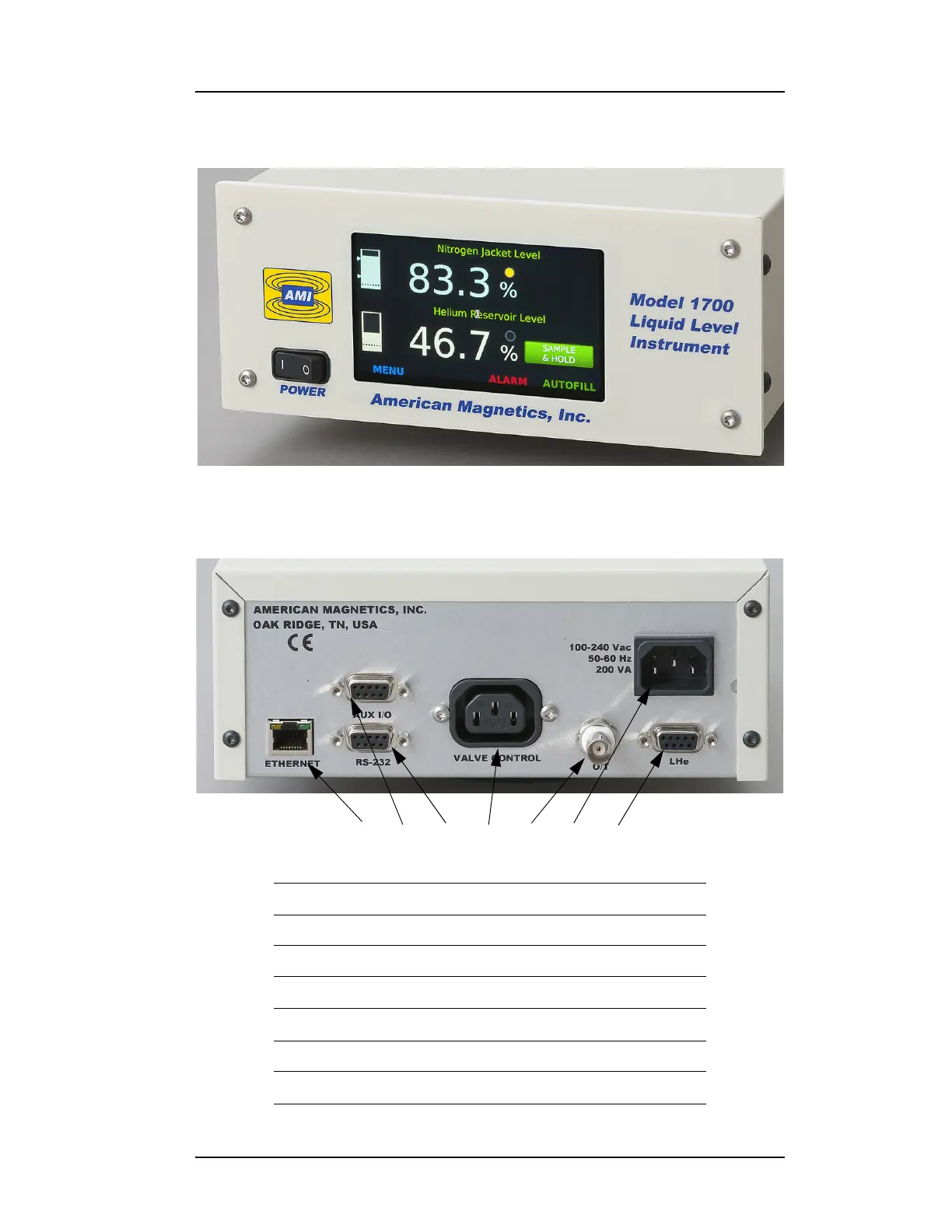

Figure 1-4. Model 1700 Front View; Dual Channel Instrument Shown

Table 1-1. Model 1700 Rear Panel Description
1 Computer Network Connector
2 Aux I/O Connector
3 RS-232 Serial Connector
4 Switched Valve Outlet Socket
5 Capacitive Sensor Input Connector
6 Mains Power Entry Connector
7 LHe Level Sensor Connector
