AMI 1700 - Ethernet Connector; Figure A-2 Ethernet Connector Socket Pin out

84 Rev. 2
Appendix
Ethernet Connector
A.1.2 Ethernet Connector
Table A-2 Ethernet RJ-45 Connector Pin Definitions
Pin Mnemonic Function
1 TXD+ Transmit differential output +
2 TXD- Transmit differential output -
3 RXD+ Transmit differential input +
4
not used
5
6 RXD Transmit differential input -
7
not used
8

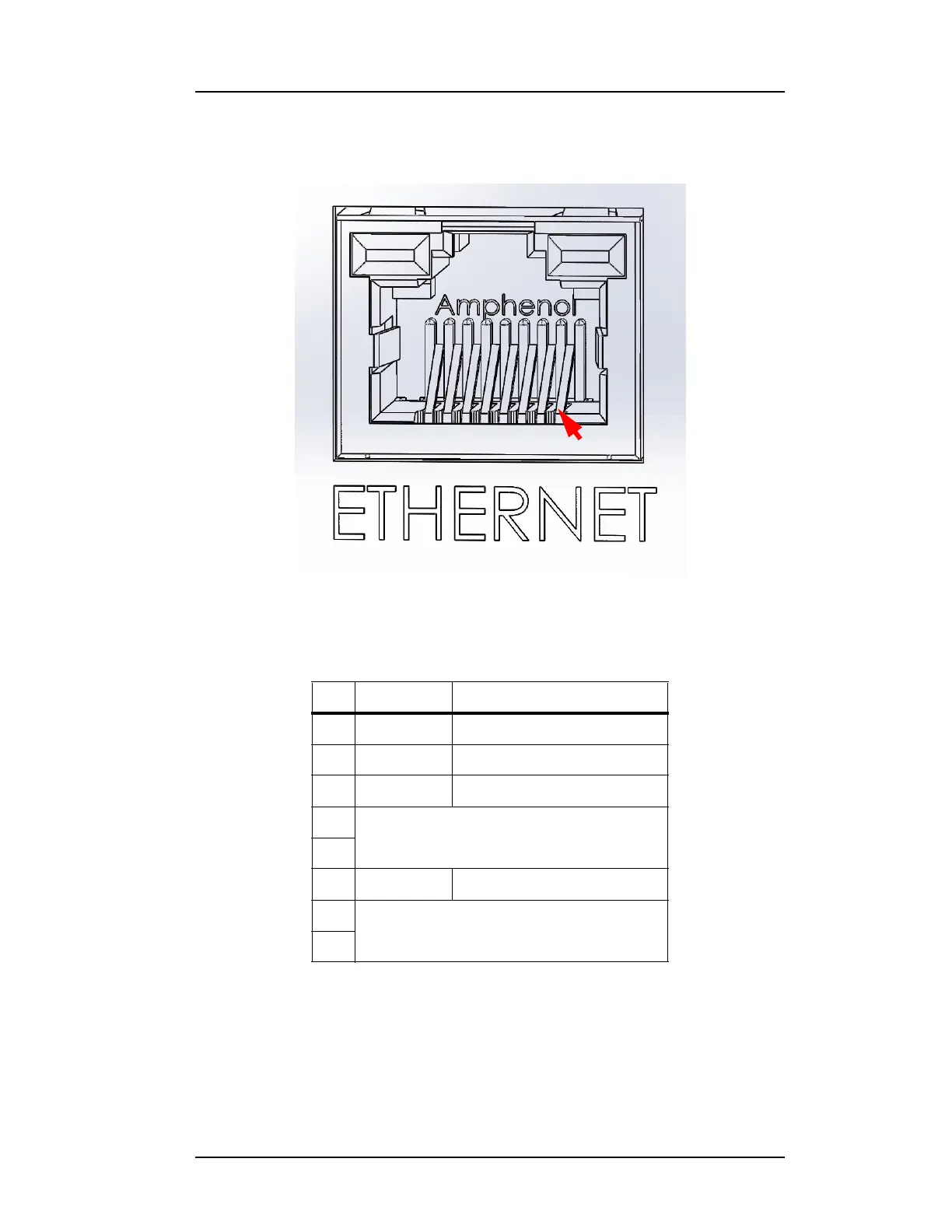

Figure A-2 Ethernet Connector Socket Pin out
Pin 1
