Product Overview and General Specifications
18
Instruction Manual – Enova DGX 8/16/32/64 Digital Media Switchers
Enova DGX 32
Enova DGX 64
Rear View Components
Input and output boards (some slots may be empty, depending on the configuration)
Expansion boards (optional)
CPU/Control board
Enova DGX 8/16/32: two standard redundant power supplies
Enova DGX 64: four standard power supplies (fourth power supply provides redundancy)
Serial number
MAC address

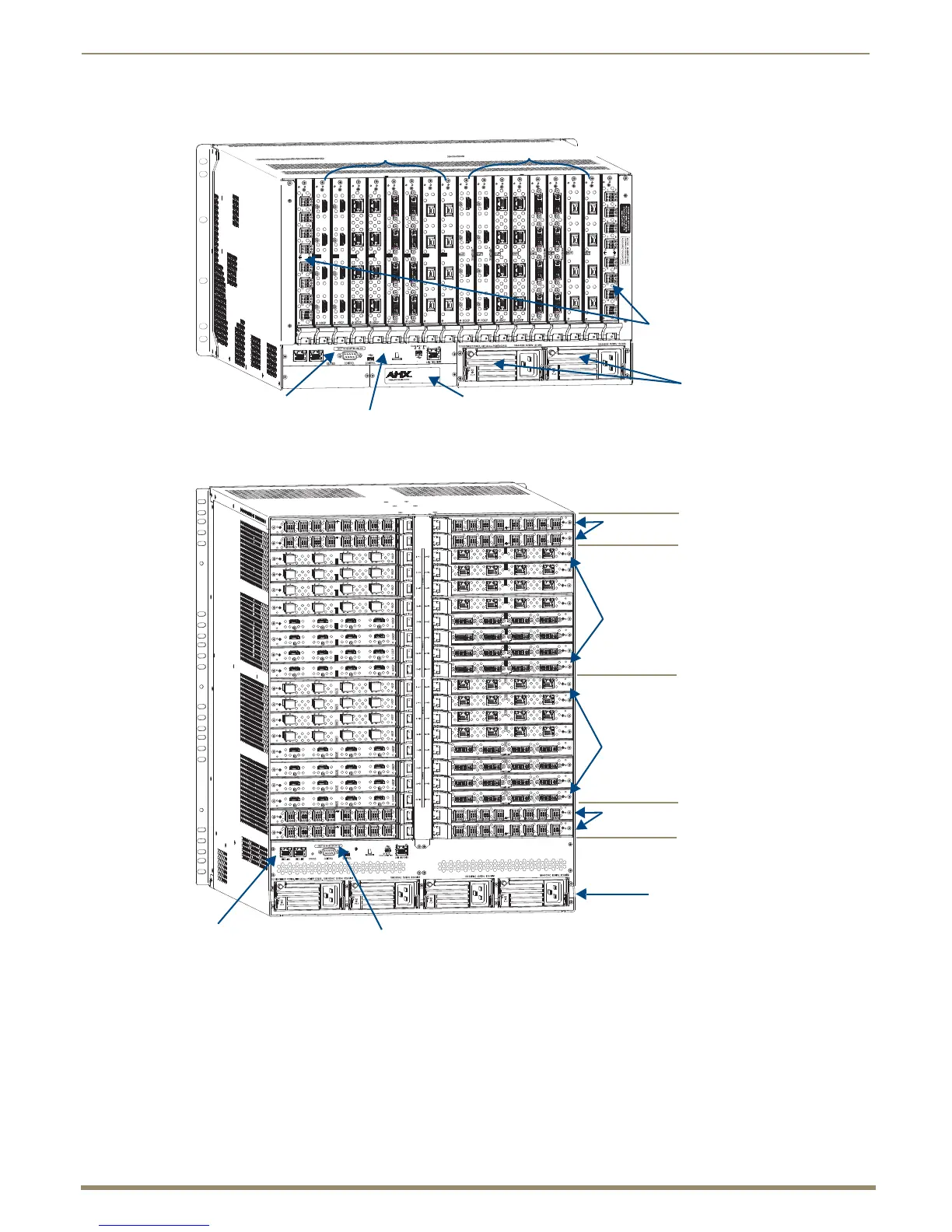

FIG. 5 Rear view of a fully loaded Enova DGX 32 enclosure with two expansion boards
FIG. 6 Rear view of a fully loaded Enova DGX 64 enclosure with eight expansion boards
Enova DGX 32 rear
view
Power supplies
MAC address
CPU/Control board
Audio Insert/Extract Boards
in expansion slots
Input boards (up to 8)
Output boards (up to 8)
Serial number
Note: If the enclosure has any
empty input or output board slots
(which are numbered for
additional boards), they can be
used to expand the system.
If the expansion slots are empty,
expansion boards can be added.
Enova DGX 64 rear
Power supplies
MAC address
CPU/Control board
Audio Insert/Extract Boards
Note: If the enclosure has
numbered for additional
board slots (which are
any empty input or output
boards), they can be used
to expand the system.
If the expansion slots are
empty, expansion boards
can be added.
Input boards
Output boards
AIE Boards
in expansion slots
in expansion slots
(up to 16 in the input board slots)
(up to 16 in the output board slots)
