UG-570 AD9361 Reference Manual

| Page 70 of 128

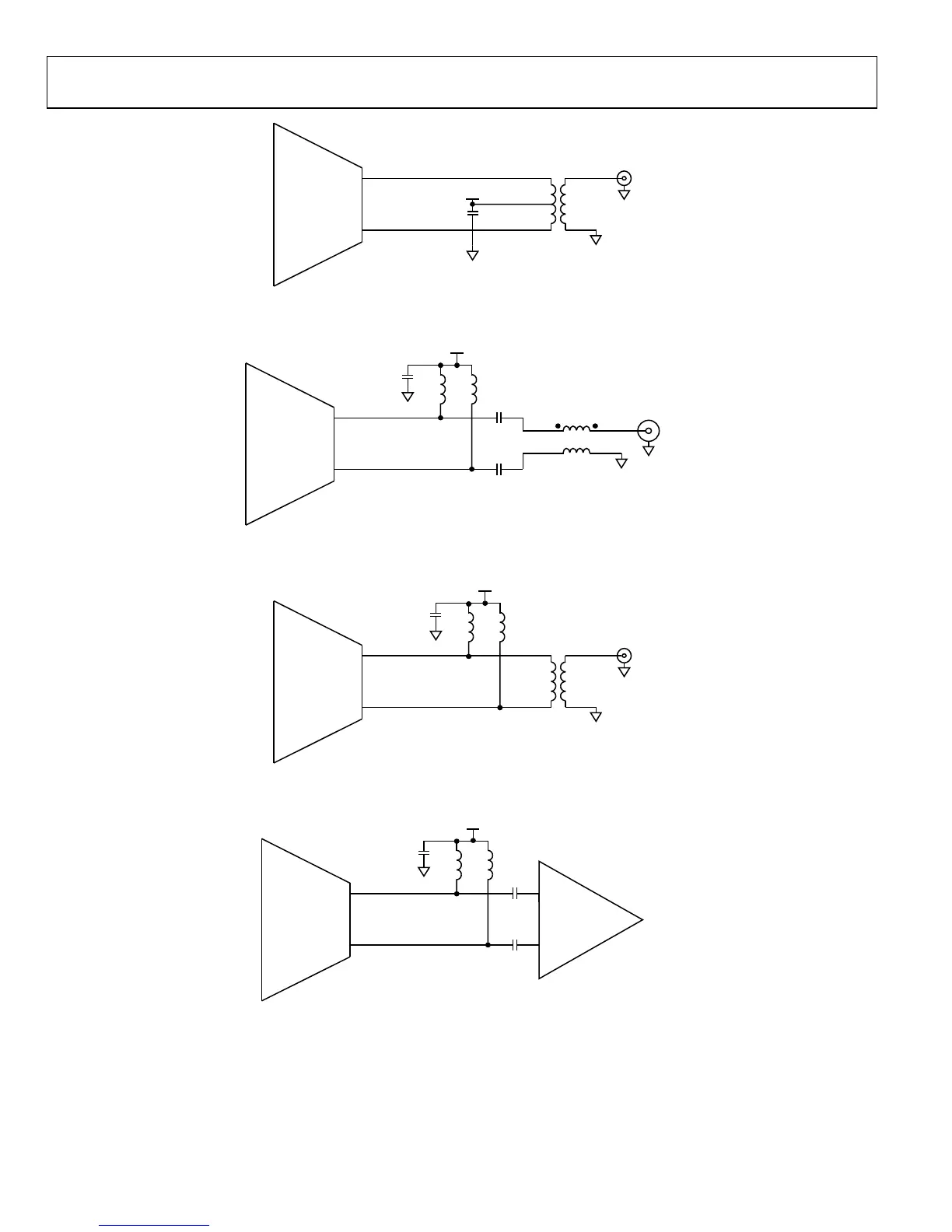

Figure 51. AD9361 Tx Output Differential Interface Configurations

Figure 52. AD9361 Tx Output Differential Interface Configurations

Figure 53. AD9361 Tx Output Differential Interface Configurations

Figure 54. AD9361 Tx Output Differential Interface Configurations

TXA_N

TXA_P

TX OUTPUT

1.3V

11668-052

TXA_N

TXA_P

TX OUTPUT

1.3V

11668-053

TXA_N

TXA_P

TX OUTPUT

1.3V

11668-054

TXA_N

TXA_P

TX OUTPUT

1.3V

DRIVER

AMPLIFIER

11668-055
