44..33 Startup and Switch-off SequencesStartup and Switch-off Sequences
This section describes what takes place when you switch the Network Master
on and off as well as when you start up and close down an application.
44..33..11 Instrument StartupInstrument Startup
When you turn on the Network Master, the first screen displayed is a splash
screen - introducing you to the GUI concept of the
desktop/workspace
and the
various screen types (see the figure in the
GUI Concept
section). Then the
Application Selector screen is displayed.
If the Application Selector screen does not appear after powering up, the
Network Master may have failed. Try the following procedure.
1. Unplug the AC adapter and remove batteries to turn off the Network Master
completely.
2. Put the batteries in the Network Master and connect the AC adapter.
3. Press the power button of the Network Master.
If the problem persists, please contact an Anritsu Service and Sales office.
Contact information can be found on the last page of the printed version of this
manual, and is available in a separate file on the PDF version.
44..33..22 Application StartupApplication Startup
When you touch an icon on the
Application Selector
screen to start an
application, a
workspace
is created for that application and the relevant data is
loaded into it. When the loading is complete, you are prompted to select the
instrument resources (i.e. ports) that will be allocated to the application/test.

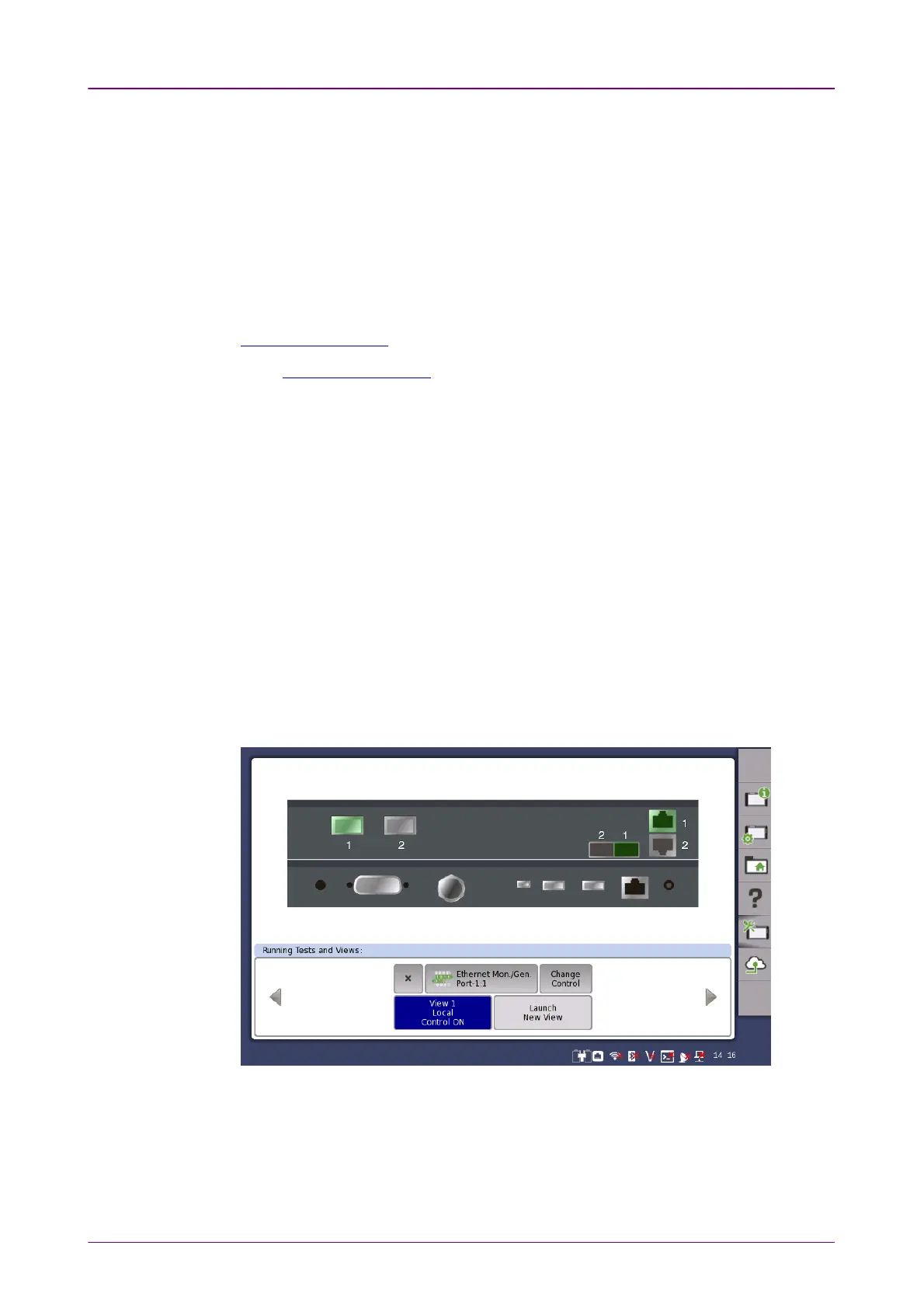

After the selection of resources, the
Ports Setup
screen is displayed, with the
interface type(s) relevant for the selected application.
