55..22..11 Transmitter SetupTransmitter Setup
55..22..11..11 Physical SetupPhysical Setup

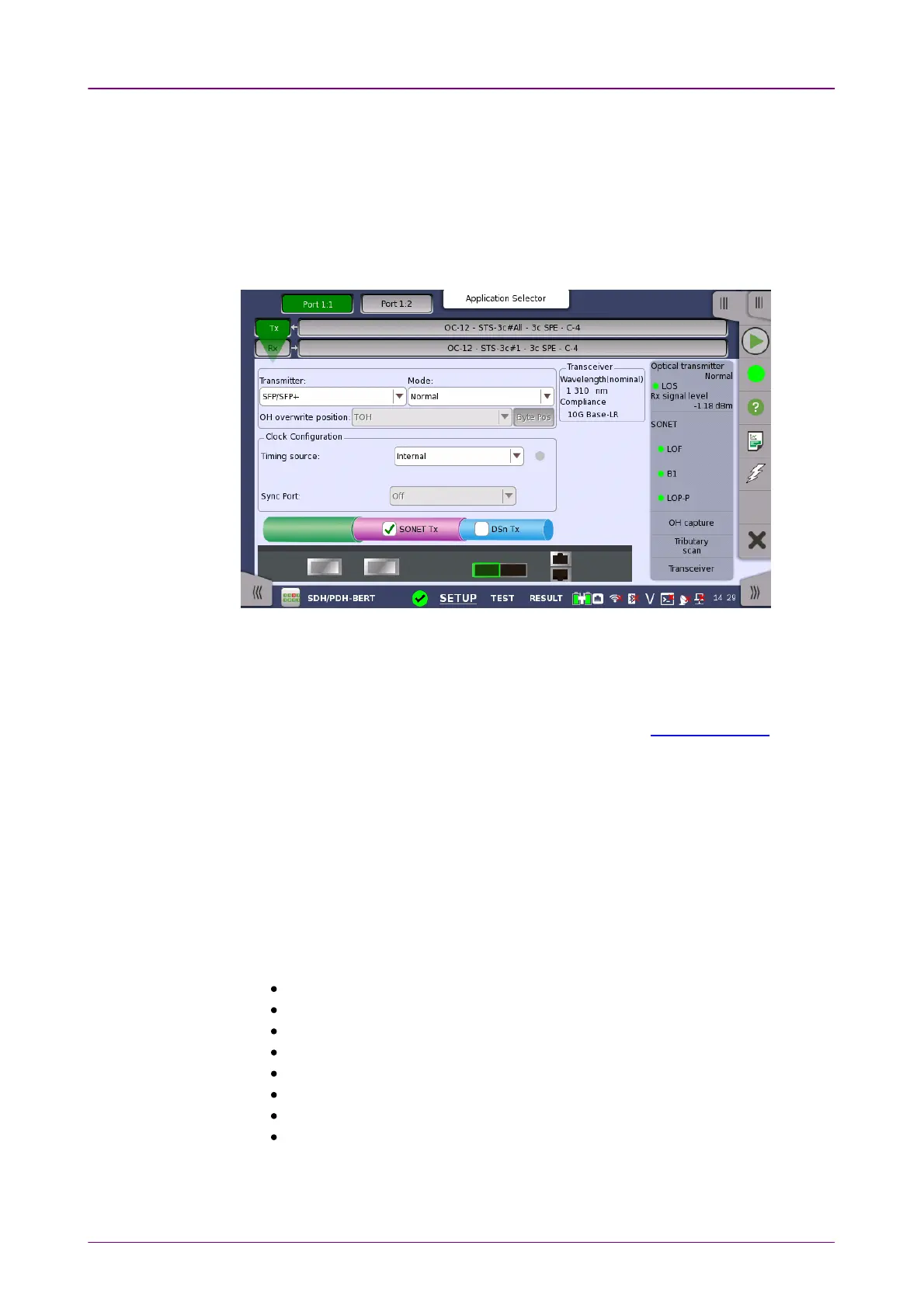

When the transmitter is set up with a SONET interface, selecting the TxTx button
in the navigation area will launch the following screen. (Note that the SONETSONET
TxTx check box above the connector panel illustration is selected.)
This screen allows you to enable the optical or electrical interface of the
SONET transmitter. It can also be used to inspect the current status of the
selected port.
The configuration options available in the setup area of the screen are
described below. The status information is described in "Status Summary".
TransmitterTransmitter
Use the TransmitterTransmitter drop-down menus to select to the transmitter.
ModeMode
Use the ModeMode drop-down menus to select to the behavior of the transmitter.
OH overwrite positionOH overwrite position
Only enabled when the OH overwriteOH overwrite has been selected to the behavior of the
transmitter. Use the drop-down menu to select the relevant overwrite position.
The available values are:
TOHTOH
A1/A2 byteA1/A2 byte
K1/K2 byteK1/K2 byte
S1 byteS1 byte
DCC1-3 byteDCC1-3 byte
DCC4-12 byteDCC4-12 byte
J0 byteJ0 byte
1 byte of TOH1 byte of TOH
When '1 byte of TOH' is selected, touch the Byte PosByte Pos button to launch the 11
Byte of TOHByte of TOH dialog box. Select the relevant byte in the dialog.
