Software version
Displays the version of the software installed on the Network Master.
Check for updates
Checks for software updates and, if available, starts downloading.
Clear cache
Clears a temporary file saved under downloading by suspending downloading
the update data.
This button is available only when there is a temporary file.
44..22..22 Application ToolbarApplication Toolbar
The
Application toolbar
consists of two columns plus the
Instrument toolbar
.

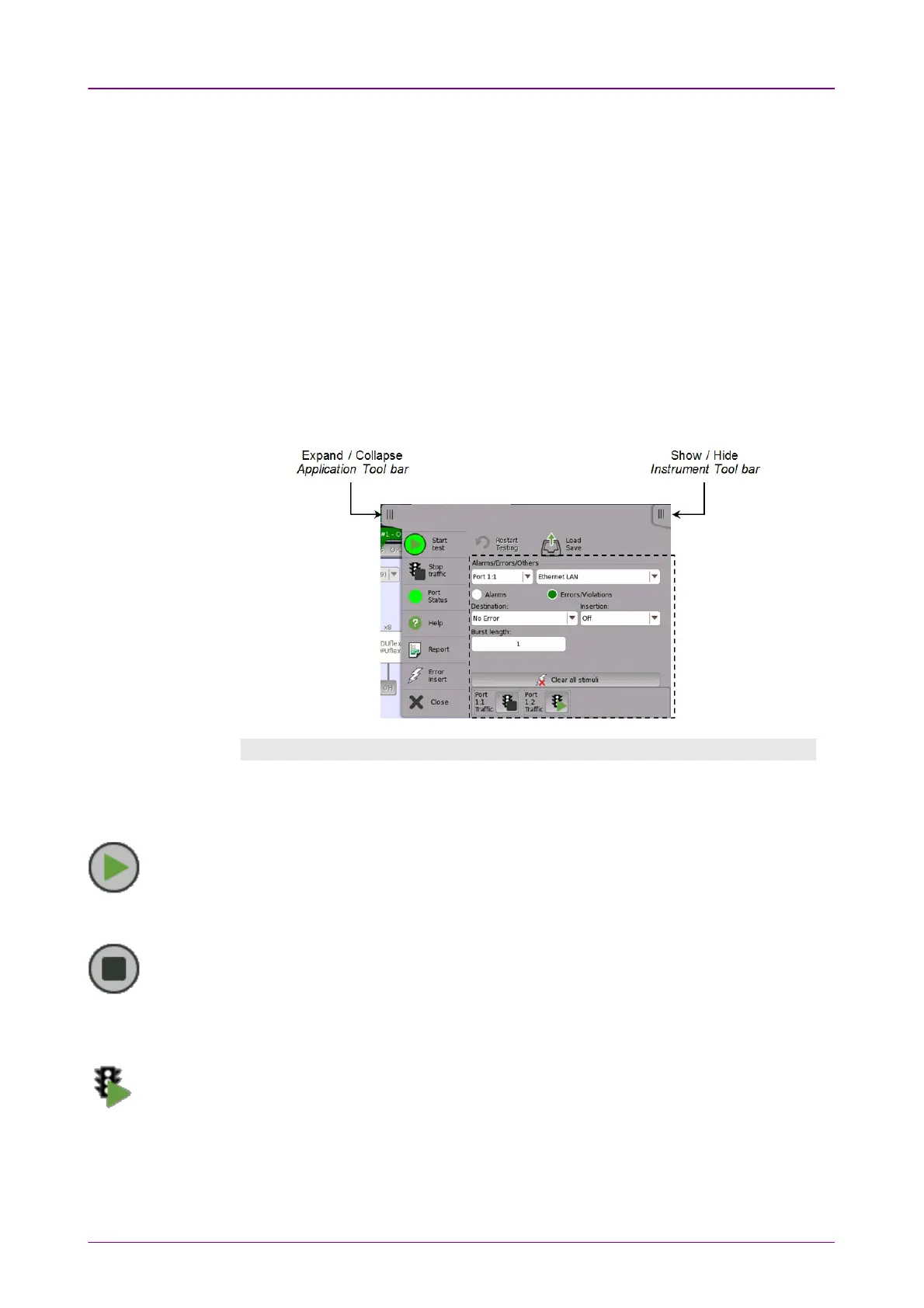

You can expand/collapse the toolbar as shown in the figure below. The left-
most column, which is always displayed, contains the most commonly used
functions and status indicators.
Left-most columnLeft-most column
The left-most column contains the following functions and status indicators:
StartStart
Touch the StartStart icon to start the currently selected application/test. The icon changes
to the StopStop icon shown below, which can then be used to stop the test.
StopStop
Touch the StopStop icon to stop the currently running application/test. The back color
indicates the pass/fail status. When the test has stopped, the icon changes to the StartStart
icon shown above.
Traffic StartTraffic Start
This icon appears in case of applications having traffic generation. Touch the TrafficTraffic
StartStart icon to start sending traffic of all ports under test. The icon changes to the
Traffic StopTraffic Stop icon shown below.
