FollowsFollows
TCMTCM
SDH/SONETSDH/SONET
switchingswitching
Physical StatusPhysical Status

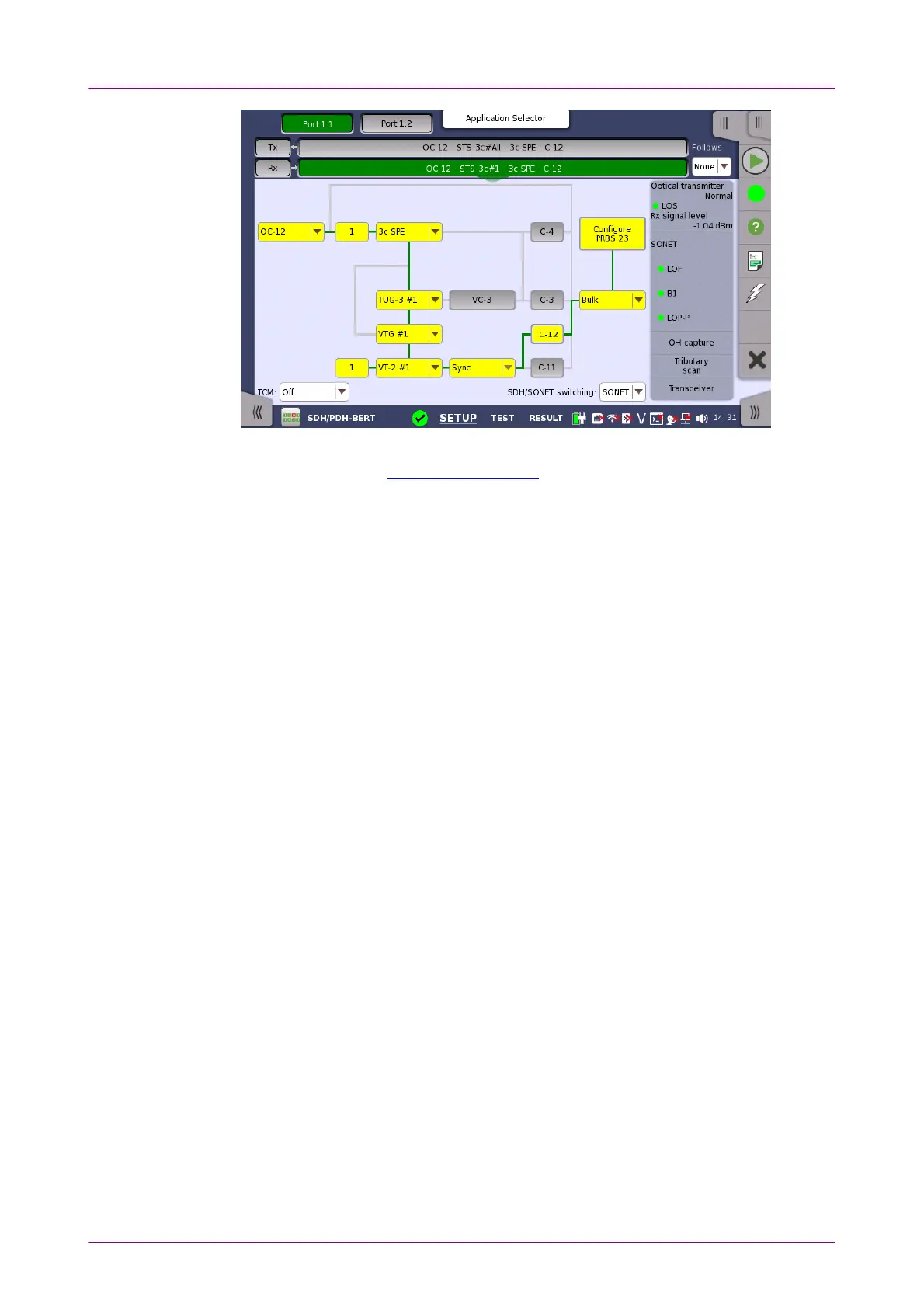

The manner of setting up the SONET interface of receiver is the same as that of
transmitter. Refer to
SONET Frame Setup
.
To make the currently selected receiver follow either the transmitter or Port 1
receiver (i.e. copy its settings), touch the right-most button in the navigation
area and select the relevant value in the drop-down menu. The receiver settings
continue to follow the change of either the transmitter or Port 1 receiver. The
default setting is NoneNone. Note that the Port 1 receiver cannot follow the Port 2
receiver.
Select the
TCM
(Tandem Connection Monitoring). The available TCM is
decided by multiplex structure. If you select other TCM, the multiplex structure
on the setup area will be changed.
The possible settings are:
OffOff
Z5 (STS-3c)Z5 (STS-3c)
Z5 (STS-1)Z5 (STS-1)
Z6 (VT-2/1.5)Z6 (VT-2/1.5)
Allows you to switch between SDH and SONET.
55..22..33 Status InformationStatus Information
This section describes the status information available for the SONET layer in
the status area of the Ports SetupPorts Setup screen.
55..22..33..11 Status SummaryStatus Summary
The status summary displayed for the SONET layer consists of the following
information:
The topmost part of the status area gives you access to information about the
current physical status of the selected interface. A summary consisting of the
most relevant status indicators is displayed constantly. By touching the
summary, you can launch a display that contains the detailed status
information.
