FollowsFollows
TCMTCM
SDH/SONETSDH/SONET
switchingswitching
TOH EditorTOH Editor
The general principle in setting up the SONET frame is to select the relevant
values for the various containers in the multiplexing structure. This is done
either via a drop-down menu or via a launched dialog box, by touching a drop-
down menu or a button in the frame structure diagram.
Note that the currently 'active path' in the structure is highlighted. Note also
that the changes you make will be reflected in the text displayed in the SONET
button in the navigation area, if relevant.
To make the Port 2 transmitter follow the Port 1 transmitter (i.e. copy its
settings), touch the right-most button in the navigation area and select the Tx1Tx1
in the drop-down menu. The Port 2 settings continue to follow the Port 1
transmitter change. The default setting is NoneNone. Note that the Port 1 transmitter
cannot follow the Port 2 transmitter.
Select the
TCM
(Tandem Connection Monitoring). The available TCM is
decided by multiplex structure. If you select other TCM, the multiplex structure
on the setup area will be changed.
The possible settings are:
OffOff
Z5 (STS-3c)Z5 (STS-3c)
Z5 (STS-1)Z5 (STS-1)
Z6 (VT-2/1.5)Z6 (VT-2/1.5)
Allows you to switch between SDH and SONET.

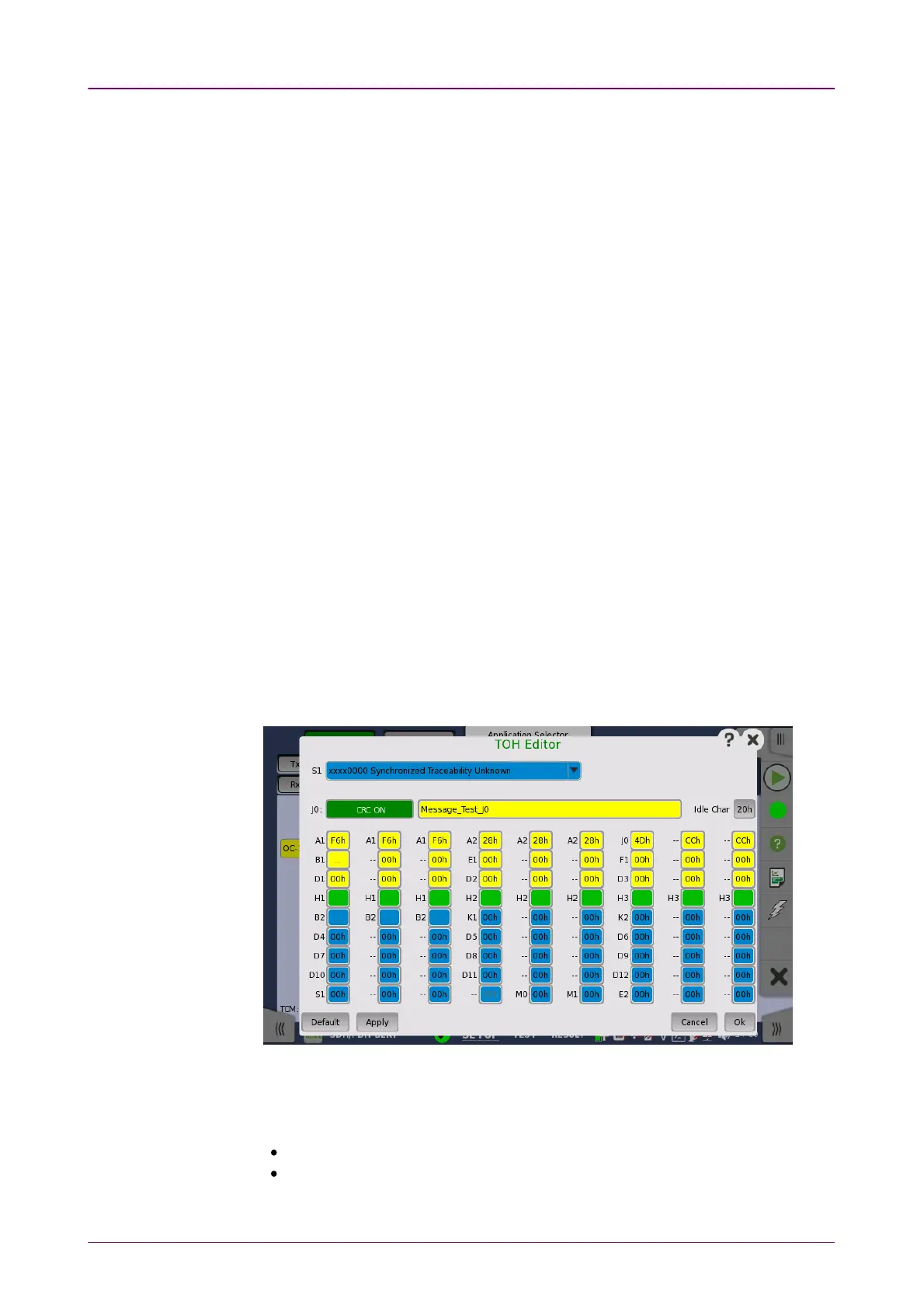

You can configure transport overhead (TOH) in a special dialog box (TOHTOH
EditorEditor), which is launched when you touch the TOHTOH button.
The setup principle is the same in this editor dialog box as in the SONET
structure. Touching a button or opening a drop-down menu will open for new
editor dialog boxes, new value selections etc.
S1S1: Synchronization status
J0J0: Regenerator section trace
Idle Char is an ASCII code used for the padding.
