ConnectorConnector
Input modeInput mode
Input sensitivityInput sensitivity
FollowsFollows
Select the physical type of the relevant output connectors located on the back
panel of the instrument. Choose UnbalancedUnbalanced to link to the corresponding
unbalanced connector, or choose BalancedBalanced to link to the corresponding
balanced connector. A balanced input is taken from RJ48 connector.

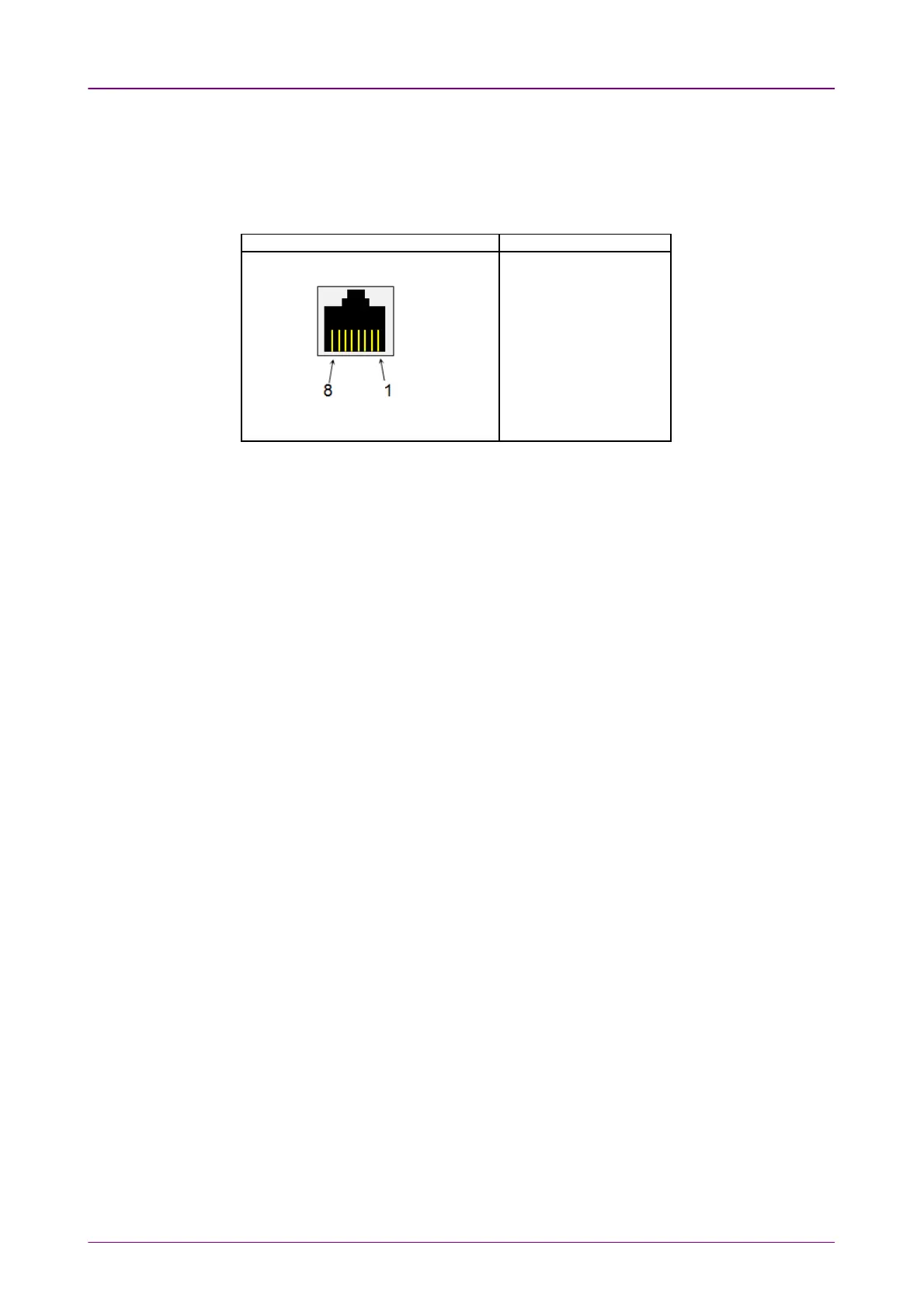

Pin assignment of E1 Balanced ConnectorsPin assignment of E1 Balanced Connectors
RJ-48 PinRJ-48 Pin SignalSignal
1 RX, Ring
2 RX, Tip
3 Ground
4 TX, Ring
5 TX, Tip
6 Ground
7 No connect
8 No connect
Be sure to confirm the cable type. For E1 cable, there are the straight cable and
the cross cable.
Select the mode of input.
TerminateTerminate
Used when the instrument is used as a tester and the receiver is the only
device connected to the line. The input impedance is nominal.
BridgedBridged
Used when the receiver is connected directly in parallel to a line carrying live
traffic. Please observe that this way of connecting may disturb the monitored
line - connection through a protected monitor point, as well as using the input
mode MonitorMonitor, is recommended instead.
MonitorMonitor
Used when connecting to protected monitoring points. The input impedance
is nominal.
Set the sensitivity of the input. The available options are:
Full sensitivityFull sensitivity
Signal levels down to the maximum sensitivity on the instrument are
accepted.
-20 dB-20 dB
Input signal attenuated by -20 dB or more relative to the nominal level will be
considered Loss Of Signal.
-33 dB-33 dB
Input signal attenuated by -33 dB or more relative to the nominal level will be
considered Loss Of Signal.
55..33..22..22 E1 Signal SetupE1 Signal Setup
Touching the receiver's E1E1 button in the navigation area will display the screen.
To make the currently selected receiver follow either the transmitter or Port 1
receiver (i.e. copy its settings), touch the drop-down menu in the navigation
area and select the relevant value. The receiver settings continue to follow the
change of either the transmitter or Port 1 receiver. The default setting is NoneNone.
Note that the Port 1 receiver cannot follow the Port 2 receiver.
