Burst modeBurst mode
1-Byte incremental1-Byte incremental

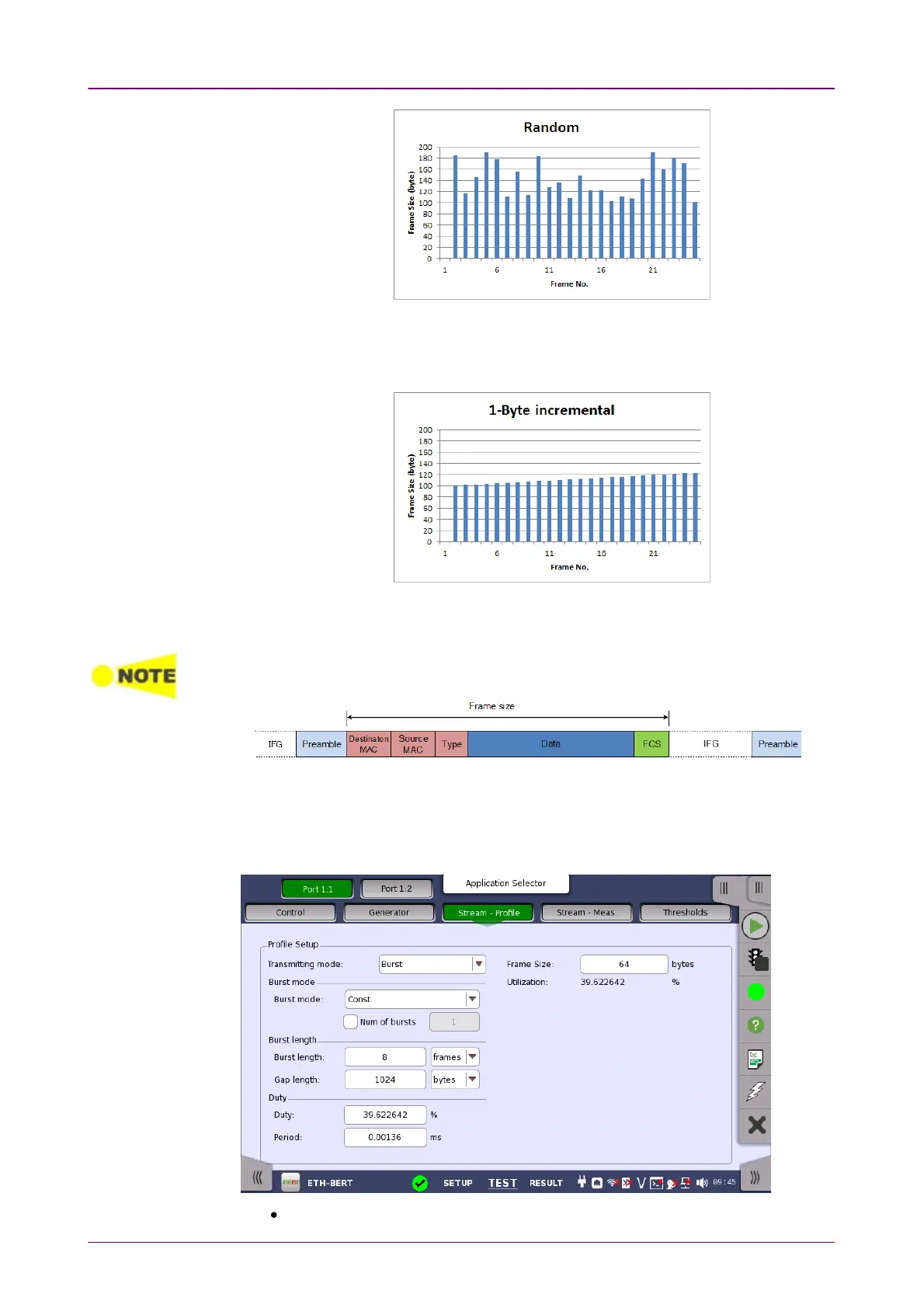

Steps the frame size from StartStart to EndEnd in increment of one byte in frame-by-
frame. The following figure shows an example of frame sizes when 1-Byte1-Byte
incrementalincremental is selected.
Only ConstantConstant and RandomRandom are available when the interface bit rate is 200
Gbps or 400 Gbps.
Frame size is protocol headers and payload combined. Frame size does not include
preamble and interframe gap.
When setting Frame size to 52 byte or less and Interface type is SFP+SFP+, the actual rate
(Utilization) does not reach to 100% even if line load is set to 100%.
Set the burst generation mode. The normal Ethernet frames are not sent in the
burst mode.
OffOff: stops sending the stream.
