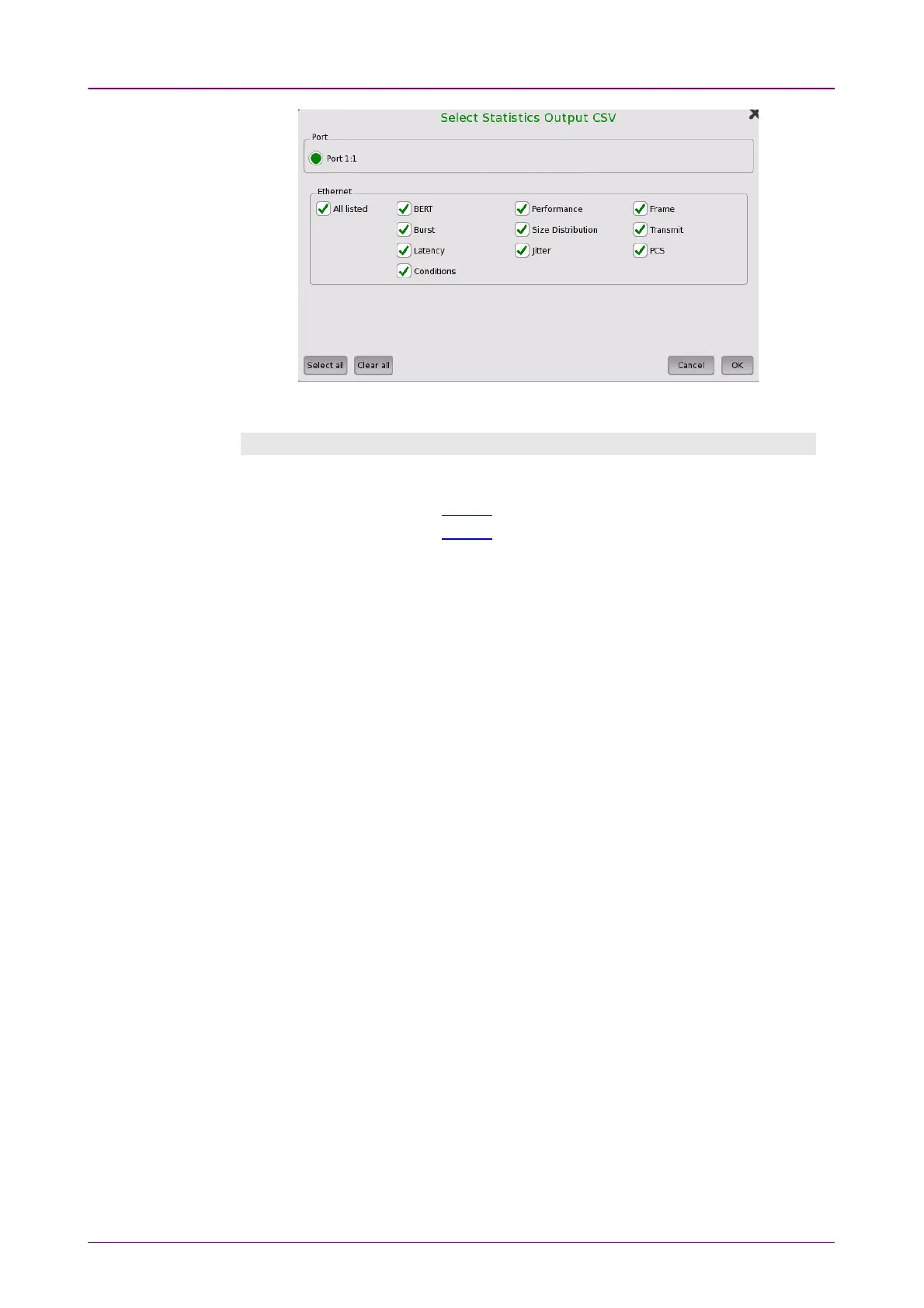

Touch OKOK, and enter the filename.
ResultsResults
The result items varies depending on the configuration in Ports Setup screen.
OTN Alarms/Errors Refer to Results in "OTN Application".
OTN Performance Refer to Results in "OTN Application".
BERT BERT
Pattern bit count, Pattern errors, PRBS Sync Alarm, Seq.
errors, Seq. sync. lost, Frame loss
M.2100
ES, SES, ALS, UAT, AVT, EFS
Throughput
Data layer, Network layer, Link layer, Phys. (preamble),
Physical layer, Utilization layer
Performance Frequency *
Min. Deviation, Max. Deviation, Avg. Deviation
Utilization
Min. utilization, Max. utilization, Avg. utilization
Throughput
Min. throughput, Max. throughput, Avg. throughput
Frame rate
Min. frame rate, Max. frame rate, Avg. frame rate
Frame Alarms
LOS, Link, Remote fault
Good Frames
Total, Good frame, Unicast frame, Multicast frame,
Broadcast frame, Pause frame, VLAN frame, MPLS
frame, MPLS-TP frame, PBB frame, VLAN max level,
VLAN min level, MPLS max level, MPLS min level
Errored Frames
Errored frame, Fragmented, Oversized, Undersized,
FEC errored, Oversized & FCS errored, Error symbol
Layer3 Error
IP checksum errored
Other Frames
Collisions, Preamble violations, IFG violations
