RefreshingRefreshing
informationinformation
Displaying detailedDisplaying detailed
informationinformation

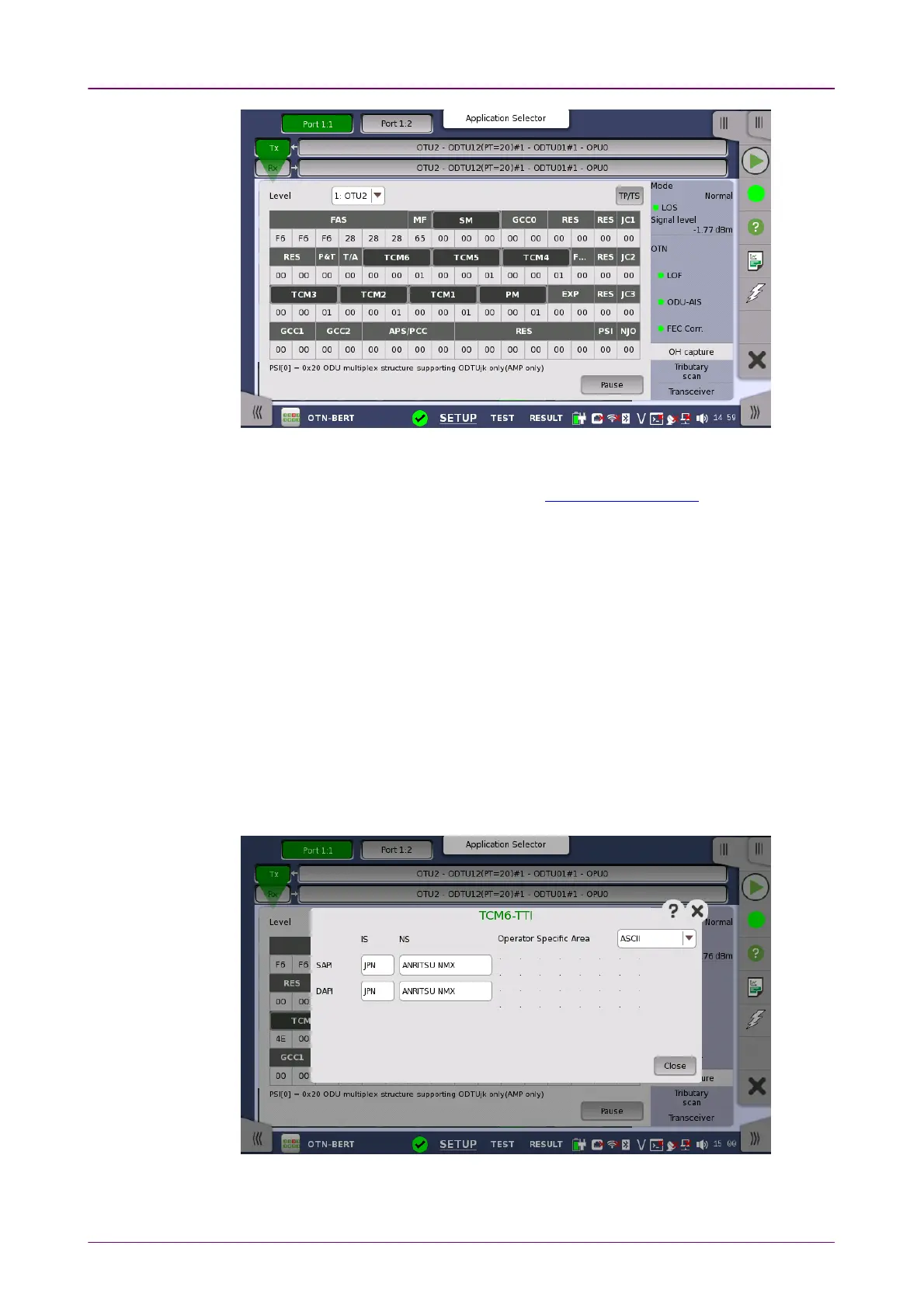

This screen shows OTU/ODU/OPU OH capture data for one frame at time. Use
the LevelLevel drop-down menu to select which multiplexing level to display. For a
description of the frame structure, see the Overhead Dialog box section under
the ports setup of OTN.
If higher order layer is mapped, TP/TSTP/TS button appears. Touching TP/TSTP/TS will
launch the dialog box displaying tributary ports/slots of both Tx and Rx.
Refresh once
When touch the PausePause button, the UpdateUpdate button appears at left side of the
PausePause one and information is not updated. Touching the UpdateUpdate button will
refresh the dialog information once.
Refresh continuously
When the dialog is open and touch the PausePause button at refresh once mode,
information is updated continuously.
Detailed overhead byte information can be accessed by touching the name of a
specific byte. This will launch a separate dialog box containing a description of
and details about the selected byte.
In the byte-specific dialog box, select the display format (ASCII or Hex) using
the Operator Specific AreaOperator Specific Area drop-down menu.
