Selecting type ofSelecting type of
resultsresults
Studying a specificStudying a specific
resultresult
Selecting notationSelecting notation
If you have stopped measurement during the interval time, the measurement results of
the current interval are discarded. The log of the current interval is not displayed in BackBack
field.
In this case, result data are re-calculated excluding the data of the current interval
when the measurement is stopped. This causes that "Count" and "Ratio" displayed
after the measurement will be different from that of during measurement.
The sum of interval time (multiplied interval time by the number of back logs) may
not match the differential time between displayed time at left top and right top after
the measurement.
Open the left drop-down menu in the top row of buttons to select which results
you want to display on the screen.
OTN - Alarms/Errors
OTN - Performance
CPRI/OBSAI - Alarms/Errors
CPRI/OBSAI - Frame
CPRI/OBSAI - FEC
Delay - Round Trip Time
OTN options appear if the CPRI/OBSAI signal is carried by OTN.
Round Trip Time appears if DelayDelay check box is selected on Delay screen in
Test Setup of BERT application.

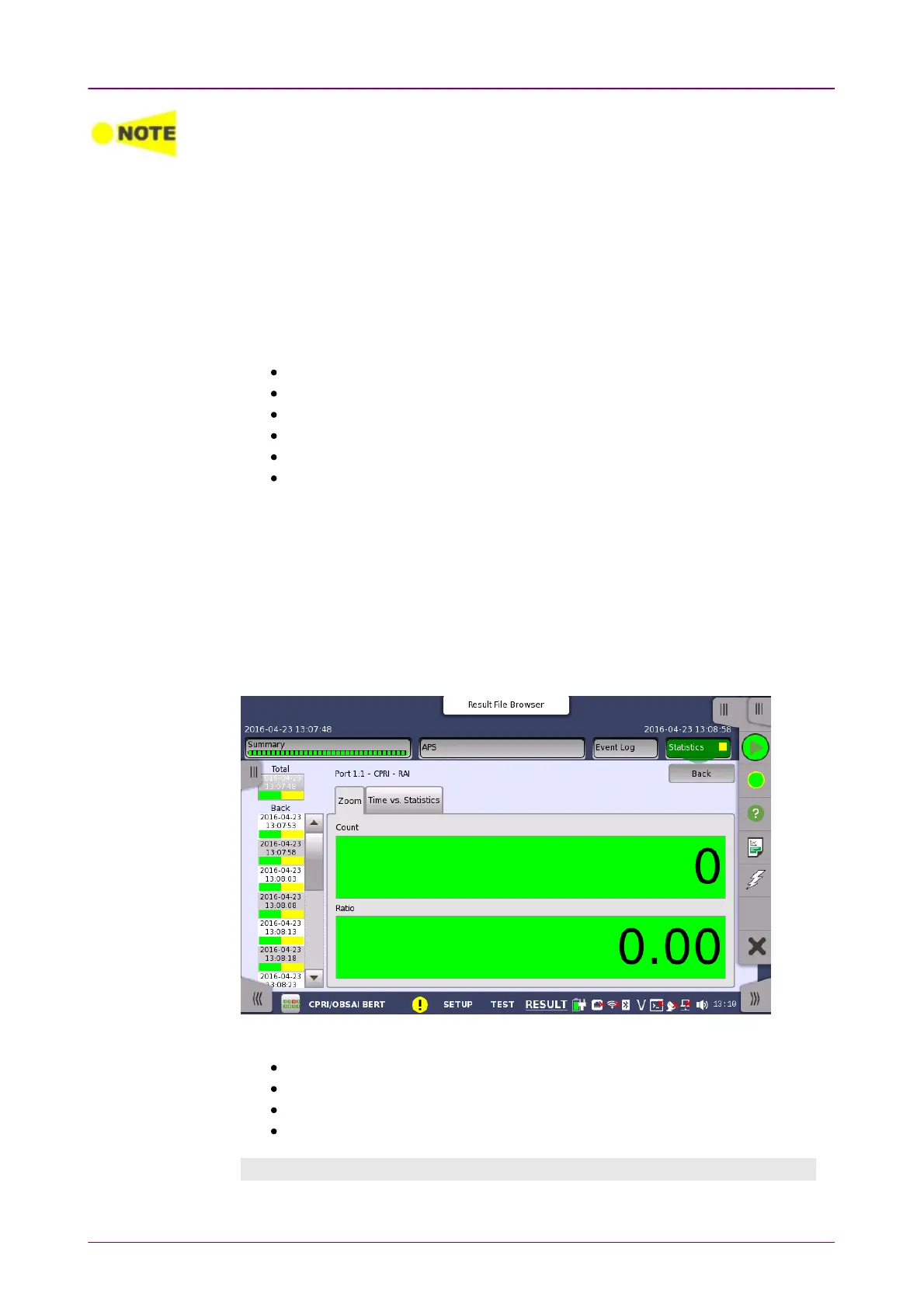

Touch a specific cell in a result table to zoom in on the corresponding result
item. The CountCount and RatioRatio fields are displayed on a ZoomZoom tab. A Time vs.Time vs.
StatisticsStatistics tab is also available. Use the BackBack button or touch the zoom filed to
return to the statistics screen.
Select the required notation for the results from the notation drop-down menu.
UnformattedUnformatted - e.g. 71892
SI prefixSI prefix - e.g. 71.891 k (k means "kilo")
EngineeringEngineering - e.g. 71.892E3
ScientificScientific - e.g. 7.1892E4
ResultsResults
Results are displayed according to your choice.
