Frame HeaderFrame Header
FOXFOX: ASCII code bit sequence of "The quick brown fox jumped over the lazy
dog 1234567890".
55555555: Repetition of "0101010101010101".
PRBS9PRBS9 to PRBS31PRBS31: Pseudo-random bit sequence. For PRBS9, its bit length is
511 (=2
9
-1).
HF TESTHF TEST: High frequency test pattern. (Defined in IEEE802.3 Annex 48A)
CRPATCRPAT: Compliant random data pattern.
JTPATJTPAT: Jitter tolerance test pattern.
SPATSPAT: Supply noise pattern.
User 32 bitUser 32 bit: Repetition of the user defined 32 bits.
ZEROZERO: All bits are "0".
If you select the User 32 bitUser 32 bit pattern, you can edit the bit pattern by touching
the right-hand field.

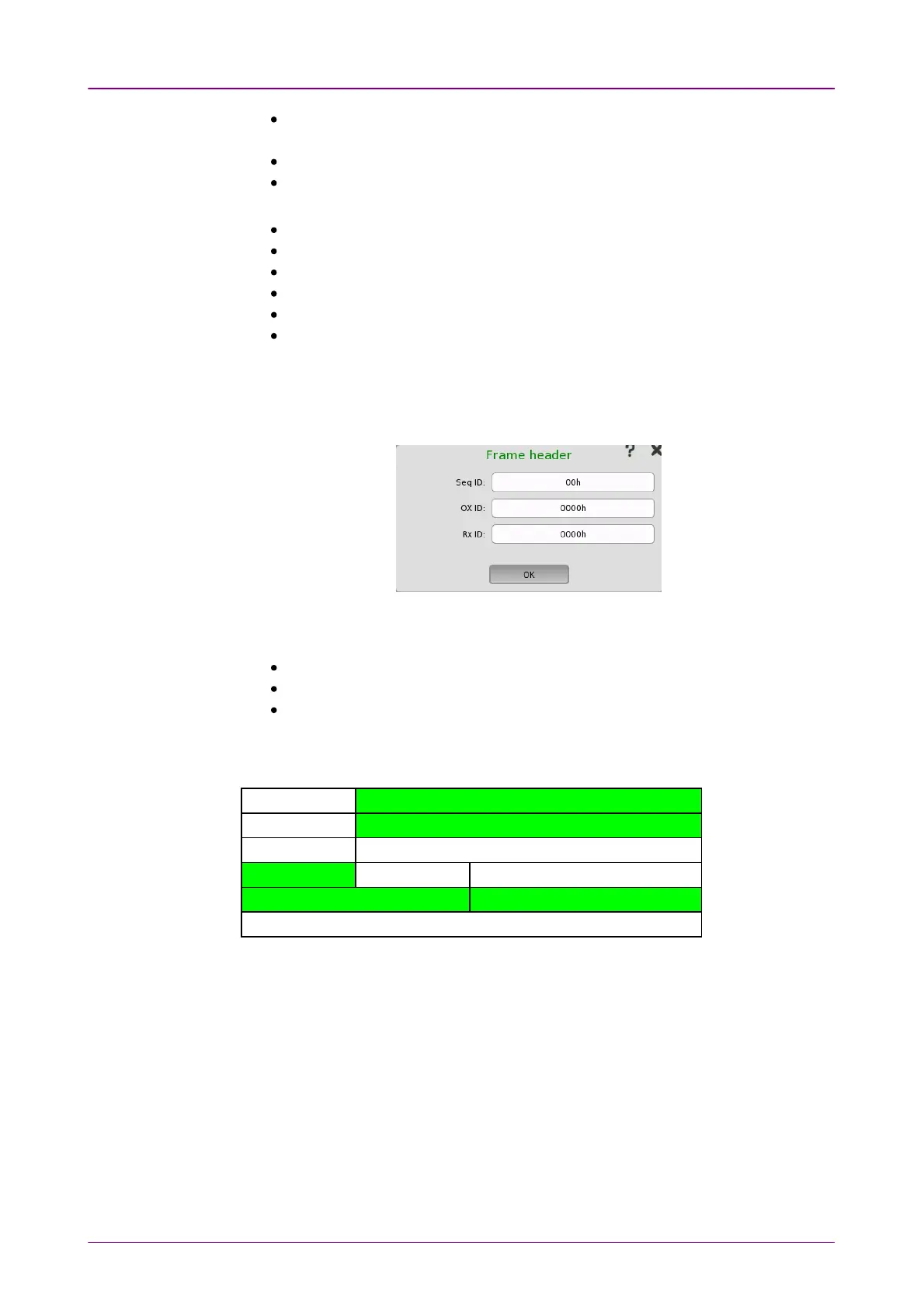

Touching the Frame HeaderFrame Header field launches the dialog box shown below.
This dialog box allows you to configure the frame header for framed Fibre
Channel signals. The following parameters can be edited:
Seq IDSeq ID: Unique frame sequence identifier
OX IDOX ID: Originator Exchange ID
Rx IDRx ID: Responder Exchange ID
The figure below shows the full frame header structure in four bytes by six
rows. The parts which can be edited are shown as colored boxes.
R_CTL Destination ID (D_ID)
CS_CTL Source ID (S_ID)
TYPE Frame control (F_CTL)
SEQ_ID DF_CTL SEQ_CNT
OX_ID RX_ID
Parameter field (PARM)
