SPECIFIC APPLICATION BY MODEL (Continued)
Nieco Broiler – Model 950, 960, 980, 1424
• Nozzle Quantity/Type: One 2W nozzle
• Nozzle Height: 20 in. (508 mm) above top of appliance. See
Figure 4-89a.
• Nozzle Location: 6 1/2 in. (165 mm) back from front edge of
appliance. See Figure 4-89a.
• Nozzle Aiming Point: Aimed at center of opening. See Figure
4-89a.
Nieco Broiler – Model 950, 960, 980, 1424 (with Catalytic
Converter)
• Nozzle Quantity/Type: Two 2W nozzles
• Nozzle Height: 20 in. (508 mm) above top of appliance. See
Figure 4-89b.
• Nozzle Location: 6 1/2 in. (165 mm) back from front edge of
appliance. See Figure 4-89b.
• Nozzle Aiming Point: Aimed at center of opening. See Figure
4-89b – Side View.
• Nozzle Aiming Point: Aimed at point 3 in. (76 mm) each side
of center. See Figure 4-89b – Front View.
Nieco Broiler – Model 9015 (With or Without Catalytic
Converter)
• Nozzle Quantity/Type: Two 2W nozzles
• Nozzle Height: 20 in. (508 mm) above top of appliance. See
Figure 4-90.
• Nozzle Location for Large Chamber: 6 1/2 in. (165 mm)
back from front edge of appliance. See Figure 4-90.
• Nozzle Location for Small Chamber: Nozzle to be located
6 1/2 in. (165 mm) back from front edge of appliance and
12 in. (305 mm) over from large chamber nozzle.
• Nozzle Aiming Point for Large Chamber: Aimed at center of
opening. See Figure 4-90.
• Nozzle Aiming Point for Small Chamber: Nozzle to be aimed
12 in. (305 mm) over from large chamber nozzle aiming point.

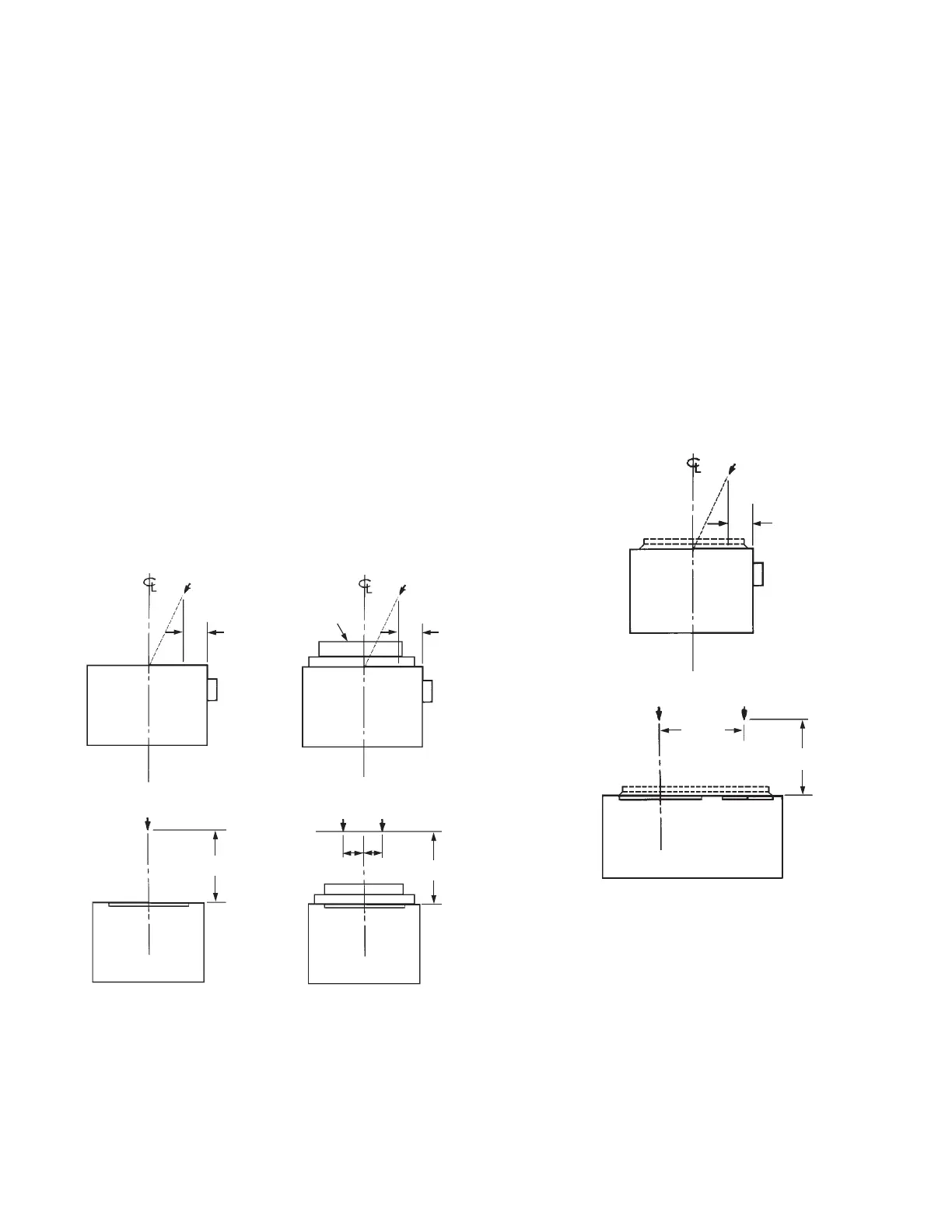

FIGURE 4-90
007010
6 1/2 IN.
(165 mm)
SIDE VIEW
2W NOZZLE
CENTERLINE OF
LARGE OPENING
FIGURE 4-89a
006486
FRONT VIEW
FIGURE 4-89b
007034
6 1/2 IN.
(165 mm)
SIDE VIEW
2W NOZZLE
CENTERLINE OF
LARGE OPENING
FRONT VIEW
3 IN.
(76 mm)
3 IN.
(76 mm)
CATALYTIC
CONVERTER
6 1/2 IN.
(165 mm)
SIDE VIEW
FRONT VIEW
(2) 2W NOZZLES
20 IN.
(508 mm)
CENTERLINE OF
LARGE OPENING
SECTION 4 – SYSTEM DESIGN
UL EX3470 ULC EX3470
2014-SEP-01 REV. 11 PAGE 4-45
R-102 Restaurant Fire Suppression Manual
12 IN.
(305 mm)
20 IN.
(508 mm)
20 IN.
(508 mm)
