SPECIFIC APPLICATION BY MODEL (Continued)
Nieco Broiler – Model MPB94 – Low Proximity (With or
Without Catalytic Converter)
Nozzle Quantity/Type: Two 245 nozzles
Nozzle Height: 8 in. to 15 in. (203 mm to 381 mm) measured
from top of converter
Nozzle Location: 6.5 in. (165 mm) from front or back edge of
hazard.
First nozzle positioned 7.5 in. (190 mm) to
the right from center of hazard.
Second nozzle positioned 7.5 in. (190 mm) to
the left from center of hazard.
See Figure 4-93.
Nozzle Aiming Point: Aimed at opening on respective center
lines

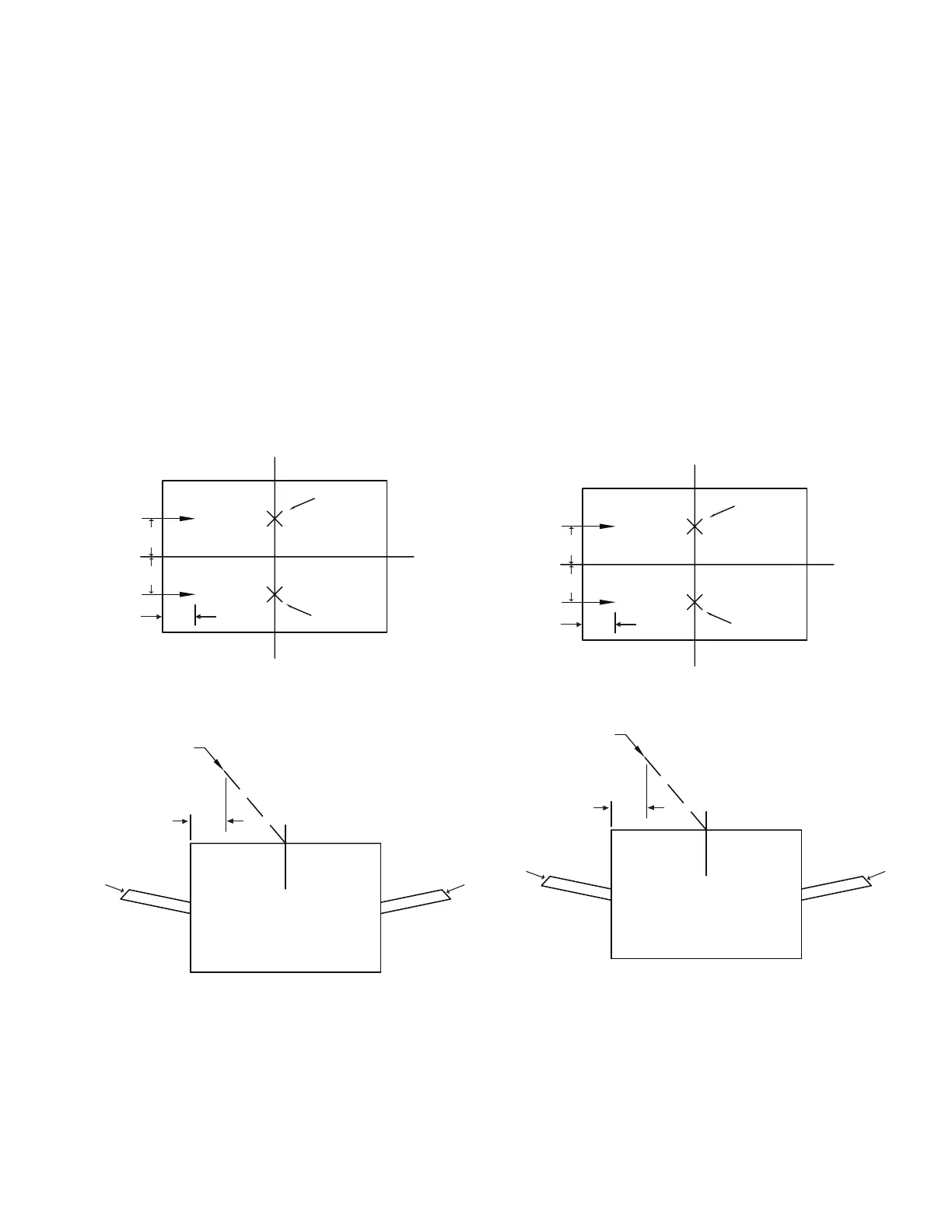

FIGURE 4-93
Nieco Broiler – Model MPB84 – Low Proximity (With
Catalytic Converter)
Nozzle Quantity/Type: Two 245 nozzles
Nozzle Height: 8 in. to 15 in. (203 mm to 381 mm) measured
from top of converter
Nozzle Location:
6.5 in. (165 mm) from front or back edge of
hazard.
First nozzle positioned 7.5 in. (190 mm) to
the right from center of hazard.
Second nozzle positioned 7.5 in. (190 mm) to
the left from center of hazard.
See Figure 4-94.
Nozzle Aiming Point: Aimed at opening on respective center
lines
008098
FRONT
BACK
245 NOZZLE
6 1/2 IN. (165 mm)
PRODUCT
INPUT
PRODUCT
OUTPUT
SIDE VIEW
FIGURE 4-94
008098
FRONT
BACK
245 NOZZLE
6 1/2 IN. (165 mm)
PRODUCT
INPUT
PRODUCT
OUTPUT
SIDE VIEW
C
C
L
FRONT
AIM POINT
245 NOZZLE
245 NOZZLE
AIM POINT
TOP VIEW
008097
7 1/2 IN.
(190 mm)
7 1/2 IN.
(190 mm)
6 1/2 IN.
(165 mm)
BACK
C
C
L
FRONT
AIM POINT
245 NOZZLE
245 NOZZLE
AIM POINT
TOP VIEW
008097
7 1/2 IN.
(191 mm)
7 1/2 IN.
(191 mm)
6 1/2 IN.
(165 mm)
BACK
SECTION 4 – SYSTEM DESIGN
UL EX3470 ULC EX3470
2014-SEP-01 REV. 11 PAGE 4-47
R-102 Restaurant Fire Suppression Manual
