SW Version 2.04 30-January-2009 Page 110 of 128
A Hardware Modules
The chassis can host a number of different functional modules. These modules can be
chosen in such a way as to optimize the overall functionality of the unit for a given
scenario.

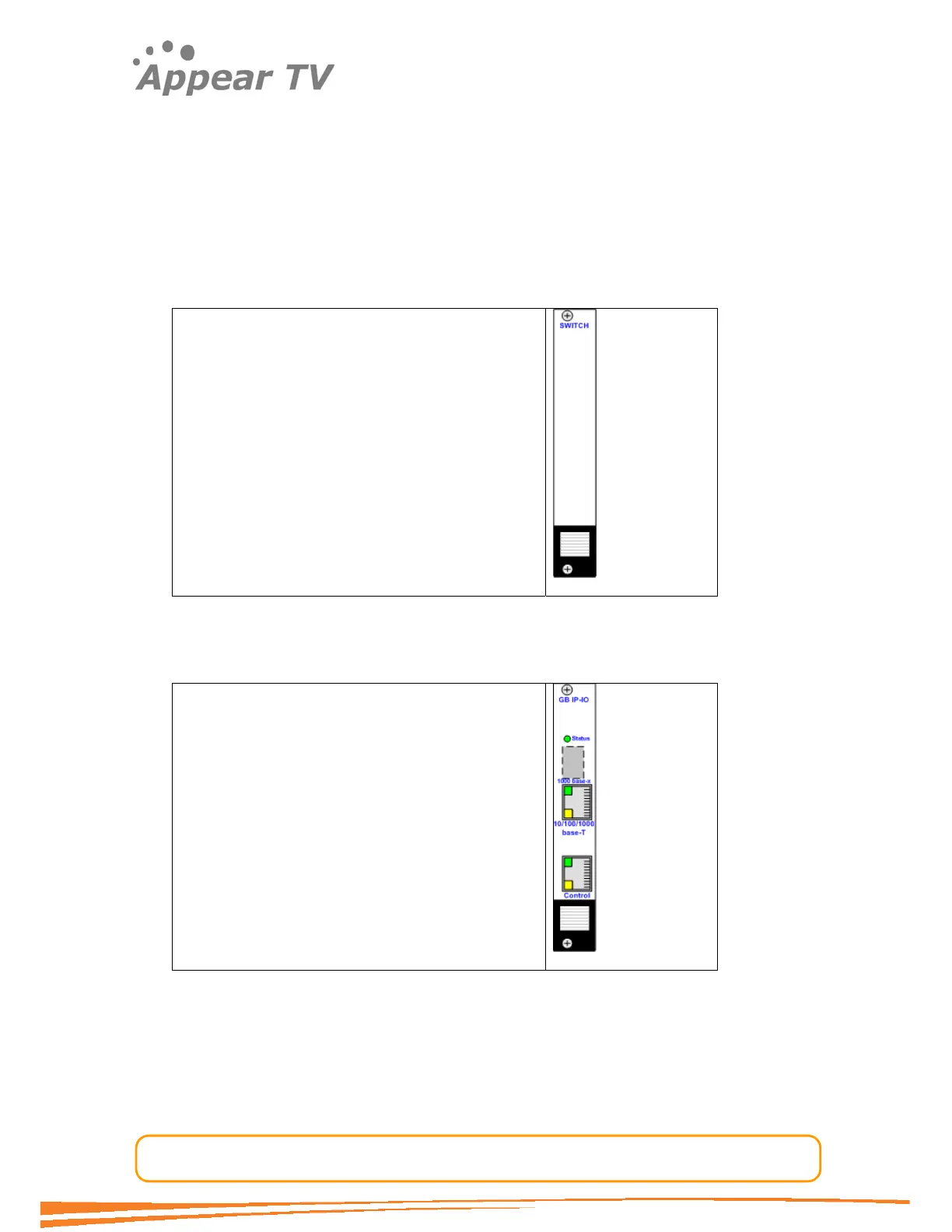

A.1 Switch Module
Function: Routing traffic between modules in the chassis (required for all
configurations)
No external connectors
1 slot wide
Must be placed in slot position 0
A.2 IP Input Module
Function: Receiving the IP input data
10/100/1000BaseT input (RJ45) for control interface
10/100/1000BaseT input (RJ45) or SFP optical input for data interface.
Only connect one interface at a time
Automatic detection of interface connected.
Supports UDP/RTP Multicast/Unicast
System status LED
1 slot wide
A.3 QPSK Receiver Module
Function: Receiving and demodulating up to 4 individual QPSK transport streams.
Optional MMI interface.
