SW Version 2.04 30-January-2009 Page 67 of 128

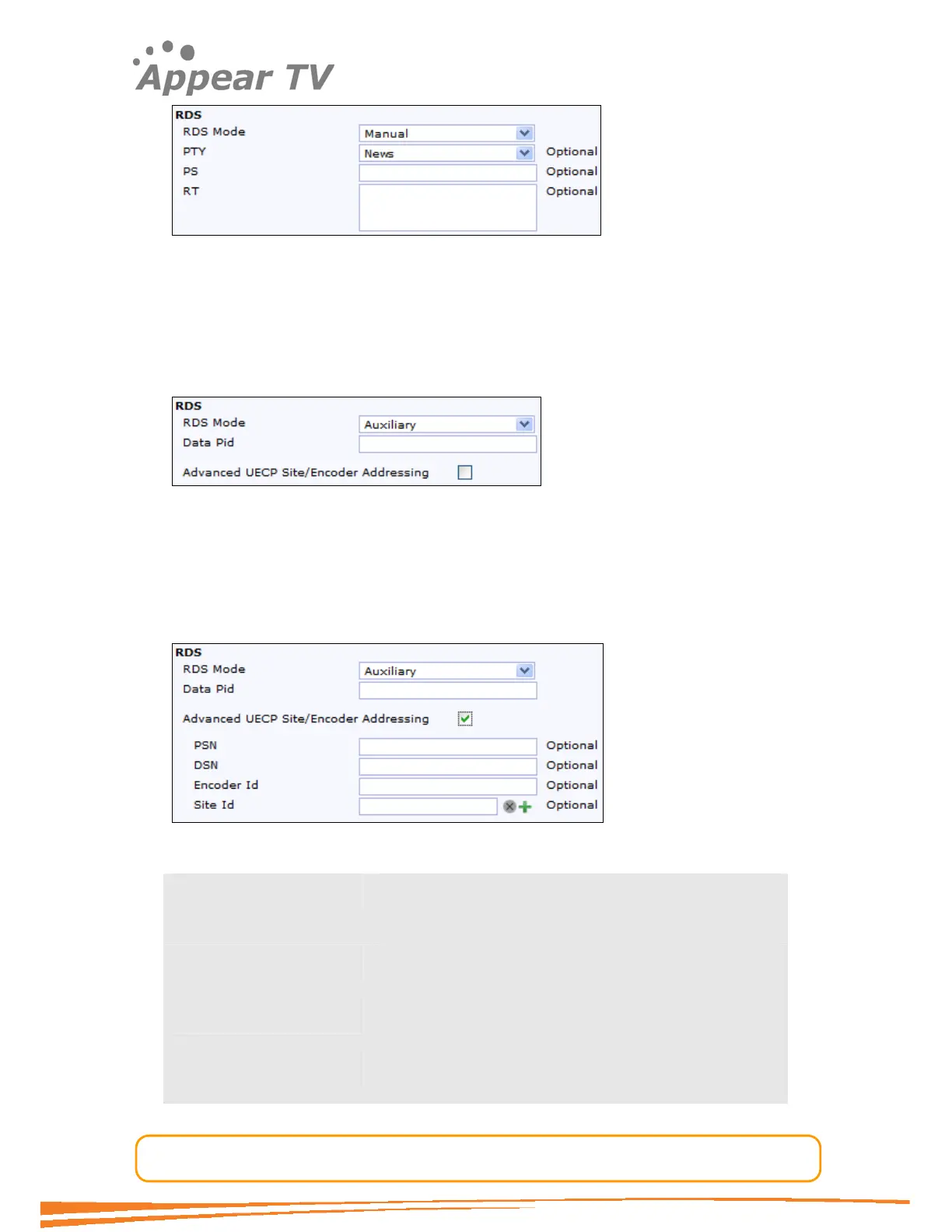

Figure 53 - Editing channel configuration
4.6.3.2 Ancillary and Auxiliary RDS
The configuration alternatives for ancillary and auxiliary RDS differs in that a data pid
may need to be specified for the auxiliary stream. When the auxiliary option is
enabled an extra parameter, Data PID, is visible on the configuration page. If a data
pid is not specified, the device will make an effort to select the pid automatically.
Figure 54 – Auxiliary RDS configuration
The Advanced UECP Site/Encoder Addressing choice enables access to UECP
data filtering settings. If the auxiliary/ancillary data only contains information about
one service this should not need to be used. If there is more than one radio service
signalled in the UECP data the following optional filtering elements can be specified to
obtain the correct RDS information.
Figure 55 – Advanced UECP addressing setup
PSN Programme Set Number: Manually select which
programme set that should be decoded from the UECP
stream.
DSN Data Set Number: Manually select which programme set
that should be decoded from the UECP stream.
Encoder Id Select the RDS encoder’s “Encoder Id”, only one encoder
id can be entered.
Site Id Select which “Site Id” this RDS encoder belongs to. The
operator can select multiple Site Ids.
