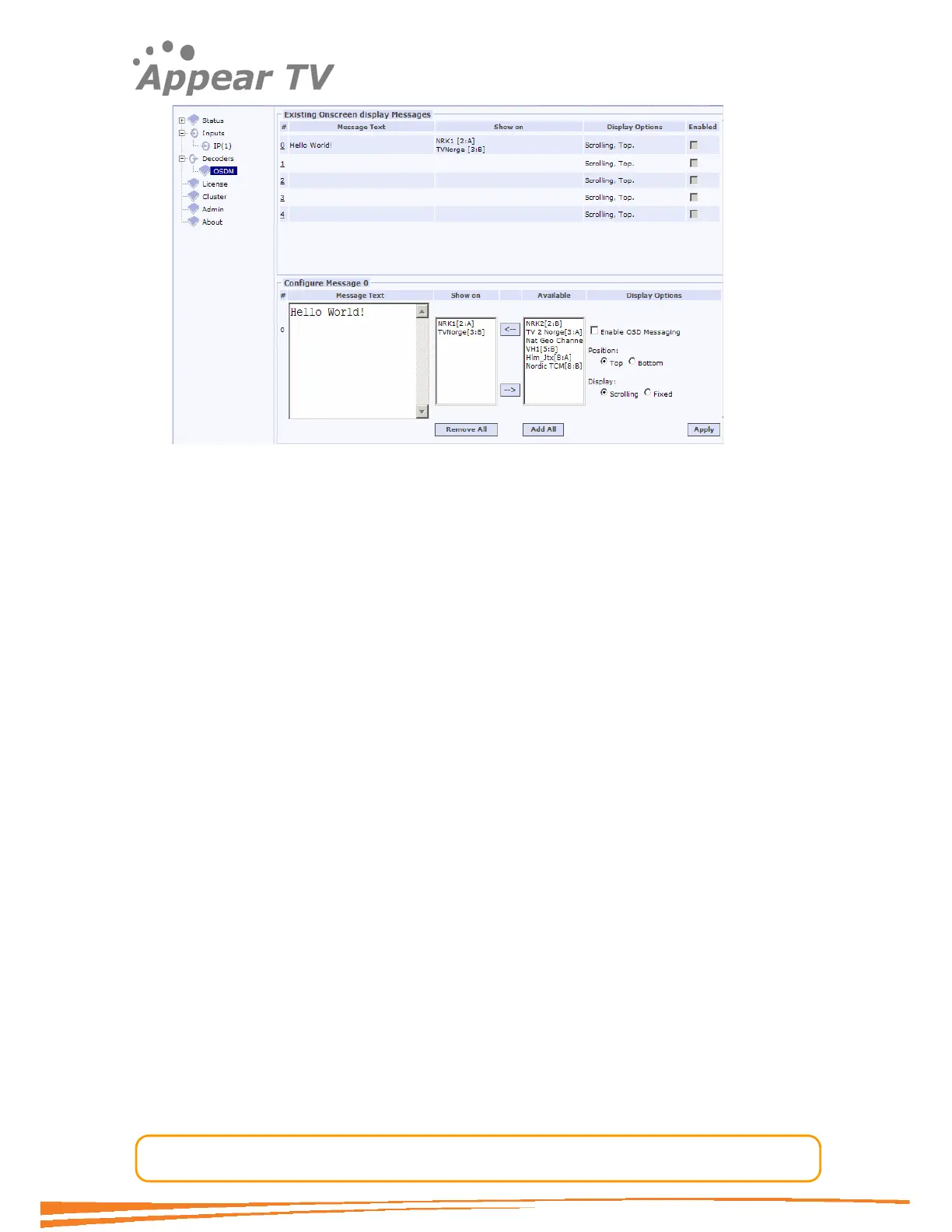

Figure 48 - Disabling OSD messages
4.6 Configuring FM Radio Output
The user interface allows for configuration at both the overall module (number of
carriers to be output by module, power level, deviation pilot tone, etc) as well as
specific service configuration (selection of services, frequency, RDS, etc). In addition,
it offers the option of configuration for redundancy.
For a quick installation, the default module configuration can be used, allowing the
operator to skip straight to the services configuration.
4.6.1 Configuring Global Parameters for a Module
To configure the global module parameters, open the FM radio sub-tree then click
Card Setup in the navigation pane. Click Edit for the module needing configuration.
This will open the FM radio settings tab, as displayed below.
To Next Page
