SW Version 2.04 30-January-2009 Page 63 of 128

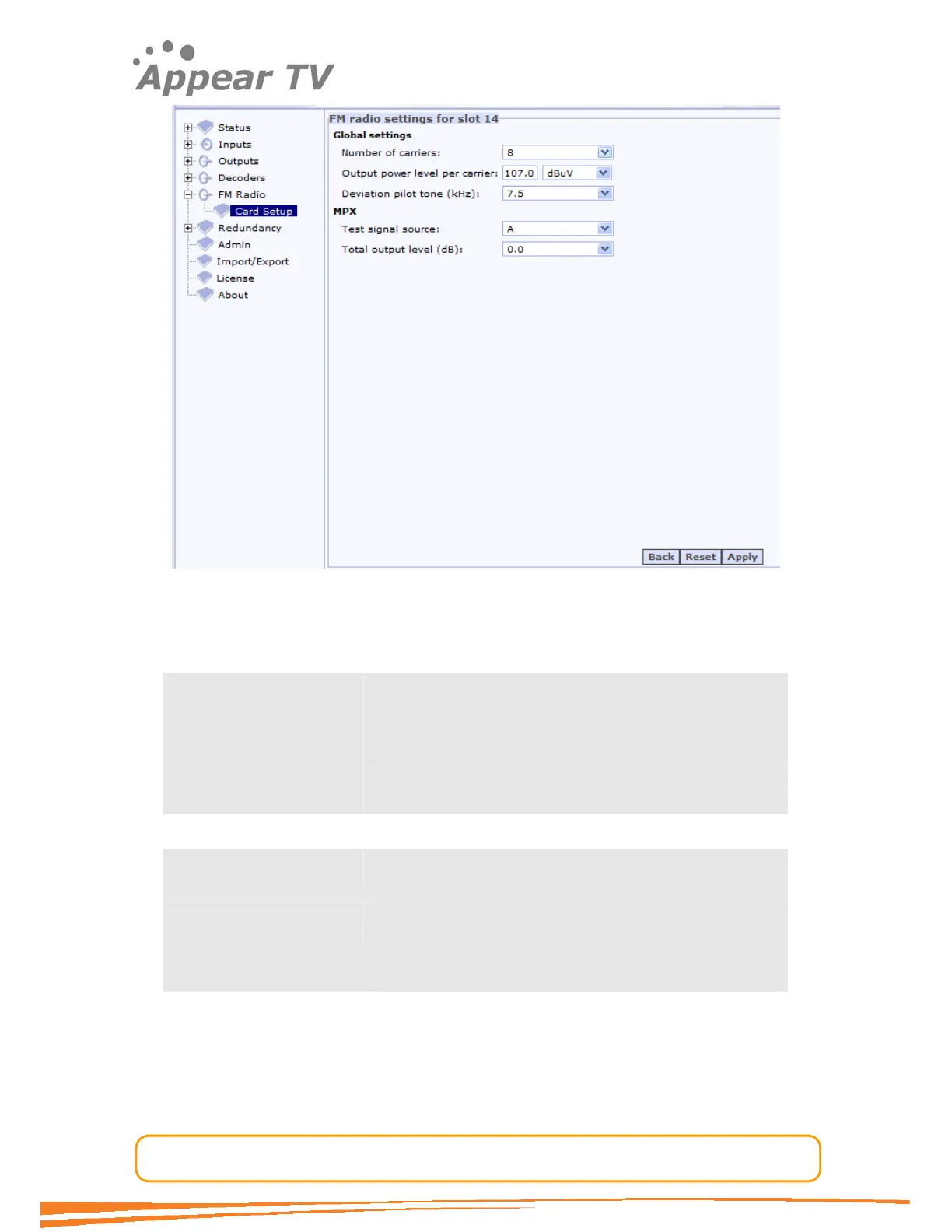

Figure 49 - The configuration screen for the FM radio module
The FM radio settings interface displays the following values in the global settings
section:
Number of carriers Configuration options include 1, 2, 4 or 8 carriers.
Output power level per
carrier
Default is 107.0 dBuV. Can be expressed in dBuV,
dBmV, dBm
Deviation pilot tone
(kHz)
Range is 1.0 kHz to 12.0 kHz. Default value is 7.5 kHz.
The FM radio settings interface displays the following values in the MPX section:
Test signal source The port number of the test signal source. The default is
A.
Total output level (dB) The sum of the output levels in dB of individual carriers.
Valid adjustment is from 6.0 dB to -6.0 dB, with a
default of 0.0 dB. Please note that the range of values
changes with the number of carriers.
Please note the need to reset the power level following any changes in the number of
carriers to ensure the total power level is appropriate.
To accept configuration changes click Apply. Click Back to configure settings for
cards in other slots.
