Appear TV SC2000 - Cofdm Input Module; Descrambler Module

SW Version 2.04 30-January-2009 Page 112 of 128
 4xQAM inputs
 F connector
 0.87-6.9 Ms/s
 Supports reception of MPTS and SPTS
 Service filtering
 PCR regeneration
 ASI Monitoring port
 10/100/1000BaseT management port (RJ45)
 Enables WEB management
 2 slots wide
A.6 COFDM Input Module
Function: Receiving a DVB-T modulated transport stream. Optional MMI interface.
 4xCOFDM inputs
 F connector
 1/2, 2/3, 3/4, 5/6, 7/8 FEC
 2k and 8k carrier mode
 QPSK, 16QAM, 64QAM modulation
 Supports reception of MPTS and SPTS
 Service filtering
 PCR regeneration
 ASI Monitoring port
 10/100/1000BaseT management port (RJ45) Enables WEB
management
 2 slots wide

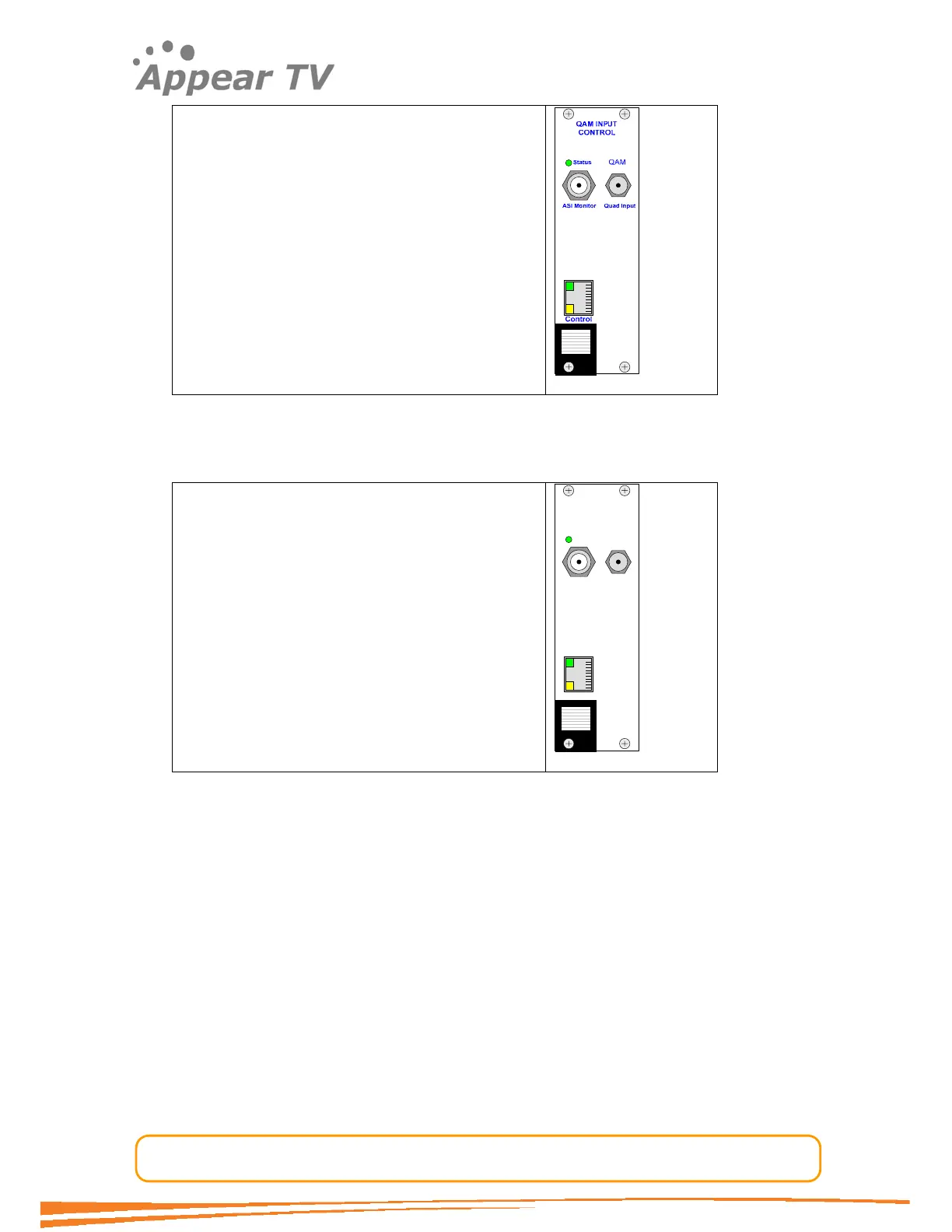

COFDM INPUT
CONTROL
Status
Control
COFDM
ASI Monitor Quad Input
A.7 Descrambler Module
Function: Descrambling of incoming services
