SW Version 2.04 30-January-2009 Page 30 of 128

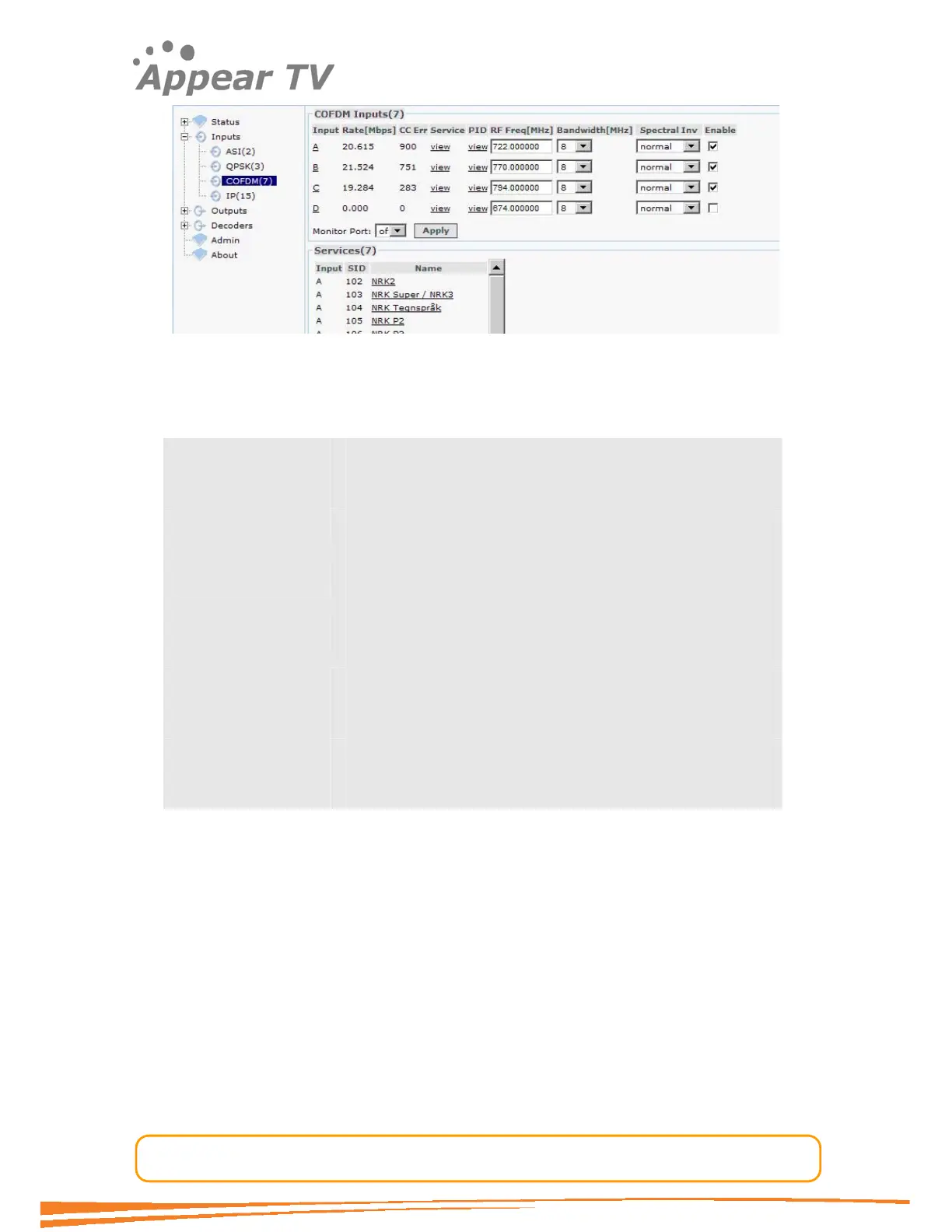

Figure 19 - COFDM input
The COFDM input window shows all configurable settings as well as the current bit
rate and service information. The following parameters are available:
Input Shows the port on the ASI input module
Rate[Mbps] Shows the incoming data rate
CC Err Bit Error Rate is a quality indication of the input signal. No
input signal will display "no sync".
Service Filtering of the displayed service information. Shows only
the services available from the selected input port
PID Packet Identifier. Shows all available PIDs from the
selected input port
RF Freq [MHz] Set the QAM frequency in MHz
Bandwidth [MHz] Choose the bandwidth to be 6, 7 or 8 MHz
Spectral Inv Set the Spectral Inversion to Normal or Inverted.
Enable Enable the corresponding input port
Save the settings by clicking the Apply button
The status parameters for the COFDM module are shown in figure below. Click on the
letter representing the input channel (A, B, C or D) to display the status parameters
for the specific input port.
