SW Version 2.04 30-January-2009 Page 3 of 128

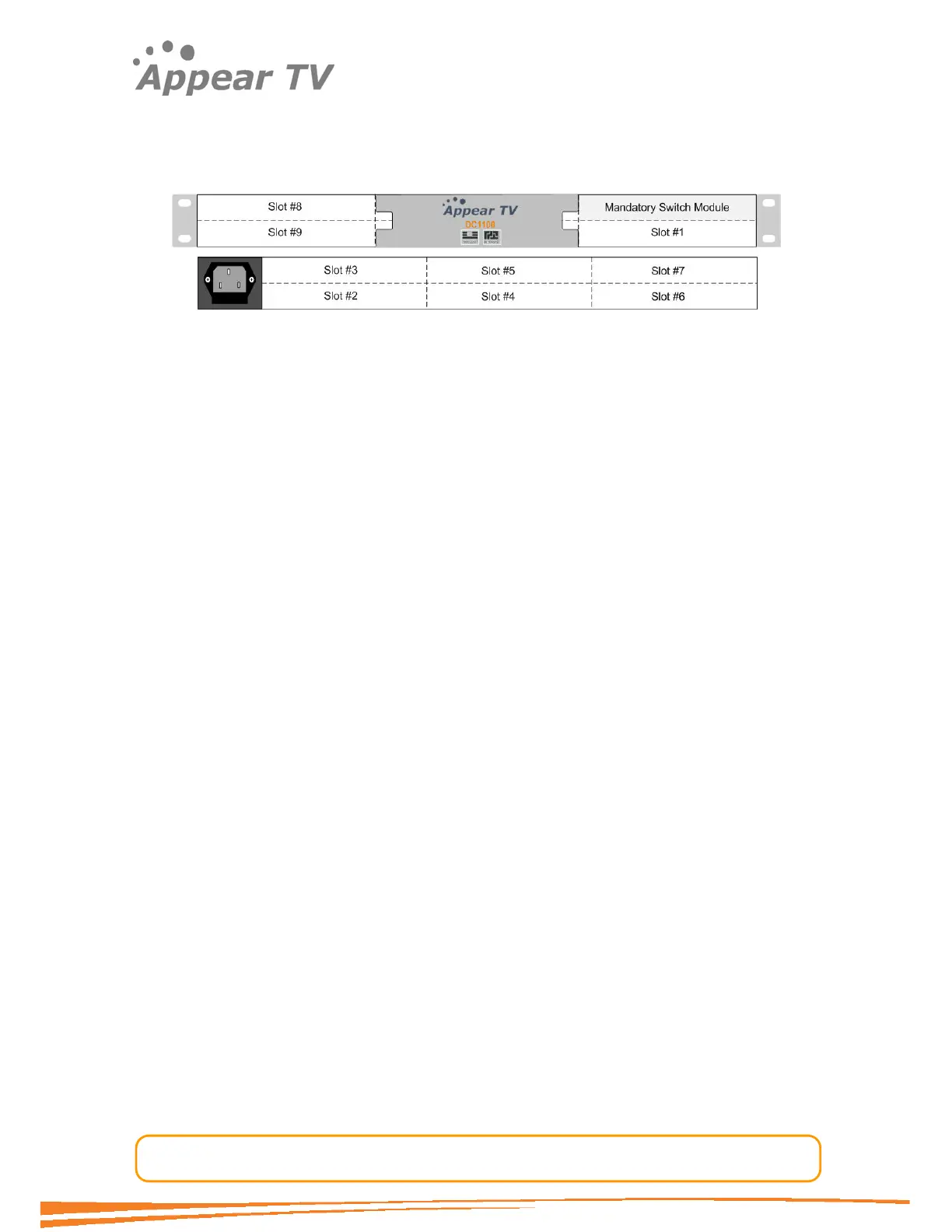

Front and rear view of the 1 RU chassis including a mandatory switch module, power
supply connectors, and module slots is shown in Figure 2.
Figure 2 - 1RU chassis with power connector, switch module and available slots; front and rear
view.
A full list of available modules is included in Appendix A.
