ASE2000 V2 Communication Test Set User Manual 104
20. BCOM-USB Device Guide
20.1. BCOM-USB Overview
BCOM-USB is a 2-channel, serial RS-232 device that connects to a PC through a USB port.
This device is intended to be used with the ASE2000 Communication Test Set and replace
the BCOM-PCMCIA board which, due to the eventual obsolescence of the PCMCIA/CardBus
interface on PCs may not be usable on newer PCs. In addition to handling the traditional byte
oriented protocols such as DNP3, Modbus, IEC 870-5-101, etc. the BCOM-USB will also handle
bit-oriented protocols such as Conitel 2020, CDC Type I and II, as well as SDLC/HDLC protocols.
Please see the ASE web site at http://www.ase-systems.com/DNP-3-protocol/DNP-3.asp for a
complete list of supported protocols.
20.2. BCOM-USB Device Description

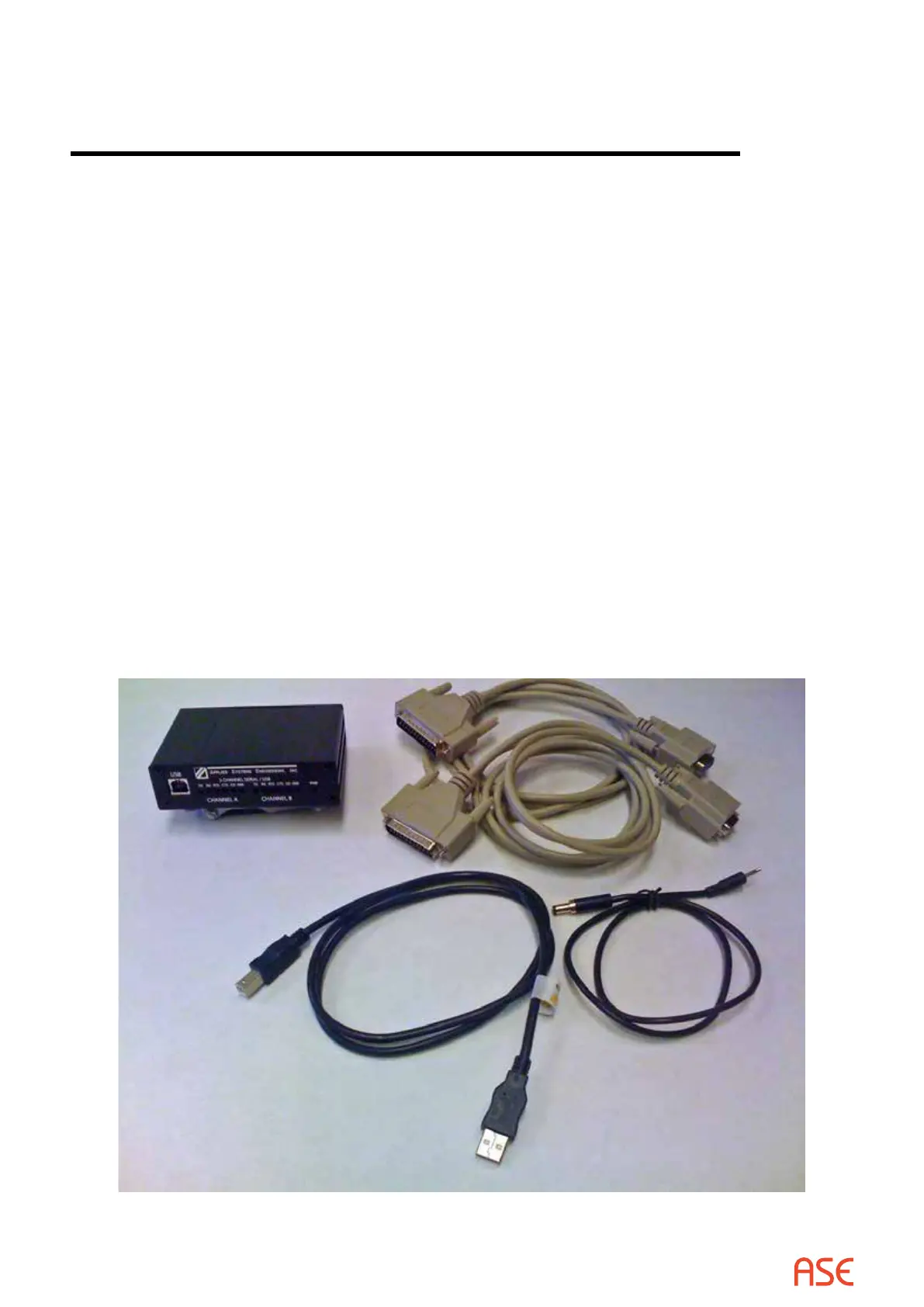

The BCOM-USB device kit consists of the following items:
• 2-channel BCOM-USB device
• Two DB-9 Female / DB-25 Male Cables
• 6’ USB Cable with standard A / B connectors
• 6’ Power cable to power the ASE 2-channel Bell-202 test set modem
