26.4.2. DNP3 – Simulation Sub-Tab (Task Mode – Serial and LAN/WAN)

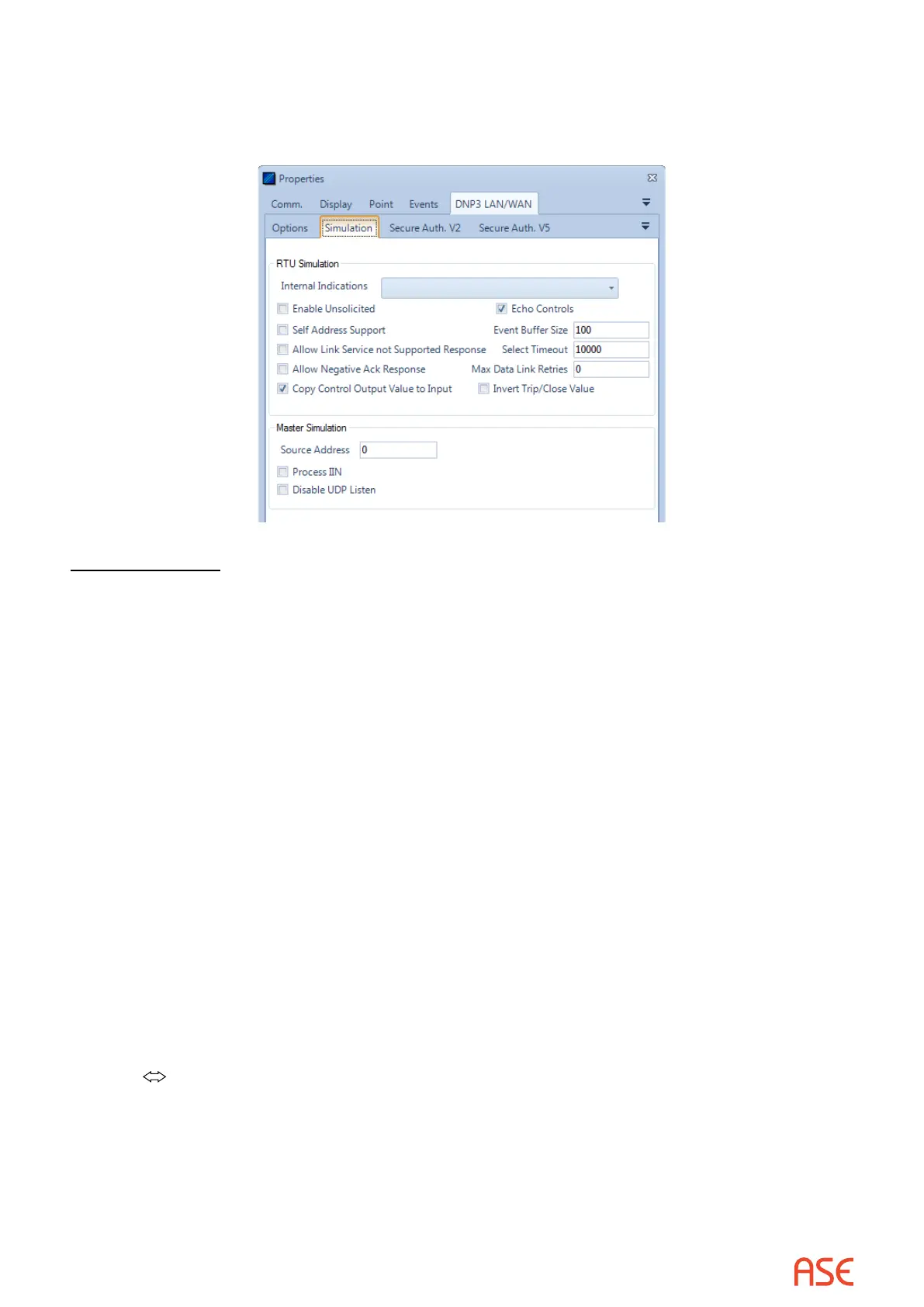

Both RTU and Master Simulation options are shown in the following Simulation sub-tab menu for
DNP3 protocols in Task Mode.
RTU Simulation
Self Address Support – Respond to requests for RTU transmission of its address
Allow Link Service not Supported Response – Allows Link Service not Supported Response,
otherwise NAK is set
Allow Negative Ack Response – Enables unsolicited data reporting in RTU Simulation mode.
When enabled, all input object messages with the Transmit ag checked are transmitted at the
congured frequency
EventBu󰀨erSize – Congure the number of events stored in the event bu󰀨er
Select Timeout – Time in milliseconds before RTU reports a timeout
Max Data Link Retries – Number of data link retries before terminating
Copy Control Output Value to Input – When enabled, control operation data values received
from the master station are copied to their mapped input points. This feature assists testing of
master station reaction to di󰀨erent RTU input data without reconguring the RTU points list (see
below for mapping instructions)
Invert Trip/Close Value – This option inverts the value for Copy Control Output mappings such
that Trip Close are reversed (see below for mapping instructions)
Master Simulation
Source Address – The source address selects a specic RTU Id for processing Internal Indication
ags (see below)
