From the Exchange view, right-click on the line containing the Scan exchange and select Edit
Exchange Denition. Under the “To Master” section, select the element “Points: Digital: 1 block”,
select “Add Element”, select “Analog”, then OK. Expand the updated element and change the
repeat count to 8. This indicates 8 “blocks” of Analog points, one point per block. Click OK.

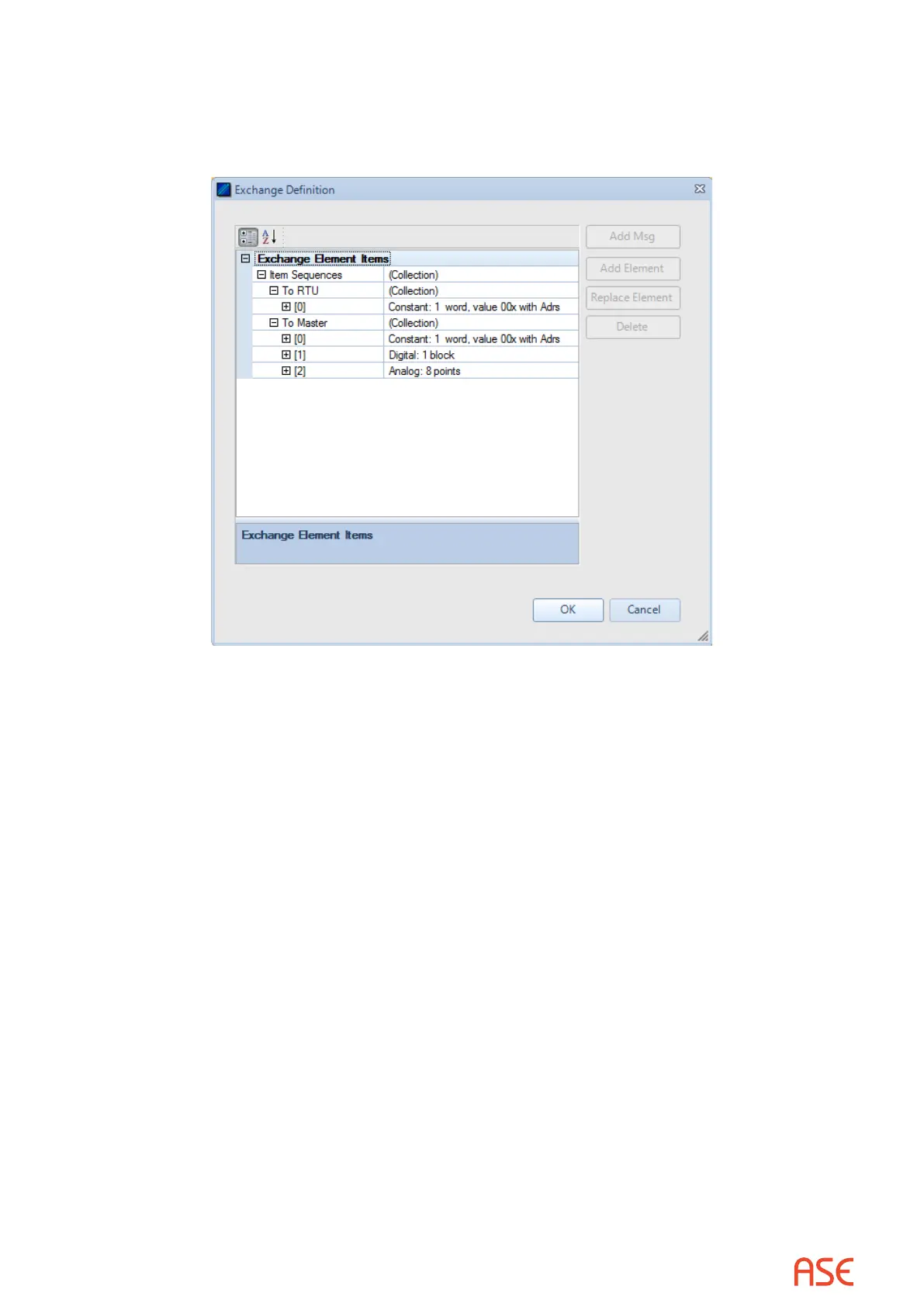

The modied Exchange Denition for 16 Digital and 8 Analog points is shown above.
Since the Scan 2 command returns only digital points, only the digital point information would be
congured in the Scan 2 Exchange Denition.
23.1.2. CDC Type I – Set RTU ID and Group
The RTU ID and Group number can be set for all exchanges from the Protocol > Properties
display or individually on the Exchange List view.
23.1.3. CDC Type I – Exchange Mode Line Monitor
No additional setup is required. If cabling is correct Line Monitoring can be started by selecting
the Start button.
23.1.4. CDC Type I – Exchange Mode Master Simulation
If the Communication Properties, Exchange Denition, RTU ID, and Group number have been
congured, Master Simulation operations can be performed. No additional setup is required.
23.1.5. CDC Type I – Exchange Mode RTU Simulation
If the Communication Properties, Exchange Denition, RTU ID, and Group number have been
congured, RTU Simulation operations can be performed. No additional setup is required.
